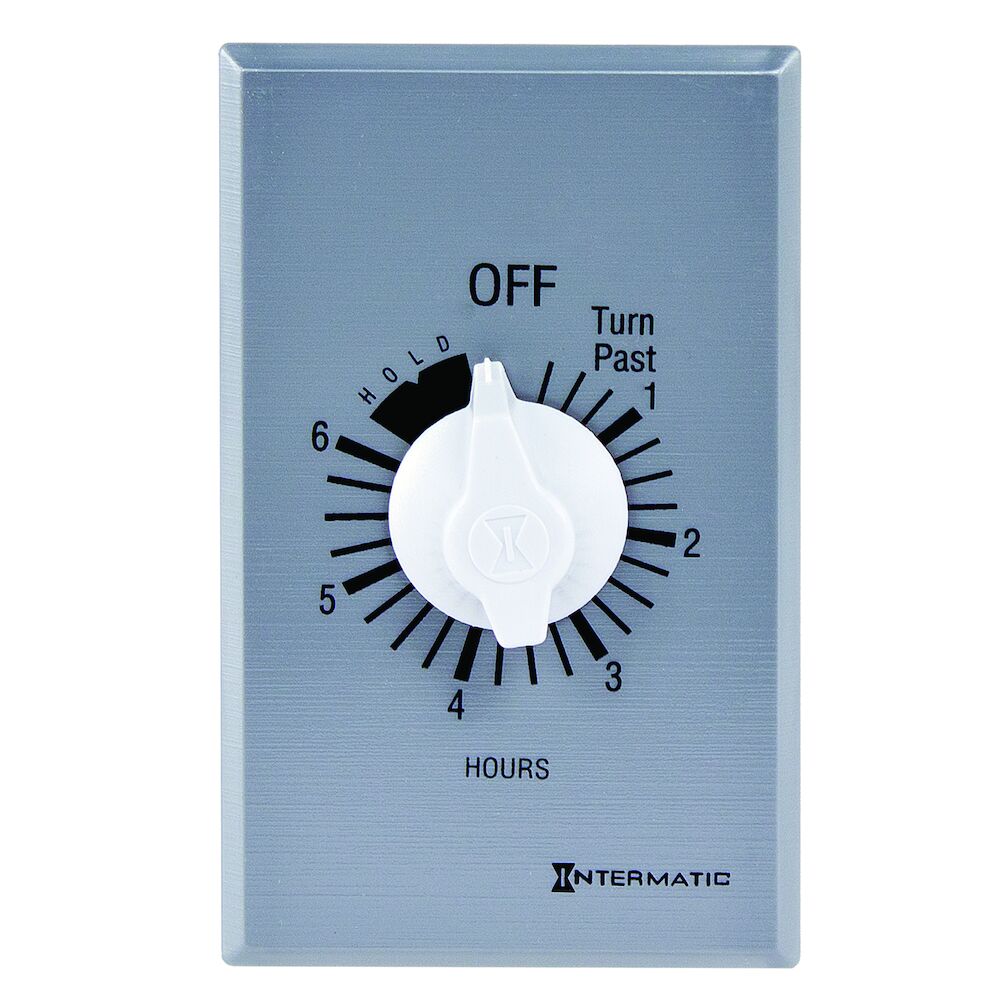

6 Hour 125-277 V SPST w/ Hold For Continuous Duty
SKU490014
MFGR #FF6HH
Your Cost: $71.31/ea
List: The FF series commercial countdown timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial brushed metal look plate (plastic construction) meets NEC requirements.
The FF series commercial countdown timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial brushed metal look plate (plastic construction) meets NEC requirements.
Action 1 x SPST Amperage Rating 15 A Application Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR ARRA Compliant N Buy American Compliant N Catalog Number FF6HH Connection Teeter Type Contact Configuration 1 NO Contact Rating 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive) Country of Origin TN Currency USD Environmental Conditions Indoor EU RoHS Indicator X Frequency Rating 50/60 Hz Gross Weight Per Pack 2.3000 lb Gross Weight per Pack Metric 0.17 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9107008000 Height 4.63 in Height [Metric] 11.7602 cm Length 2.90 in Length [Metric] 7.3660 cm Motor Power 1 HP 120 VAC, 2 HP 240 VAC Mounting Wall Mount Number Of Poles 1 Operating Temperature -40 F to 155 F (-40 C to 68 C) Size 2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM Standard cCSAus Certified, UL Listed, UL Recognized, HVACR, NEC Standards cCSAus Certified, HVACR, NEC, RoHS certified, UL Listed, UL Recognized Timer Duration 6 hr Timing Range 6 hr Type Commercial Spring Wound Auto-Off UNSPSC 39122208 UPC 11 07827518419 UPC 12 07827518419 Width 2.10 in Width [Metric] 5.3340 cm Stock Status NONSTOCK Brand Intermatic® Manufacturer Intermatic Incorporated Voltage Rating 125 to 277 VAC Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR Features: Energy-Efficient Mechanical Timers do not require Electricity to Operate, Automatically Limit the ON Times, Hold Feature Enables User to Override the Automatic Shut-Off Function, Rugged Time Dial Plate Easily withstands the Abuse Encountered in Commercial Environments, Commercial "Brushed Metal" (Plastic Construction) look meets NEC Requirements, Press-On Knob Design Ensures Quick and Easy Installation, CFL Compatible, Provide Direct Replacement of a Standard Wall Switch in a Single Gang 2-1/2 IN Deep Junction Boxes, Spiral Time Scale to Provide Easy Selection of the Time Setting, Standard Industry Accepted Molded Plate and Knob, Secure Teeter-Type Terminal, 1 Year Warranty Commercial auto-off timer Supplied time dial plates are designed to fit either toggle (FF) or decorator style (FD) switch plates Single or multi-gang with no field modifications required Time saving up front terminal connection with teeter-type terminals Energy-efficient mechanical timers do not require electricity to operate Automatically limit the ON times Incandescent/fluorescent/CFL/LED compatible Provide direct replacement of a standard wall switch in a single gang 2-1/2 in deep junction boxes Spiral time scale to provide easy selection of the time setting Standard industry accepted molded plate and knob Press-on knob design ensures quick and easy installation Rugged time dial plate easily withstands the abuse encountered in commercial environments 7 A at 125 VAC (tungsten), 20 A at 125 VAC, 10 A at 250/277 VAC (resistive) 1 hp at 120 VAC, 2 hp at 240 VAC 50/60 Hz Hold feature enables user to override the automatic shut-off function Brushed metal finish
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | 1 x SPST |
| Amperage Rating | 15 A |
| Application | Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | FF6HH |
| Connection | Teeter Type |
| Contact Configuration | 1 NO |
| Contact Rating | 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive) |
| Country of Origin | TN |
| Currency | USD |
| Environmental Conditions | Indoor |
| EU RoHS Indicator | X |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 2.3000 lb |
| Gross Weight per Pack Metric | 0.17 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9107008000 |
| Height | 4.63 in |
| Height [Metric] | 11.7602 cm |
| Length | 2.90 in |
| Length [Metric] | 7.3660 cm |
| Motor Power | 1 HP 120 VAC, 2 HP 240 VAC |
| Mounting | Wall Mount |
| Number Of Poles | 1 |
| Operating Temperature | -40 F to 155 F (-40 C to 68 C) |
| Size | 2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM |
| Standard | cCSAus Certified, UL Listed, UL Recognized, HVACR, NEC |
| Standards | cCSAus Certified, HVACR, NEC, RoHS certified, UL Listed, UL Recognized |
| Timer Duration | 6 hr |
| Timing Range | 6 hr |
| Type | Commercial Spring Wound Auto-Off |
| UNSPSC | 39122208 |
| UPC 11 | 07827518419 |
| UPC 12 | 07827518419 |
| Width | 2.10 in |
| Width [Metric] | 5.3340 cm |
| Stock Status | NONSTOCK |
| Brand | Intermatic® |
| Manufacturer | Intermatic Incorporated |
| Voltage Rating | 125 to 277 VAC |
| Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR |
| Features: Energy-Efficient Mechanical Timers do not require Electricity to Operate, Automatically Limit the ON Times, Hold Feature Enables User to Override the Automatic Shut-Off Function, Rugged Time Dial Plate Easily withstands the Abuse Encountered in Commercial Environments, Commercial "Brushed Metal" (Plastic Construction) look meets NEC Requirements, Press-On Knob Design Ensures Quick and Easy Installation, CFL Compatible, Provide Direct Replacement of a Standard Wall Switch in a Single Gang 2-1/2 IN Deep Junction Boxes, Spiral Time Scale to Provide Easy Selection of the Time Setting, Standard Industry Accepted Molded Plate and Knob, Secure Teeter-Type Terminal, 1 Year Warranty |
| Commercial auto-off timer |
| Supplied time dial plates are designed to fit either toggle (FF) or decorator style (FD) switch plates |
| Single or multi-gang with no field modifications required |
| Time saving up front terminal connection with teeter-type terminals |
| Energy-efficient mechanical timers do not require electricity to operate |
| Automatically limit the ON times |
| Incandescent/fluorescent/CFL/LED compatible |
| Provide direct replacement of a standard wall switch in a single gang 2-1/2 in deep junction boxes |
| Spiral time scale to provide easy selection of the time setting |
| Standard industry accepted molded plate and knob |
| Press-on knob design ensures quick and easy installation |
| Rugged time dial plate easily withstands the abuse encountered in commercial environments |
| 7 A at 125 VAC (tungsten), 20 A at 125 VAC, 10 A at 250/277 VAC (resistive) |
| 1 hp at 120 VAC, 2 hp at 240 VAC |
| 50/60 Hz |
| Hold feature enables user to override the automatic shut-off function |
| Brushed metal finish |
