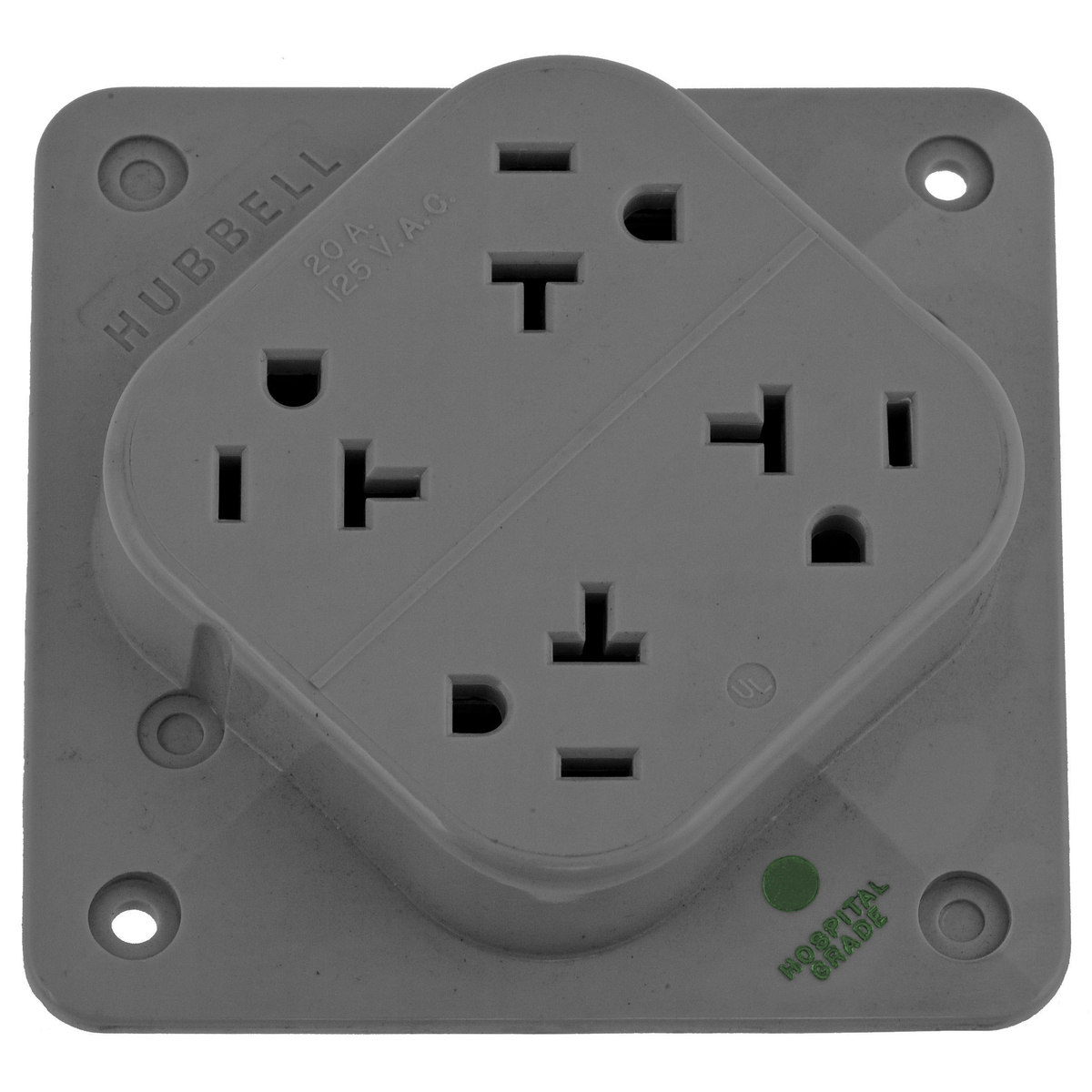

4-PLEX HG RCPT, 20A 125V, 5-20R, GY
SKU135959
MFGR #HBL420HGY
Your Cost: $48.71/ea
Wiring Device-Kellems 4-PLEX® Straight Blade Receptacle, 4-in-1 Grounding Standard, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Hospital Grade, -40 to 75 deg C, Back Wired/Screw Terminal, Polycarbonate, Gray, 4.3 in H x 4.3 in W x 0.92 in D
Wiring Device-Kellems 4-PLEX® Straight Blade Receptacle, 4-in-1 Grounding Standard, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Hospital Grade, -40 to 75 deg C, Back Wired/Screw Terminal, Polycarbonate, Gray, 4.3 in H x 4.3 in W x 0.92 in D
Application 4-Plex Hospital Grade ARRA Compliant C Buy American Compliant C Catalog Number HBL420HGY Connection Back Wired Screw Terminals Country of Origin PR Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 4.3 in H x 4.3 in W x 0.92 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Grade Hospital Gross Weight Per Pack 0.4000 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 1 hp Length 4.50 in Length [Metric] 11.4300 cm Material Polycarbonate Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable N Size 4.3 in x 4.3 in x 0.92 in Standard Certified to CSA, C22.2, No. 42 File 285;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedNEMA WD1/WD5UL 498, 94-V2 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back Wired/Screw Type 4-PLEX Receptacle UNSPSC 39121406 UPC 11 78358531068 UPC 12 783585310688 Wattage 2,500 W Width 4.50 in Width [Metric] 11.4300 cm Wire Size #12 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Gray Number of Wires 3 Voltage Rating 125 VAC 4-Plex Hospital Grade
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | 4-Plex Hospital Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL420HGY |
| Connection | Back Wired Screw Terminals |
| Country of Origin | PR |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 4.3 in H x 4.3 in W x 0.92 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Grade | Hospital |
| Gross Weight Per Pack | 0.4000 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 1 hp |
| Length | 4.50 in |
| Length [Metric] | 11.4300 cm |
| Material | Polycarbonate |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | N |
| Size | 4.3 in x 4.3 in x 0.92 in |
| Standard | Certified to CSA, C22.2, No. 42 File 285;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedNEMA WD1/WD5UL 498, 94-V2 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back Wired/Screw |
| Type | 4-PLEX Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358531068 |
| UPC 12 | 783585310688 |
| Wattage | 2,500 W |
| Width | 4.50 in |
| Width [Metric] | 11.4300 cm |
| Wire Size | #12 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Gray |
| Number of Wires | 3 |
| Voltage Rating | 125 VAC |
| 4-Plex Hospital Grade |
| High impact resistant Polycarbonate construction |
| Anchor hole and loop feature secures solid wire for fast, easy terminations |
| Easily accessible break-off tabs for split wiring |
| Three conductors energize all four outlets |
| Triple wipe contacts |
| High impact resistant polycarbonate construction |
| Polycarbonate base material |
| 8 to 32 brass, multiple drive |
