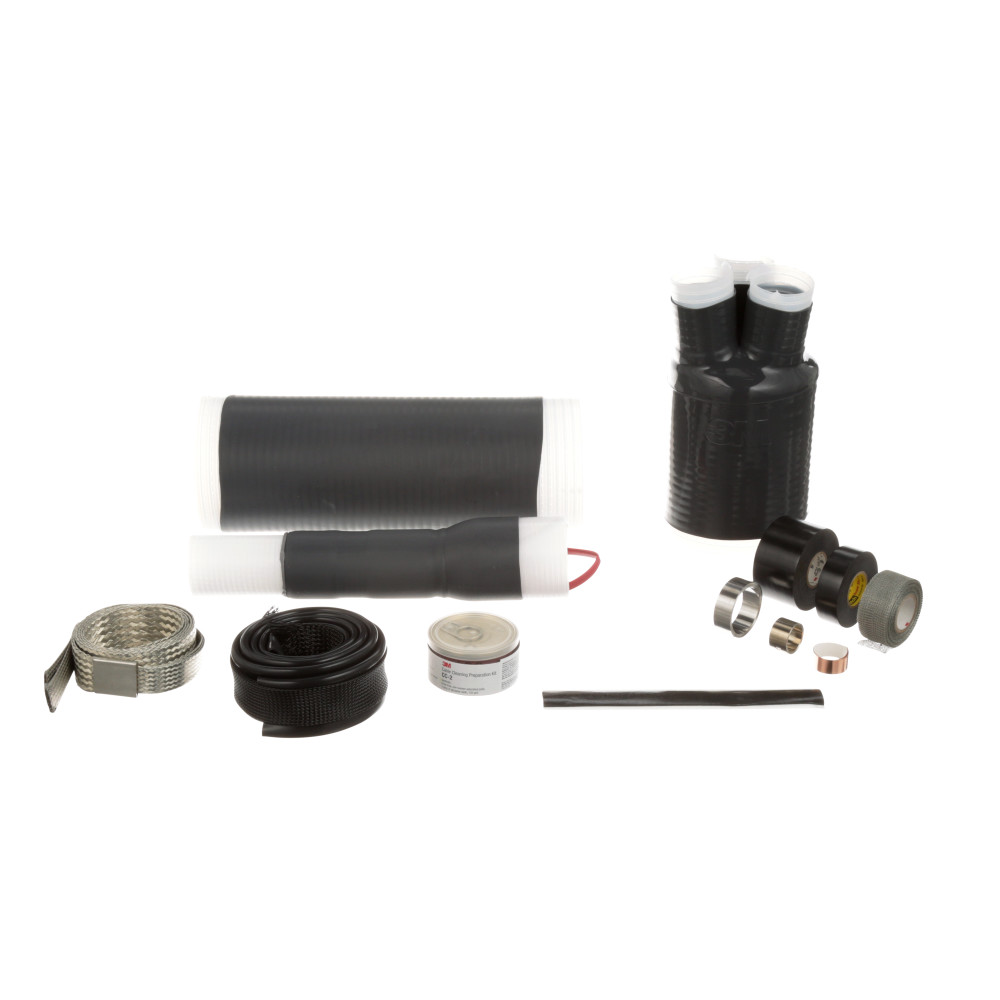

3M™ 7624-T-95-3G 7600-T-3G Cold Shrink QT-III Termination Kit, 3, Silicone Rubber, Black
Custom_Product_Images_Illustration
3M™ 7624-T-95-3G 7600-T-3G Cold Shrink QT-III Termination Kit, 3, Silicone Rubber, Black
SKU860774
MFGR #7000031772
$/ea
3M™ Cold Shrink QT-III 7600-T-3G Series Termination Kit includes a non-skirted, 3-phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The silicone rubber sealing compounds allow the termination to withstand voltages of 5 - 35 kV.
3M™ Cold Shrink QT-III 7600-T-3G Series Termination Kit includes a non-skirted, 3-phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The silicone rubber sealing compounds allow the termination to withstand voltages of 5 - 35 kV.
Alternate Catalog Number 7624-T-95-3G Application INDOOR ARRA Compliant X Buy American Compliant X Cable Type Tape Shield; UniShield(R); Wire Shield Catalog Number 7000031772 Conductor Size 400 kcmil; 500 kcmil Country of Origin US Currency USD EU RoHS Indicator C Expiry|Spoilage Date Applicable Indicator Y Gross Weight Per Pack 4.0000 lb Gross Weight per Pack Metric 1.81 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8546900000 Height 9.20 in Height [Metric] 23.3680 cm Length 25.96 in Length [Metric] 65.9384 cm Material Composition Declaration Contact 3M for information Number Of Pieces 3 Number Of Terminals 3 Returnable Y Series 7600-T-3G Specifications 5 kV, 8 kV, 95 kV BIL-Rated, 0.92 to 1.18 in OD Cable Insulation, 8-1/2 in Max Installed Length, 400 kcmil, 500 kcmil Conductor Size, Standard IEEE Standards ARRA CompliantBuy American Act CompliantRoHS CompliantIEEE Certified Type Cold Shrink QT-III UNSPSC 39120000 UPC 11 05400743667 UPC 12 054007436676 Voltage Rating 5,000/8,000 V Width 12.13 in Width [Metric] 30.8102 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Color Black Material Silicon Rubber Suitable For Use With Three Core Tape Shield, Wire Shield and UniShield® Cable Indoor Provides a void free seal to tape shield, wire shield and UniShield® power cables High dielectric constant material regulates the distribution of electric field stress Silicone rubber insulation offers durability and reduces leakage currents in damp conditions UniShield®, wire shield, tape shield shielding type Conductor size by voltage (5 kV, 100%) 400 to 500 kcmil, (5 kV, 133%) 400 to 500 kcmil, (8 kV, 100%) 400 to 500 kcmil, 8 kV, 133%) 400 to 500 kcmil 3 terminal 3 terminals
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 7624-T-95-3G |
| Application | INDOOR |
| ARRA Compliant | X |
| Buy American Compliant | X |
| Cable Type | Tape Shield; UniShield(R); Wire Shield |
| Catalog Number | 7000031772 |
| Conductor Size | 400 kcmil; 500 kcmil |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | C |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Gross Weight Per Pack | 4.0000 lb |
| Gross Weight per Pack Metric | 1.81 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8546900000 |
| Height | 9.20 in |
| Height [Metric] | 23.3680 cm |
| Length | 25.96 in |
| Length [Metric] | 65.9384 cm |
| Material Composition Declaration | Contact 3M for information |
| Number Of Pieces | 3 |
| Number Of Terminals | 3 |
| Returnable | Y |
| Series | 7600-T-3G |
| Specifications | 5 kV, 8 kV, 95 kV BIL-Rated, 0.92 to 1.18 in OD Cable Insulation, 8-1/2 in Max Installed Length, 400 kcmil, 500 kcmil Conductor Size, |
| Standard | IEEE |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantIEEE Certified |
| Type | Cold Shrink QT-III |
| UNSPSC | 39120000 |
| UPC 11 | 05400743667 |
| UPC 12 | 054007436676 |
| Voltage Rating | 5,000/8,000 V |
| Width | 12.13 in |
| Width [Metric] | 30.8102 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Color | Black |
| Material | Silicon Rubber |
| Suitable For Use With | Three Core Tape Shield, Wire Shield and UniShield® Cable |
| Indoor |
| Provides a void free seal to tape shield, wire shield and UniShield® power cables |
| High dielectric constant material regulates the distribution of electric field stress |
| Silicone rubber insulation offers durability and reduces leakage currents in damp conditions |
| UniShield®, wire shield, tape shield shielding type |
| Conductor size by voltage (5 kV, 100%) 400 to 500 kcmil, (5 kV, 133%) 400 to 500 kcmil, (8 kV, 100%) 400 to 500 kcmil, 8 kV, 133%) 400 to 500 kcmil |
| 3 terminal |
| 3 terminals |
