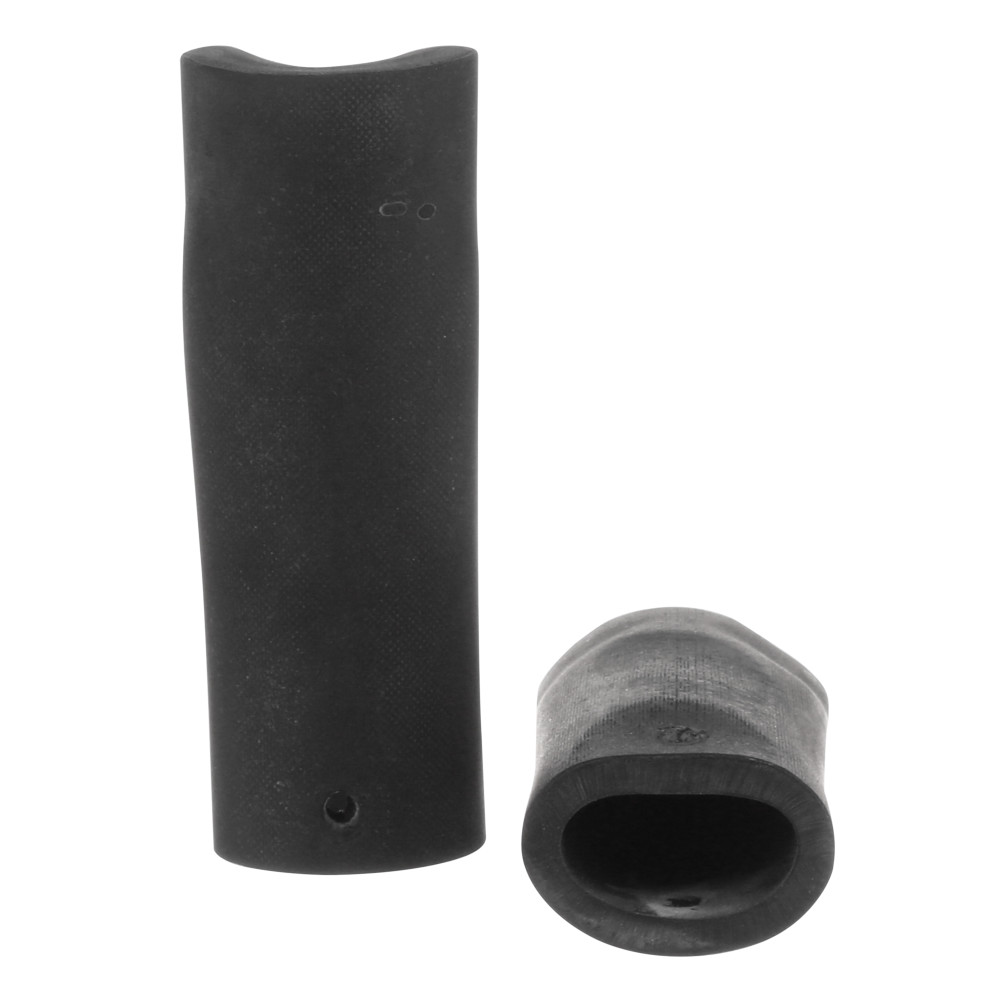

3M™ 5302 Motor Lead Splicing Kit (3 splices/kit)
Insulated Splice Kit, Low Voltage (below 5 KV)
5728
MFG #: 7000005806
3M™
114.05000
/ ea
3M 5300 Series Motor Lead Pigtail Splice Kit is perfect to use with copper compression, 1-hole lugs. It is designed to splice motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000V or less.
- Compliance Cert URL - Scotch_054007_10083_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.3m.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - t15pdulyob7qityw3ssm.pdf(Safety Data Sheet URL)
- Install Instructions URL - motor-lead-pigtail-splice-kits-5302-5303-5304.pdf(Install Instructions URL)
- Install Instructions 1 URL - 11579_9F4C2KTZJ6OEG35Y.pdf(Install Instructions 1 URL)
- Tech Drawing URL - 11579_E8BRI3Y4APJ1ULD7.pdf(Tech Drawing URL)
- Spec Sheet URL - 11579_18575.pdf(Spec Sheet URL)
- Features
| Three splices |
| Fast and simple installation |
| No torches or heat source required |
| No special tools required to install splice |
| Thick walls to resist puncture and abrasion damage |
| High dielectric constant stress control included with 5/8 kV kits for shielded feeder cables for minimizing size and electrical stress |
| Easy re-entry, can be used on cables with a rated operating temperature of 90 deg C and an emergency overload rating of 130 deg C, to splice (insulate and seal) motor lead connections for 1000 VAC and less cables sized 16 AWG to 500 kcmil |
| 5/8 kv shielded and non-shielded feeder cables sized 8 AWG to 500 KCMIL, polyethylene cable, cross linked polyethylene cable (xlp), ethylene propylene rubber cable (epr), copper conductors |
| 3/4 in maximum bolt length |
| 0.95 in ID lug cover |
| 4.2 in lug cover length |
| 1400 psi tensile strength |
| 750% elongation |
| 365 V/mil dielectric strength |
| 1/case |
| Three splices |
| 2 to 0 AWG feeder cable, 4 to 1/0 AWG motor lead conductor size |
