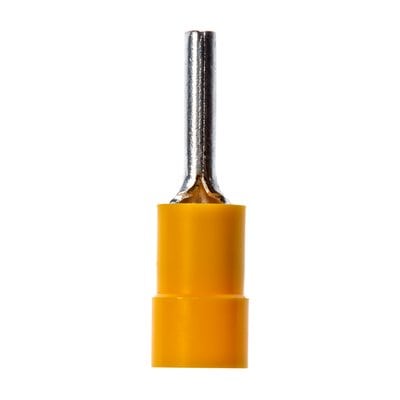

3M™ Scotchlok™ MVU10-55PX-A 051128-58863 Butted Seam Barrel Pin Terminal, 12 to 10 AWG Conductor, 1/4 in Dia x 0.55 in L Pin, Copper
Custom_Product_Images_Illustration
3M™ Scotchlok™ MVU10-55PX-A 051128-58863 Butted Seam Barrel Pin Terminal, 12 to 10 AWG Conductor, 1/4 in Dia x 0.55 in L Pin, Copper
SKU653402
MFGR #7100055061
Your Cost: $1.28/ea
List: 3M™ Scotchlok™ Pin Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping.
3M™ Scotchlok™ Pin Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping.
Alternate Catalog Number MVU10-55PX-A ARRA Compliant X Buy American Compliant X Catalog Number 7100055061 Country of Origin TW Currency USD EU RoHS Indicator Y Expiry|Spoilage Date Applicable Indicator Y Gross Weight Per Pack 3.2000 lb Gross Weight per Pack Metric 1.45 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 5.12 in Height [Metric] 13.0175 cm Length 9.38 in Length [Metric] 23.8125 cm Material Composition Declaration RoHS 2011/65/EU compliant without exemption Overall Length 1.06 in Returnable Y Specifications 1/4 in OD Barrel Standards CSA CertifiedRoHS 2011/65/EUUL Listed Sub Brand Scotchlok™ Temperature Rating 167 deg F Terminal Size 12 - 10 AWG Type Butted Seam Barrel UNSPSC 31200000 UPC 11 05112858863 UPC 12 051128588635 Voltage Rating 600 to 1000 VAC Width 6.75 in Width [Metric] 17.1450 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Color Yellow Conductor Size 12 to 10 AWG Material Copper Pin Diameter 1/4 in Pin Length 0.55 in Yellow vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance Funnel-designed, seamless brass sleeve offers easy insertion of wires Provides quick connection for set screws or clamps that are used to make electrical contact Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance 600 V rated for building wire and 1000 V for signs, fixtures or luminaires Vinyl insulation
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | MVU10-55PX-A |
| ARRA Compliant | X |
| Buy American Compliant | X |
| Catalog Number | 7100055061 |
| Country of Origin | TW |
| Currency | USD |
| EU RoHS Indicator | Y |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Gross Weight Per Pack | 3.2000 lb |
| Gross Weight per Pack Metric | 1.45 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 5.12 in |
| Height [Metric] | 13.0175 cm |
| Length | 9.38 in |
| Length [Metric] | 23.8125 cm |
| Material Composition Declaration | RoHS 2011/65/EU compliant without exemption |
| Overall Length | 1.06 in |
| Returnable | Y |
| Specifications | 1/4 in OD Barrel |
| Standards | CSA CertifiedRoHS 2011/65/EUUL Listed |
| Sub Brand | Scotchlok™ |
| Temperature Rating | 167 deg F |
| Terminal Size | 12 - 10 AWG |
| Type | Butted Seam Barrel |
| UNSPSC | 31200000 |
| UPC 11 | 05112858863 |
| UPC 12 | 051128588635 |
| Voltage Rating | 600 to 1000 VAC |
| Width | 6.75 in |
| Width [Metric] | 17.1450 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Color | Yellow |
| Conductor Size | 12 to 10 AWG |
| Material | Copper |
| Pin Diameter | 1/4 in |
| Pin Length | 0.55 in |
| Yellow vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance |
| Funnel-designed, seamless brass sleeve offers easy insertion of wires |
| Provides quick connection for set screws or clamps that are used to make electrical contact |
| Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance |
| 600 V rated for building wire and 1000 V for signs, fixtures or luminaires |
| Vinyl insulation |
