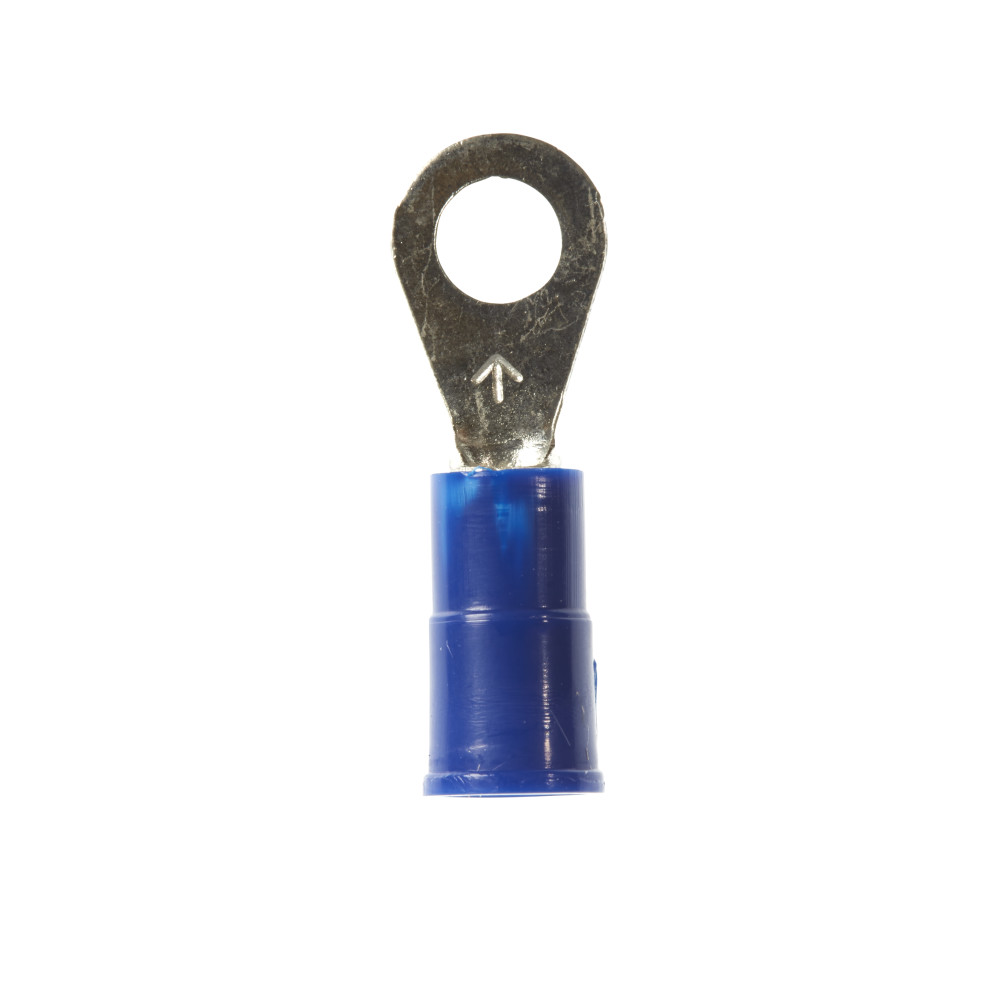

3M™ Scotchlok™ MV14-8R/LX 051128-58755 Insulated Standard Ring Terminal, 16 to 14 AWG Conductor, 0.93 in L, Brazed Seam Barrel, Copper
Custom_Product_Images_Illustration
3M™ Scotchlok™ MV14-8R/LX 051128-58755 Insulated Standard Ring Terminal, 16 to 14 AWG Conductor, 0.93 in L, Brazed Seam Barrel, Copper
SKU878879
MFGR #7000133335
Your Cost: $0.86/ea
List: 3M™ Scotchlok™ Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance.
3M™ Scotchlok™ Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance.
Alternate Catalog Number MV14-8R/LX ARRA Compliant X Barrel Size 0.09 in ID x 0.25 in L Buy American Compliant X Catalog Number 7000133335 Country of Origin US Currency USD EU RoHS Indicator C Expiry|Spoilage Date Applicable Indicator Y Finish Tin Plated Gross Weight Per Pack 1.2000 lb Gross Weight per Pack Metric 0.54 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 5.12 in Height [Metric] 13.0175 cm Length [Metric] 23.8125 cm Returnable Y Specifications 0.17 in Max Insulation Dia, 0.33 in Clearance Standard UL and CSA Standards ARRA CompliantBuy American Act CompliantRoHS 2011/65/EUUL E23438CSA LR22190 Stud Size #8 Sub Brand Scotchlok™ Temperature Rating -40 to 221 °F Terminal Size 16 - 14 AWG Tongue Size 0.31 in W x 0.03 in THK Tongue Type Ring Type Insulated Standard UNSPSC 31200000 UPC 11 05112858755 UPC 12 051128587553 Voltage Rating 600/1000 VAC Width 3.62 in Width [Metric] 9.2075 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Barrel Type Brazed Seam Color Blue Conductor Size 16 to 14 AWG Length 9.38 in Material Vinyl Standard The standard style of tongue Funnel designed, polyvinyl chloride sleeve offers easy insertion of wires It cannot be removed unless mounting screw is removed Crimp connection, vinyl insulated
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | MV14-8R/LX |
| ARRA Compliant | X |
| Barrel Size | 0.09 in ID x 0.25 in L |
| Buy American Compliant | X |
| Catalog Number | 7000133335 |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | C |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Finish | Tin Plated |
| Gross Weight Per Pack | 1.2000 lb |
| Gross Weight per Pack Metric | 0.54 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 5.12 in |
| Height [Metric] | 13.0175 cm |
| Length [Metric] | 23.8125 cm |
| Returnable | Y |
| Specifications | 0.17 in Max Insulation Dia, 0.33 in Clearance |
| Standard | UL and CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS 2011/65/EUUL E23438CSA LR22190 |
| Stud Size | #8 |
| Sub Brand | Scotchlok™ |
| Temperature Rating | -40 to 221 °F |
| Terminal Size | 16 - 14 AWG |
| Tongue Size | 0.31 in W x 0.03 in THK |
| Tongue Type | Ring |
| Type | Insulated Standard |
| UNSPSC | 31200000 |
| UPC 11 | 05112858755 |
| UPC 12 | 051128587553 |
| Voltage Rating | 600/1000 VAC |
| Width | 3.62 in |
| Width [Metric] | 9.2075 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Barrel Type | Brazed Seam |
| Color | Blue |
| Conductor Size | 16 to 14 AWG |
| Length | 9.38 in |
| Material | Vinyl |
| Standard |
| The standard style of tongue |
| Funnel designed, polyvinyl chloride sleeve offers easy insertion of wires |
| It cannot be removed unless mounting screw is removed |
| Crimp connection, vinyl insulated |
