SKU744701
MFGR #7000038685
Your Cost: $16.55/ea
List: The 3M™ Scotchlok™ copper lugs 31100 Series are a family of two hole lugs from 4 AWG to 1000 kcmil designed for terminating copper conductors. Each lug is tin plated to resist corrosion and can be installed with standard industry tools. Chamfered ends ensure ease of conductor insertion.
The 3M™ Scotchlok™ copper lugs 31100 Series are a family of two hole lugs from 4 AWG to 1000 kcmil designed for terminating copper conductors. Each lug is tin plated to resist corrosion and can be installed with standard industry tools. Chamfered ends ensure ease of conductor insertion.
Alternate Catalog Number 31137 Application Copper Conductor Only ARRA Compliant X Barrel Size 1-1/2 in Barrel Type Long Buy American Compliant X Capacity 2 Catalog Number 7000038685 Color Black Country of Origin CL Currency USD Dimensions 0.44 in ID x 0.56 in OD EU RoHS Indicator Y Expiry|Spoilage Date Applicable Indicator Y Gross Weight Per Pack 1.5000 lb Gross Weight per Pack Metric 0.68 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 3.25 in Height [Metric] 8.2550 cm Length 7.75 in Length [Metric] 19.6850 cm Material Composition Declaration RoHS 2011/65/EU compliant without exemption Overall Length 5.03 in Returnable Y Series 31000 Standard UL LISTED Standards ARRA CompliantRoHS CompliantUL Listed Sub Brand Scotchlok™ Tongue Size 3 in L x 0.81 in W Type 2-Hole UNSPSC 27121707 UPC 11 05113869245 UPC 12 051138692452 Voltage Rating 35 kV Width 3.25 in Width [Metric] 8.2550 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Conductor Size 2/0 AWG Conductor Type Copper Material Copper Stud Size 1/2 in Copper Conductor Only Simple installation using readily available tools Manufactured using tin plated copper Color coded printing for easy lug identification The lugs are installed using standard industry tooling Each lug is electro tin plated to resist electrolytic corrosion 2 hole capacity Designed for terminating copper conductors Each lug is tin plated to resist corrosion and can be installed with standard industry tools Chamfered ends ensure ease of conductor insertion For copper conductor only 0.63 in center of hole to pad end, 1.75 in center of hole to center of hole
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 31137 |
| Application | Copper Conductor Only |
| ARRA Compliant | X |
| Barrel Size | 1-1/2 in |
| Barrel Type | Long |
| Buy American Compliant | X |
| Capacity | 2 |
| Catalog Number | 7000038685 |
| Color | Black |
| Country of Origin | CL |
| Currency | USD |
| Dimensions | 0.44 in ID x 0.56 in OD |
| EU RoHS Indicator | Y |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Gross Weight Per Pack | 1.5000 lb |
| Gross Weight per Pack Metric | 0.68 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8535908020 |
| Height | 3.25 in |
| Height [Metric] | 8.2550 cm |
| Length | 7.75 in |
| Length [Metric] | 19.6850 cm |
| Material Composition Declaration | RoHS 2011/65/EU compliant without exemption |
| Overall Length | 5.03 in |
| Returnable | Y |
| Series | 31000 |
| Standard | UL LISTED |
| Standards | ARRA CompliantRoHS CompliantUL Listed |
| Sub Brand | Scotchlok™ |
| Tongue Size | 3 in L x 0.81 in W |
| Type | 2-Hole |
| UNSPSC | 27121707 |
| UPC 11 | 05113869245 |
| UPC 12 | 051138692452 |
| Voltage Rating | 35 kV |
| Width | 3.25 in |
| Width [Metric] | 8.2550 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Conductor Size | 2/0 AWG |
| Conductor Type | Copper |
| Material | Copper |
| Stud Size | 1/2 in |
| Copper Conductor Only |
| Simple installation using readily available tools |
| Manufactured using tin plated copper |
| Color coded printing for easy lug identification |
| The lugs are installed using standard industry tooling |
| Each lug is electro tin plated to resist electrolytic corrosion |
| 2 hole capacity |
| Designed for terminating copper conductors |
| Each lug is tin plated to resist corrosion and can be installed with standard industry tools |
| Chamfered ends ensure ease of conductor insertion |
| For copper conductor only |

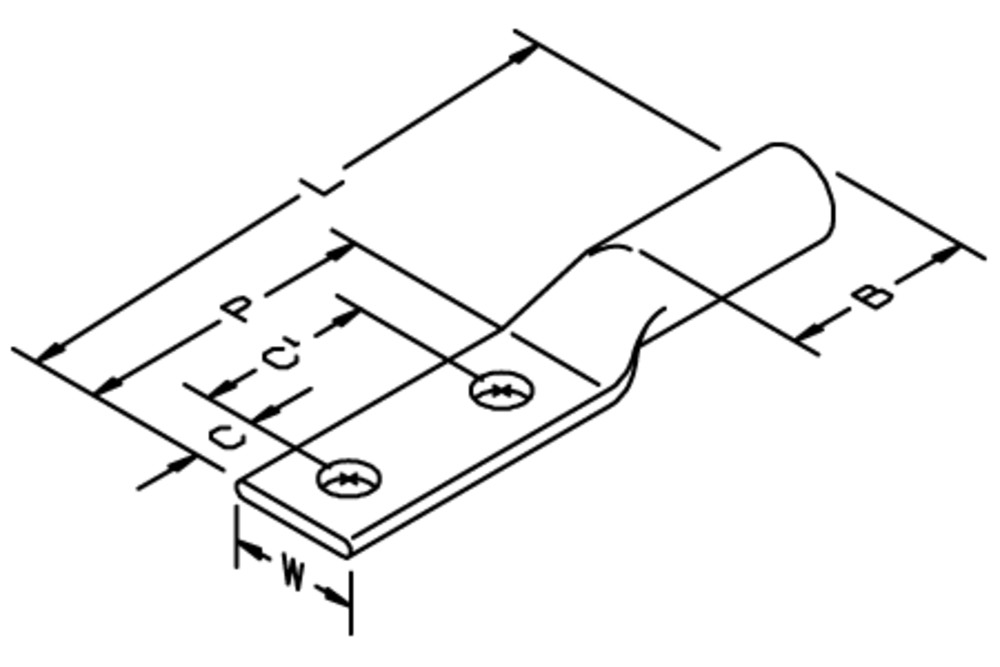

| 0.63 in center of hole to pad end, 1.75 in center of hole to center of hole |
