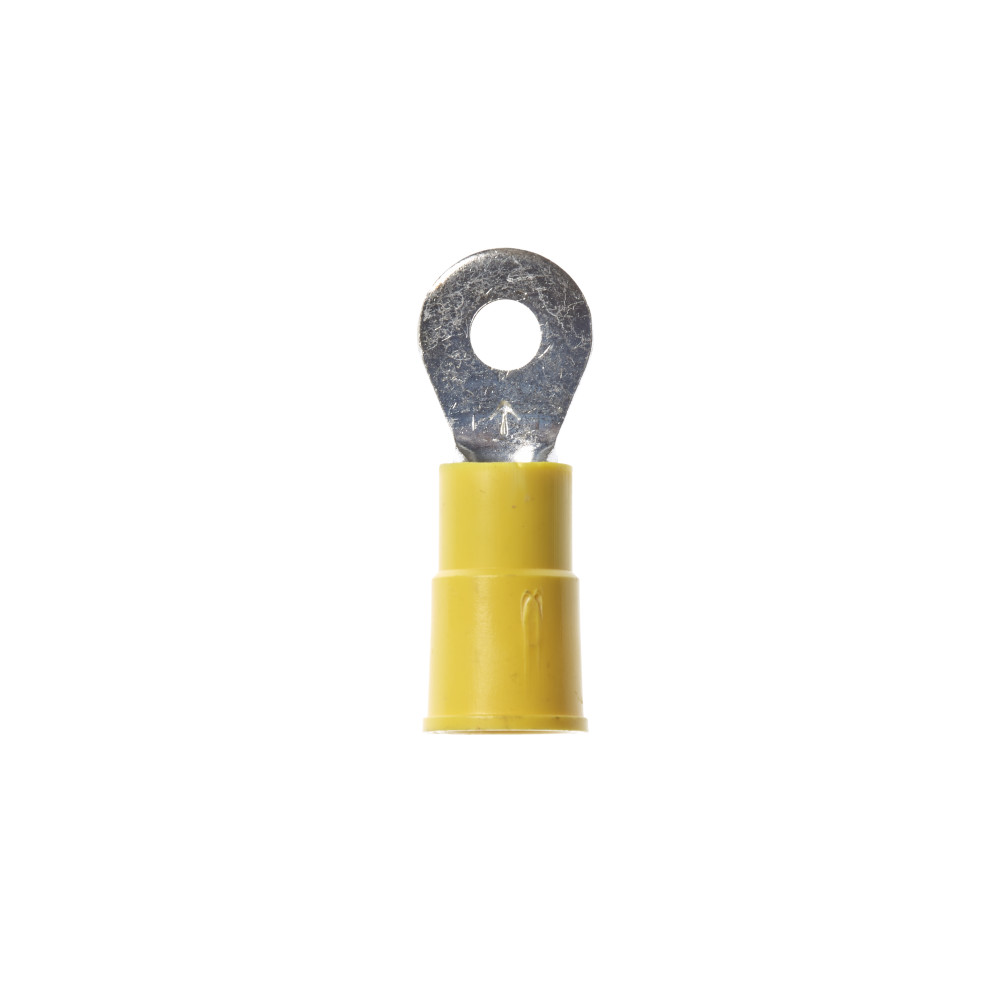

3M™ Scotchlok™ 051128-58854 Standard Ring Tongue Terminal, 12 to 10 AWG Conductor, 1.03 in L, ETP Copper, Yellow
Custom_Product_Images_Illustration
3M™ Scotchlok™ 051128-58854 Standard Ring Tongue Terminal, 12 to 10 AWG Conductor, 1.03 in L, ETP Copper, Yellow
SKU609748
MFGR #7010293665
$/ea
Scotchlok™ Ring Tongue Terminal, Standard, 12 to 10 AWG Conductor, #6 Stud, 1.03 in Length, 0.135 in ID x 0.25 in L Butted Barrel, 600 to 1000 VAC, -40 to 221 deg F, ETP Copper, Yellow, 0.38 in W x 0.04 in THK
Scotchlok™ Ring Tongue Terminal, Standard, 12 to 10 AWG Conductor, #6 Stud, 1.03 in Length, 0.135 in ID x 0.25 in L Butted Barrel, 600 to 1000 VAC, -40 to 221 deg F, ETP Copper, Yellow, 0.38 in W x 0.04 in THK
Alternate Catalog Number MVU10-6RX ARRA Compliant X Barrel Type 0.135 in ID x 0.25 in L Butted Brand 3M™ Buy American Compliant X Catalog Number 7010293665 Color Yellow Conductor Size 12 to 10 AWG Country of Origin US Currency USD Dimensions 0.38 in W x 0.04 in THK EU RoHS Indicator C Expiry|Spoilage Date Applicable Indicator Y Gross Weight Per Pack 3.2000 lb Gross Weight per Pack Metric 1.45 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 5.12 in Height [Metric] 13.0175 cm Length 9.38 in Length [Metric] 23.8125 cm Manufacturer 3M™ Material ETP Copper Returnable Y Standard UL and CSA Standards CSA CertifiedRoHS 2011/65/EUUL Listed Stock Status NONSTOCK Stud Size #6 Sub Brand Scotchlok™ Temperature Rating -40 to 221 °F Terminal Size 12 - 10 AWG Type Standard UNSPSC 31200000 UPC 11 05112858854 UPC 12 051128588540 Voltage Rating 600 to 1000 VAC Width 6.75 in Width [Metric] 17.1450 cm Standard The standard style of tongue The safest and most reliable 3M terminal It cannot be removed unless mounting screw is removed Crimp connection, vinyl insulated
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | MVU10-6RX |
| ARRA Compliant | X |
| Barrel Type | 0.135 in ID x 0.25 in L Butted |
| Brand | 3M™ |
| Buy American Compliant | X |
| Catalog Number | 7010293665 |
| Color | Yellow |
| Conductor Size | 12 to 10 AWG |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 0.38 in W x 0.04 in THK |
| EU RoHS Indicator | C |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Gross Weight Per Pack | 3.2000 lb |
| Gross Weight per Pack Metric | 1.45 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 5.12 in |
| Height [Metric] | 13.0175 cm |
| Length | 9.38 in |
| Length [Metric] | 23.8125 cm |
| Manufacturer | 3M™ |
| Material | ETP Copper |
| Returnable | Y |
| Standard | UL and CSA |
| Standards | CSA CertifiedRoHS 2011/65/EUUL Listed |
| Stock Status | NONSTOCK |
| Stud Size | #6 |
| Sub Brand | Scotchlok™ |
| Temperature Rating | -40 to 221 °F |
| Terminal Size | 12 - 10 AWG |
| Type | Standard |
| UNSPSC | 31200000 |
| UPC 11 | 05112858854 |
| UPC 12 | 051128588540 |
| Voltage Rating | 600 to 1000 VAC |
| Width | 6.75 in |
| Width [Metric] | 17.1450 cm |
| Standard |
| The standard style of tongue |
| The safest and most reliable 3M terminal |
| It cannot be removed unless mounting screw is removed |
| Crimp connection, vinyl insulated |
