Custom_Product_Images_Illustration
SKU5734
MFGR #7100165251
Your Cost: $0.90/ea

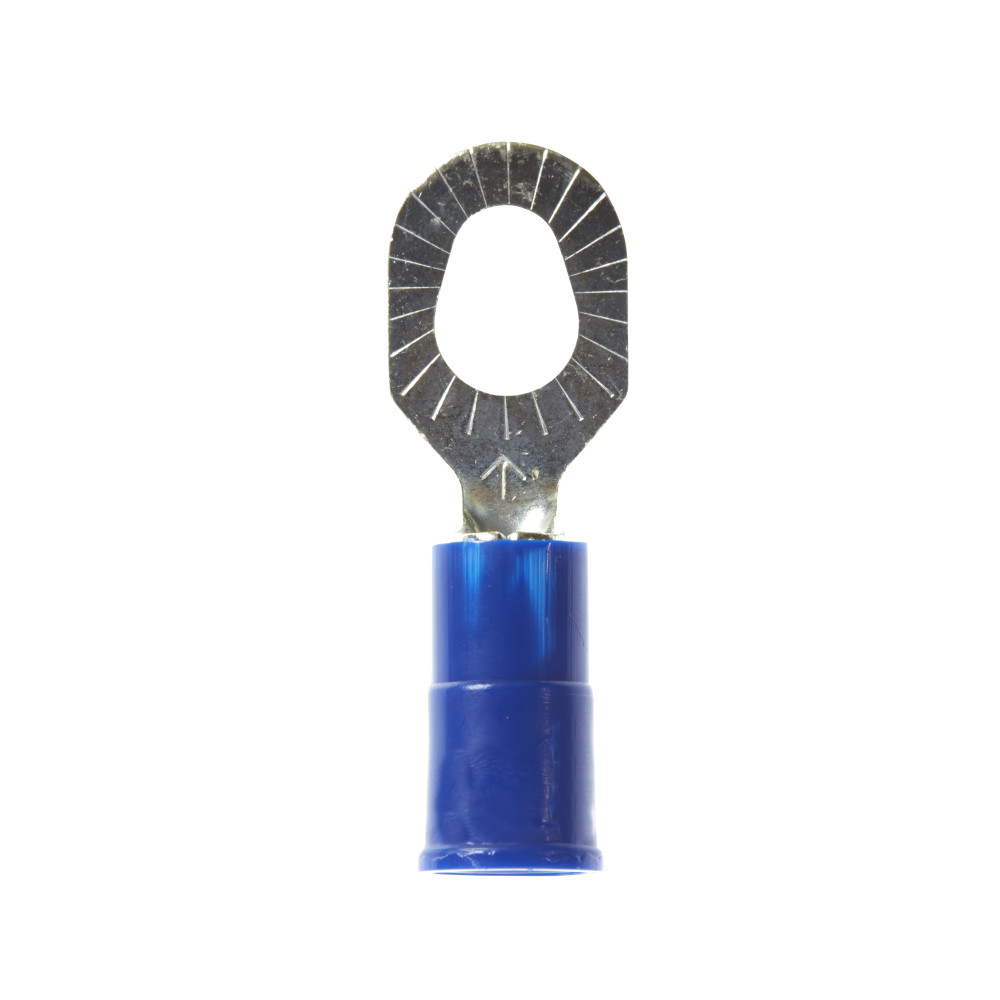

List: 3M™ Scotchlok™ Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance.
3M™ Scotchlok™ Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance.
Alternate Catalog Number MV14-610RX ARRA Compliant X Barrel Size 0.09 in ID x 0.25 in L Buy American Compliant X Catalog Number 7100165251 Country of Origin US Currency USD EU RoHS Indicator C Expiry|Spoilage Date Applicable Indicator Y Finish Tin Plated Gross Weight Per Pack 1.2000 lb Gross Weight per Pack Metric 0.54 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 5.12 in Height [Metric] 13.0175 cm Length [Metric] 23.8125 cm Returnable Y Specifications 0.17 in Max Insulation Dia, 0.31 in Clearance Standard UL and CSA Standards LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed Stud Size #6 to 10 Sub Brand Scotchlok™ Temperature Rating -40 to 221 °F Terminal Size 16 - 14 AWG Tongue Size 0.34 in W x 0.03 in THK Tongue Type Ring Type Insulated Multi-Stud UNSPSC 31200000 UPC 11 05112858769 UPC 12 051128587690 Voltage Rating 600/1000 VAC Width 3.62 in Width [Metric] 9.2075 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Barrel Type Brazed Seam Color Blue Conductor Size 16 to 14 AWG Length 9.38 in Material Copper Multi-Stud Blue vinyl insulated, brazed-seam barrel ensures a secure fit and offers reliable performance Funnel designed, polyvinyl chloride sleeve offers easy insertion of wires Multi-stud style ring tongue fits around multiple stud sizes Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | MV14-610RX |
| ARRA Compliant | X |
| Barrel Size | 0.09 in ID x 0.25 in L |
| Buy American Compliant | X |
| Catalog Number | 7100165251 |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | C |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Finish | Tin Plated |
| Gross Weight Per Pack | 1.2000 lb |
| Gross Weight per Pack Metric | 0.54 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 5.12 in |
| Height [Metric] | 13.0175 cm |
| Length [Metric] | 23.8125 cm |
| Returnable | Y |
| Specifications | 0.17 in Max Insulation Dia, 0.31 in Clearance |
| Standard | UL and CSA |
| Standards | LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed |
| Stud Size | #6 to 10 |
| Sub Brand | Scotchlok™ |
| Temperature Rating | -40 to 221 °F |
| Terminal Size | 16 - 14 AWG |
| Tongue Size | 0.34 in W x 0.03 in THK |
| Tongue Type | Ring |
| Type | Insulated Multi-Stud |
| UNSPSC | 31200000 |
| UPC 11 | 05112858769 |
| UPC 12 | 051128587690 |
| Voltage Rating | 600/1000 VAC |
| Width | 3.62 in |
| Width [Metric] | 9.2075 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Barrel Type | Brazed Seam |
| Color | Blue |
| Conductor Size | 16 to 14 AWG |
| Length | 9.38 in |
| Material | Copper |
| Multi-Stud |
| Blue vinyl insulated, brazed-seam barrel ensures a secure fit and offers reliable performance |
| Funnel designed, polyvinyl chloride sleeve offers easy insertion of wires |
| Multi-stud style ring tongue fits around multiple stud sizes |
| Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance |
