Custom_Product_Images_Illustration
SKU300316
MFGR #7100017418
Your Cost: $1.26/ea
List: 3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance

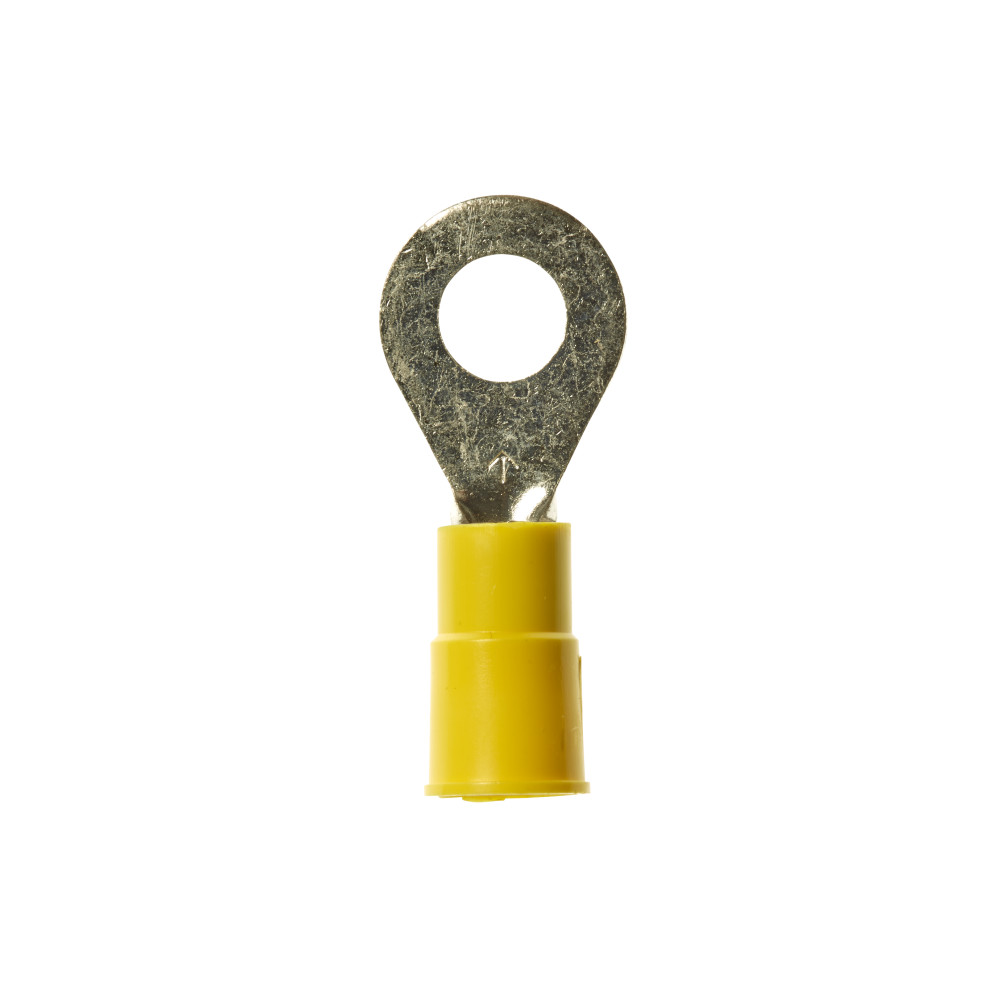

3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance
Alternate Catalog Number MV10-14R/SX ARRA Compliant X Barrel Size 0.135 in ID x 0.25 in L Buy American Compliant X Catalog Number 7100017418 Country of Origin US Currency USD EU RoHS Indicator C Expiry|Spoilage Date Applicable Indicator Y Finish Tin Plated Gross Weight Per Pack 2.9000 lb Gross Weight per Pack Metric 1.32 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 5.12 in Height [Metric] 13.0175 cm Length [Metric] 23.8125 cm Returnable Y Specifications 1/4 in Max Insulation Dia, 0.44 in Clearance Standard UL and CSA Standards ARRA CompliantBuy American Act CompliantRoHS 2011/65/EUUL E23438CSA LR22190 Stud Size 1/4 in Sub Brand Scotchlok™ Temperature Rating -40 to 221 °F Terminal Size 12 - 10 AWG Tongue Size 0.53 in W x 0.04 in THK Tongue Type Ring Type Insulated Standard UNSPSC 31200000 UPC 11 05112858759 UPC 12 051128587598 Voltage Rating 600/1000 VAC Width 6.75 in Width [Metric] 17.1450 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Barrel Type Brazed Seam Color Yellow Conductor Size 12 to 10 AWG Length 9.38 in Material Vinyl Standard Terminal is vinyl insulated with a brazed seam barrel to give you a secure fit every time Wires can be inserted easily with the funnel designed, polyvinyl chloride sleeve Terminal is yellow and comes in a standard-style ring tongue Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | MV10-14R/SX |
| ARRA Compliant | X |
| Barrel Size | 0.135 in ID x 0.25 in L |
| Buy American Compliant | X |
| Catalog Number | 7100017418 |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | C |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Finish | Tin Plated |
| Gross Weight Per Pack | 2.9000 lb |
| Gross Weight per Pack Metric | 1.32 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 5.12 in |
| Height [Metric] | 13.0175 cm |
| Length [Metric] | 23.8125 cm |
| Returnable | Y |
| Specifications | 1/4 in Max Insulation Dia, 0.44 in Clearance |
| Standard | UL and CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS 2011/65/EUUL E23438CSA LR22190 |
| Stud Size | 1/4 in |
| Sub Brand | Scotchlok™ |
| Temperature Rating | -40 to 221 °F |
| Terminal Size | 12 - 10 AWG |
| Tongue Size | 0.53 in W x 0.04 in THK |
| Tongue Type | Ring |
| Type | Insulated Standard |
| UNSPSC | 31200000 |
| UPC 11 | 05112858759 |
| UPC 12 | 051128587598 |
| Voltage Rating | 600/1000 VAC |
| Width | 6.75 in |
| Width [Metric] | 17.1450 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Barrel Type | Brazed Seam |
| Color | Yellow |
| Conductor Size | 12 to 10 AWG |
| Length | 9.38 in |
| Material | Vinyl |
| Standard |
| Terminal is vinyl insulated with a brazed seam barrel to give you a secure fit every time |
| Wires can be inserted easily with the funnel designed, polyvinyl chloride sleeve |
| Terminal is yellow and comes in a standard-style ring tongue |
| Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance |
