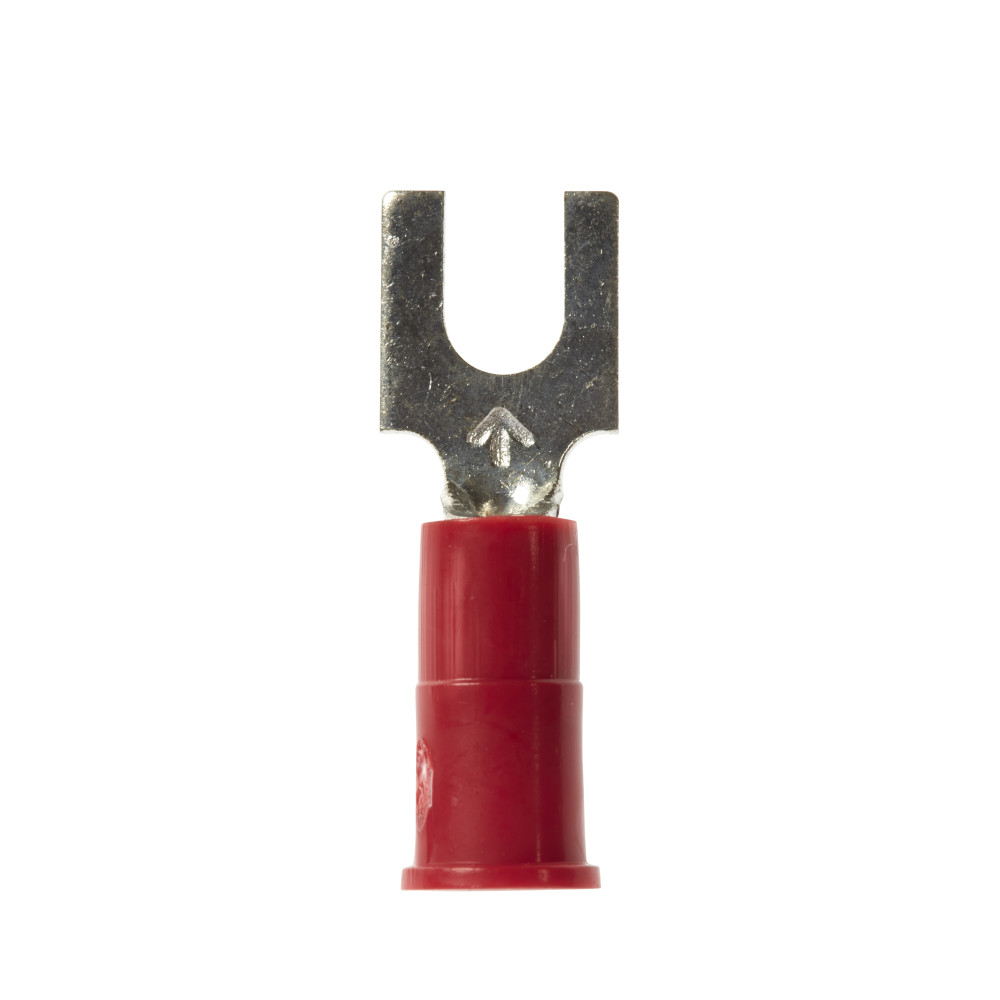

3M™ Scotchlok™ 051128-58743 Insulated Block Fork Terminal, 22 to 18 AWG Conductor, 0.85 in L, Brazed Seam Barrel, Copper
Custom_Product_Images_Illustration
3M™ Scotchlok™ 051128-58743 Insulated Block Fork Terminal, 22 to 18 AWG Conductor, 0.85 in L, Brazed Seam Barrel, Copper
SKU769465
MFGR #7000133322
Your Cost: $0.86/ea
List: 3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance.
3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance.
Alternate Catalog Number MV18-6FBX ARRA Compliant X Barrel Size 0.07 in ID x 0.25 in L Buy American Compliant X Catalog Number 7000133322 Conductor Type Stranded Copper Country of Origin US Currency USD EU RoHS Indicator Y Expiry|Spoilage Date Applicable Indicator Y Finish Electro Tin Plated Gross Weight Per Pack 2.0000 lb Gross Weight per Pack Metric 0.91 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 5.12 in Height [Metric] 13.0175 cm Length [Metric] 23.8125 cm Material Composition Declaration RoHS 2011/65/EU compliant without exemption Returnable Y Specifications 0.145 in Dia Max Insulation, 1/4 in Clearance Standard UL and CSA Standards ARRA CompliantBuy American Act CompliantRoHS 2011/65/EUUL E23438CSA File No.LR22190 Stud Size #6 Sub Brand Scotchlok™ Temperature Rating -40 to 221 °F Terminal Size 22 - 18 AWG Tongue Size 0.3 in W x 0.03 in THK Tongue Type Fork Type Insulated Block UNSPSC 31200000 UPC 11 05112858743 UPC 12 051128587430 Voltage Rating 600/1000 VAC Width 3.62 in Width [Metric] 9.2075 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Barrel Type Brazed Seam Color Red Conductor Size 22 to 18 AWG Length 9.38 in Material Vinyl Block Red vinyl-insulated, brazed seam barrel ensures a secure fit and offers reliable performance Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires Suitable for use in a terminal block Electrolytic copper construction offers good conductivity Abrasion and corrosion resistant, flared, vinyl-sleeve insulation ensures easy crimping Crimp termination Free hanging (in-line) mounting 500/Case, 100/Bottle
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | MV18-6FBX |
| ARRA Compliant | X |
| Barrel Size | 0.07 in ID x 0.25 in L |
| Buy American Compliant | X |
| Catalog Number | 7000133322 |
| Conductor Type | Stranded Copper |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Finish | Electro Tin Plated |
| Gross Weight Per Pack | 2.0000 lb |
| Gross Weight per Pack Metric | 0.91 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 5.12 in |
| Height [Metric] | 13.0175 cm |
| Length [Metric] | 23.8125 cm |
| Material Composition Declaration | RoHS 2011/65/EU compliant without exemption |
| Returnable | Y |
| Specifications | 0.145 in Dia Max Insulation, 1/4 in Clearance |
| Standard | UL and CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS 2011/65/EUUL E23438CSA File No.LR22190 |
| Stud Size | #6 |
| Sub Brand | Scotchlok™ |
| Temperature Rating | -40 to 221 °F |
| Terminal Size | 22 - 18 AWG |
| Tongue Size | 0.3 in W x 0.03 in THK |
| Tongue Type | Fork |
| Type | Insulated Block |
| UNSPSC | 31200000 |
| UPC 11 | 05112858743 |
| UPC 12 | 051128587430 |
| Voltage Rating | 600/1000 VAC |
| Width | 3.62 in |
| Width [Metric] | 9.2075 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Barrel Type | Brazed Seam |
| Color | Red |
| Conductor Size | 22 to 18 AWG |
| Length | 9.38 in |
| Material | Vinyl |
| Block |
| Red vinyl-insulated, brazed seam barrel ensures a secure fit and offers reliable performance |
| Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires |
| Suitable for use in a terminal block |
| Electrolytic copper construction offers good conductivity |
| Abrasion and corrosion resistant, flared, vinyl-sleeve insulation ensures easy crimping |
| Crimp termination |
| Free hanging (in-line) mounting |
| 500/Case, 100/Bottle |
