SKU903086
MFGR #7100044405
Your Cost: $0.55/ea

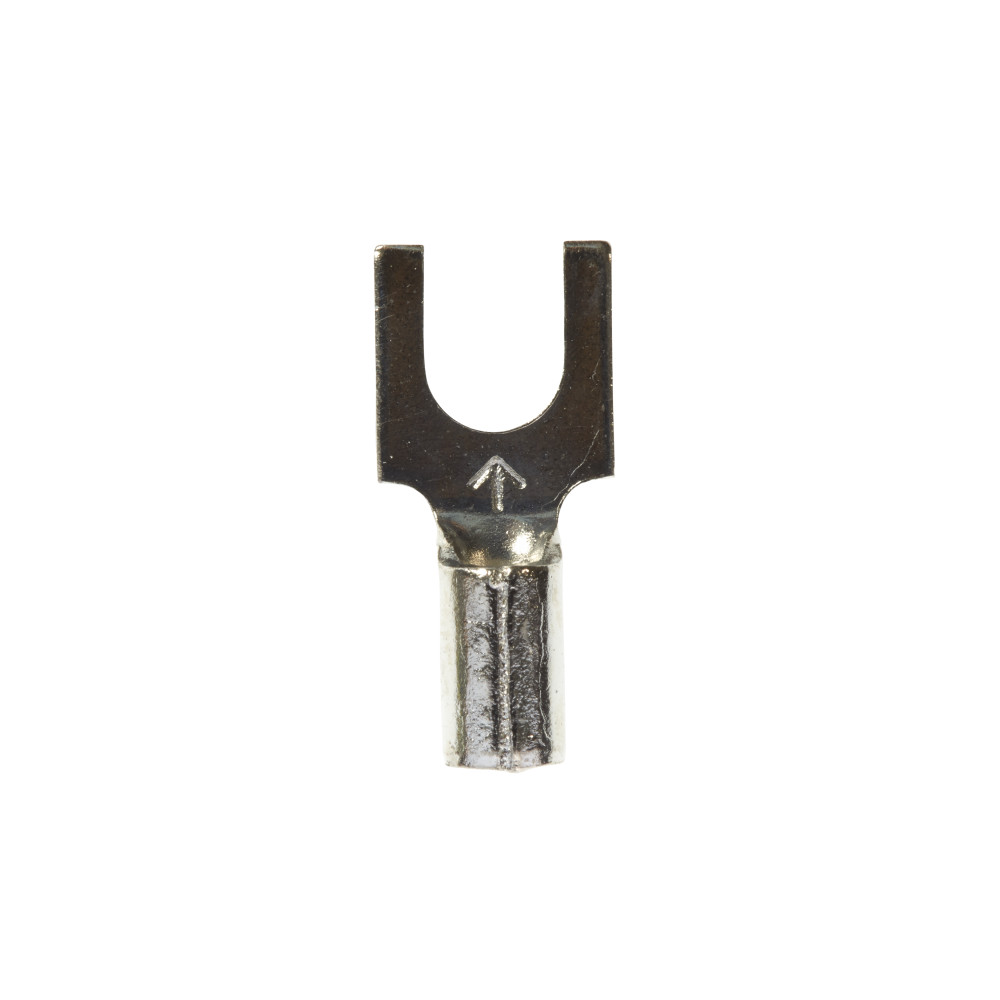

List: Block forks have the same strength as the standard fork, but are designed to use in a terminal block because their sides lie flat against the barrier portion of the terminal block.
Block forks have the same strength as the standard fork, but are designed to use in a terminal block because their sides lie flat against the barrier portion of the terminal block.
Alternate Catalog Number M14-8FBX ARRA Compliant X Barrel Size 0.09 in ID x 0.25 in L Buy American Compliant X Catalog Number 7100044405 Conductor Type Stranded Copper Country of Origin US Currency USD EU RoHS Indicator Y Expiry|Spoilage Date Applicable Indicator Y Finish Electro-Tin Plated Gross Weight Per Pack 1.2000 lb Gross Weight per Pack Metric 0.54 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 5.12 in Height [Metric] 13.0175 cm Length [Metric] 23.8125 cm Material Composition Declaration RoHS 2011/65/EU compliant without exemption Returnable Y Specifications 1/4 in Clearance Standard UL and CSA Standards LR22190 CSA CertifiedRoHS 2011/65/EU CompliantUL E23438 Listed Stud Size #8 Sub Brand Scotchlok™ Temperature Rating 347 °F Terminal Size 16 - 14 AWG Tongue Size 0.3 in W x 0.03 in THK Tongue Type Fork Type Non-Insulated Block UNSPSC 31200000 UPC 11 05112858711 UPC 12 051128587119 Voltage Rating 600/1000 VAC Width 3.62 in Width [Metric] 9.2075 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Barrel Type Brazed Seam Conductor Size 16 to 14 AWG Length 9.38 in Material Copper Block Non-insulated, silver brazed seam barrel ensures a secure fit and offers reliable performance Beveled mouth offers easy insertion of wires Suitable for use in a terminal block Electrolytic copper construction offers good conductivity Crimp termination Free hanging (in-line) mounting 500/Case, 100/Bottle
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | M14-8FBX |
| ARRA Compliant | X |
| Barrel Size | 0.09 in ID x 0.25 in L |
| Buy American Compliant | X |
| Catalog Number | 7100044405 |
| Conductor Type | Stranded Copper |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Finish | Electro-Tin Plated |
| Gross Weight Per Pack | 1.2000 lb |
| Gross Weight per Pack Metric | 0.54 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 5.12 in |
| Height [Metric] | 13.0175 cm |
| Length [Metric] | 23.8125 cm |
| Material Composition Declaration | RoHS 2011/65/EU compliant without exemption |
| Returnable | Y |
| Specifications | 1/4 in Clearance |
| Standard | UL and CSA |
| Standards | LR22190 CSA CertifiedRoHS 2011/65/EU CompliantUL E23438 Listed |
| Stud Size | #8 |
| Sub Brand | Scotchlok™ |
| Temperature Rating | 347 °F |
| Terminal Size | 16 - 14 AWG |
| Tongue Size | 0.3 in W x 0.03 in THK |
| Tongue Type | Fork |
| Type | Non-Insulated Block |
| UNSPSC | 31200000 |
| UPC 11 | 05112858711 |
| UPC 12 | 051128587119 |
| Voltage Rating | 600/1000 VAC |
| Width | 3.62 in |
| Width [Metric] | 9.2075 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Barrel Type | Brazed Seam |
| Conductor Size | 16 to 14 AWG |
| Length | 9.38 in |
| Material | Copper |
| Block |
| Non-insulated, silver brazed seam barrel ensures a secure fit and offers reliable performance |
| Beveled mouth offers easy insertion of wires |
| Suitable for use in a terminal block |
| Electrolytic copper construction offers good conductivity |
| Crimp termination |
| Free hanging (in-line) mounting |
| 500/Case, 100/Bottle |
