3M™ Scotchcast™ 85 Series Multi-Mold Non-Shielded Splice Kit, Epoxy/Resin, Green
Insulated Splice Kit, Low Voltage (below 5 KV)
476084
MFG #: 7100009589
3M™
50.37000
/ ea

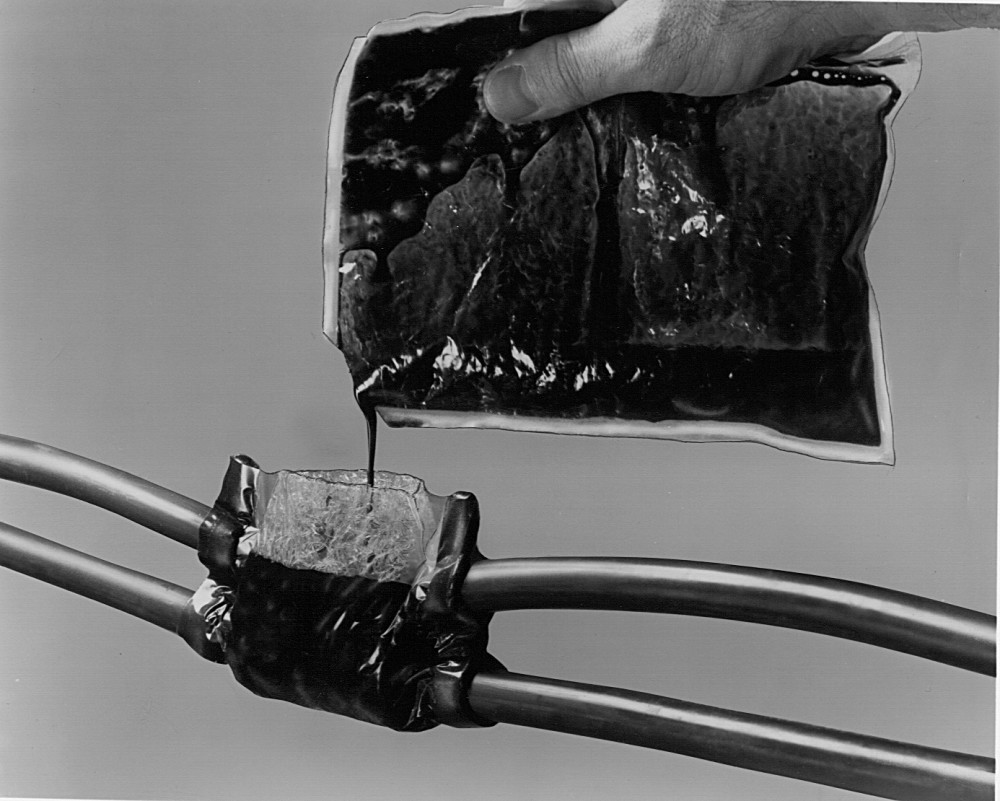

3M™ Scotchcast™ 85 Series Multi-Mold Resin Splice Kit includes a flexible film plastic mold, electrical insulating resin 2104, pressure-sensitive adhesive film sealing strip and a comprehensive instruction booklet. Using split bolts, H-tap or C-tap compression connectors, it provides inline, wye, X, butt and dead-end splice configurations. It has a flexible film plastic mold with a built-in porous spacer web for ensuring proper thickness of insulating compound. The splice kit is perfect for direct burial applications, underground systems, joining of cable reel ends, cable failures and dig-ins.
- Compliance Cert URL - Scotch_054007_10083_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.3m.com(Seller Home Page URL)
- Install Instructions 1 URL - 11579_1GPIOSWRMHQTC5N6.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 3m-scotchcast-multi-mold-power-cable-splice-kit-85series.pdf(Install Instructions 1 URL)
- Install Instructions URL - 3m-scotchcast-multi-mold-power-cable-splice-kit-85series.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - txqltsmx9wgtchivkte7.pdf(Safety Data Sheet URL)
- Seller Home Page URL - Country(Seller Home Page URL)
- Spec Sheet URL - 11579_M85THUKG6Z9AREL2.pdf(Spec Sheet URL)
- Spec Sheet URL - 3m-scotchcast-multi-mold-inline-splicing-kits-85-series.pdf(Spec Sheet URL)
- Tech Drawing URL - 11579_V2ZOCFGT83XP0AN1.pdf(Tech Drawing URL)
- Tech Drawing URL - mediawebserver?mwsId=SSSSSufSevTsZxtUnxtxOY_GevUqevTSevTSevTSeSSSSSS--(Tech Drawing URL)
- Features
| Versatility designed into each kit accommodates a wide range of cable size |
| All materials provided to insulate and waterproof one splice, compound has low viscosity for fast, complete filling of splice and low exotherm which will not damage plastic insulated cable |
| Convenient closed mixing pouch permits clean, easy resin handling |
| Wrap around polyester film mold contains porous webbing which assures proper insulation spacing around splice and connector |
| No special tools required |
| Electrically insulates odd sized and odd shaped splices on cables |
| Pliable plastic molds are formed around splices |
| Rated for 1 kV cables |
| 4-1/4 in spacer web, 0.85 sealing putty |
| Accommodates 4 AWG stranded H or C-tap compression conductors |
| 1-3/4 in maximum conductor size (height plus width) |
| 1-1/2 in maximum sheath opening length |
| 444 psi tensile strength |
| 98% elongation |
| 524 V/mil dielectric strength |
| 8 AWG, 4 AWG conductor size |
| 10/case |
| 7/16 in OD run/tap cable |
