SKU577061
MFGR #7000005952
Your Cost: $173.57/ea
List: Cold Shrink Termination Kit 4 Skirt CN

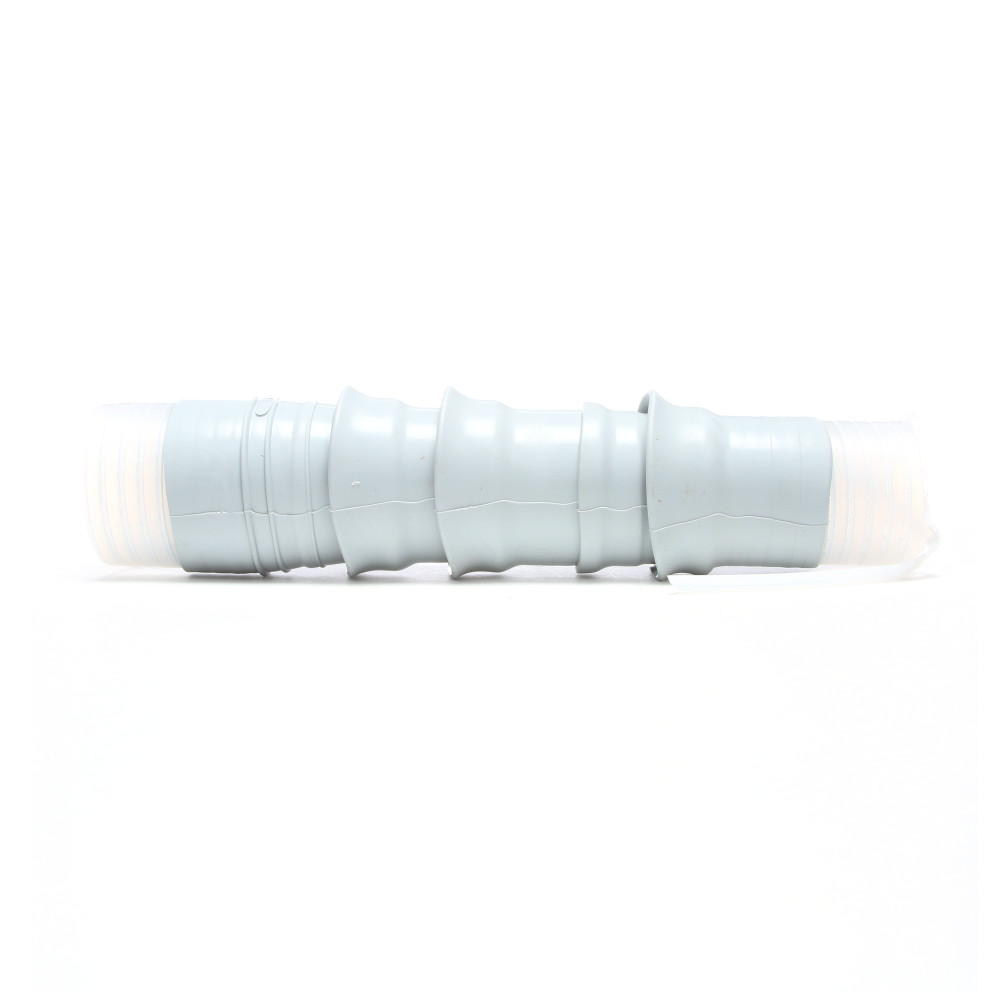

Cold Shrink Termination Kit 4 Skirt CN
Alternate Catalog Number 5602 Application Outdoor ARRA Compliant X Buy American Compliant X Cable Type Concentric Neutral (CN) Catalog Number 7000005952 Conductor Size 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil Country of Origin US Currency USD EU RoHS Indicator C Expiry|Spoilage Date Applicable Indicator Y Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8546900000 Height 3.00 in Height [Metric] 7.6200 cm Length 11.00 in Length [Metric] 27.9400 cm Material Composition Declaration Contact 3M for information Number Of Terminals 1 Returnable Y Series QT-II 5600 Specifications 4-Skirts, 1-Terminal, 110 kV BIL, 0.84 to 1.38 in OD Cable Insulation, 250 to 750 kcmil, 5 to 15 kV, 8-1/2 in L Maximum Installed Standard IEEE Standards ARRA CompliantBuy American Act CompliantRoHS CompliantIEEE No. 48-1990 Class 1 Sub Brand Scotch™ Type Cold Shrink UNSPSC 39120000 UPC 11 05400711882 UPC 12 054007118824 Voltage Rating 5,000/8,000/15,000 V Width 3.30 in Width [Metric] 8.3820 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Material Silicone Rubber Suitable For Use With Concentric Neutral Cable Outdoor Provides a void-free seal to concentric neutral cables High dielectric constant material regulates the distribution of electric field stress Molded, silicone rubber insulation offers durability and reduces leakage currents in damp conditions Withstands voltages of 5 to 15 and is 110 kV BIL-rated IEEE standard 48 approved for class 1-terminations Accommodates wire size of 350 to 750 kcmil at 5 kV 100%, 350 to 750 kcmil at 5kV 133%, 250 to 750 kcmil at 8 kV 133% and 250 to 500 kcmil at 15 kV
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 5602 |
| Application | Outdoor |
| ARRA Compliant | X |
| Buy American Compliant | X |
| Cable Type | Concentric Neutral (CN) |
| Catalog Number | 7000005952 |
| Conductor Size | 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | C |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8546900000 |
| Height | 3.00 in |
| Height [Metric] | 7.6200 cm |
| Length | 11.00 in |
| Length [Metric] | 27.9400 cm |
| Material Composition Declaration | Contact 3M for information |
| Number Of Terminals | 1 |
| Returnable | Y |
| Series | QT-II 5600 |
| Specifications | 4-Skirts, 1-Terminal, 110 kV BIL, 0.84 to 1.38 in OD Cable Insulation, 250 to 750 kcmil, 5 to 15 kV, 8-1/2 in L Maximum Installed |
| Standard | IEEE |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantIEEE No. 48-1990 Class 1 |
| Sub Brand | Scotch™ |
| Type | Cold Shrink |
| UNSPSC | 39120000 |
| UPC 11 | 05400711882 |
| UPC 12 | 054007118824 |
| Voltage Rating | 5,000/8,000/15,000 V |
| Width | 3.30 in |
| Width [Metric] | 8.3820 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Material | Silicone Rubber |
| Suitable For Use With | Concentric Neutral Cable |
| Outdoor |
| Provides a void-free seal to concentric neutral cables |
| High dielectric constant material regulates the distribution of electric field stress |
| Molded, silicone rubber insulation offers durability and reduces leakage currents in damp conditions |
| Withstands voltages of 5 to 15 and is 110 kV BIL-rated |
| IEEE standard 48 approved for class 1-terminations |
| Accommodates wire size of 350 to 750 kcmil at 5 kV 100%, 350 to 750 kcmil at 5kV 133%, 250 to 750 kcmil at 8 kV 133% and 250 to 500 kcmil at 15 kV |
