SKU340144
MFGR #ITCSN-0400-48"-Black-20 Pcs
Your Cost: $37.70/ea

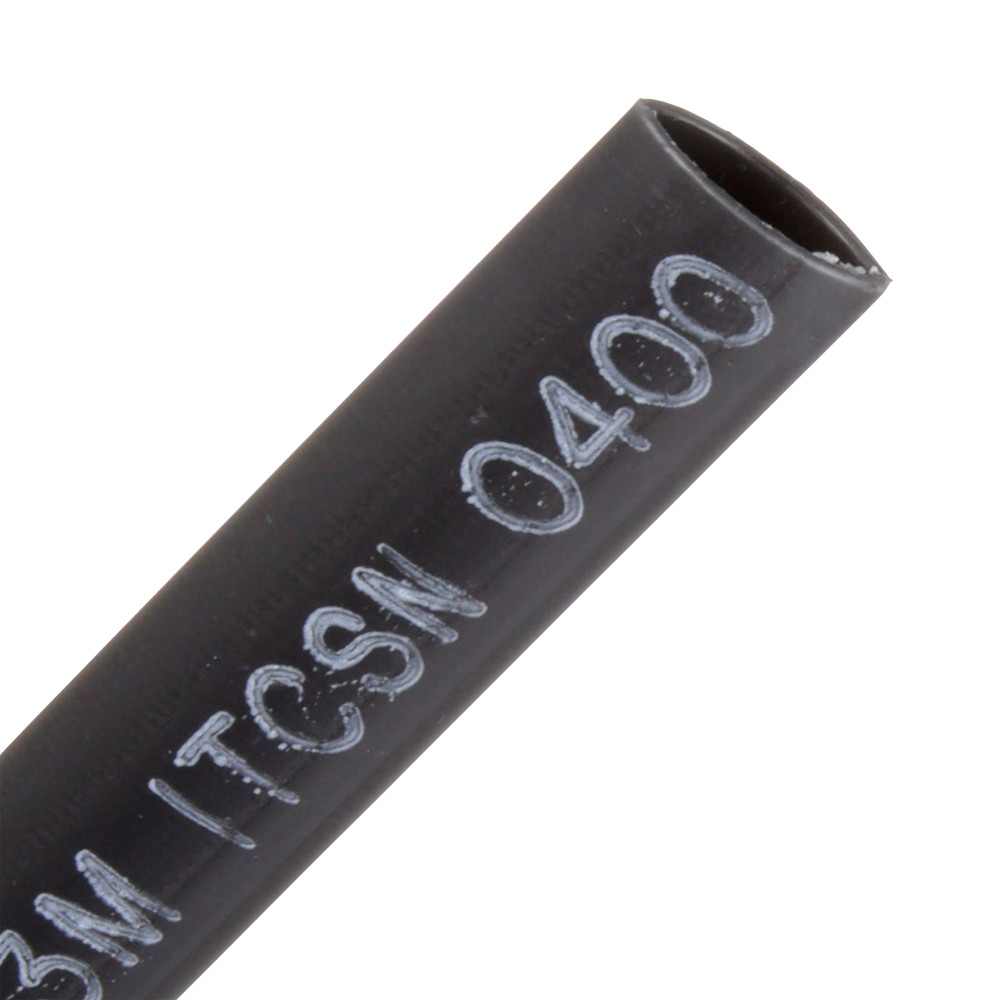

List: Our split-resistant 3M™ ITCSN Heat Shrink Cable Sleeves are color-coded, letting you quickly identify wires as you work through installations or afterward during maintenance. Use the sleeves to insulate direct buried, dig-in or submersible repairs, or insulate secondary splices for safety. A factory-applied adhesive on these cable sleeves provides added protection that?s great for use over splices, terminations or connections, and the sleeve also works with high-voltage, air-insulated lugs. The durable sleeves hold up to harsh conditions and can withstand temperatures ranging from -67 to 230 degrees F (-55 to 110 degrees C). They are also UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
Our split-resistant 3M™ ITCSN Heat Shrink Cable Sleeves are color-coded, letting you quickly identify wires as you work through installations or afterward during maintenance. Use the sleeves to insulate direct buried, dig-in or submersible repairs, or insulate secondary splices for safety. A factory-applied adhesive on these cable sleeves provides added protection that?s great for use over splices, terminations or connections, and the sleeve also works with high-voltage, air-insulated lugs. The durable sleeves hold up to harsh conditions and can withstand temperatures ranging from -67 to 230 degrees F (-55 to 110 degrees C). They are also UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
Alternate Catalog Number IT0.400BK48"L ARRA Compliant X Buy American Compliant X Catalog Number ITCSN-0400-48"-Black-20 Pcs Country of Origin US Currency USD EU RoHS Indicator Y Expiry|Spoilage Date Applicable Indicator Y Gross Weight Per Pack 3.4000 lb Gross Weight per Pack Metric 1.54 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 3926909985 Height 3.30 in Height [Metric] 8.3820 cm Length [Metric] 129.2860 cm Material Composition Declaration RoHS 2011/65/EU compliant without exemption Returnable Y Series ITCSN Shrink Ratio 4:1 Shrink Temperature 121 °C Standard UL, CSA Standards RoHS CompliantUL ListedCSA Certified Temperature Rating -55 to 110 °C Type Heavy Wall UNSPSC 39120000 UPC 11 05400708964 UPC 12 054007089643 Voltage Rating 1 kVA Wall Type Heavy Duty Width 3.30 in Width [Metric] 8.3820 cm Wire Size 12 to 6 AWG Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Color Black Inner Diameter Expanded 0.4 in Inner Diameter Recovered 0.15 in Length 50.90 in Material Polyolefin Fast and easy installation Thick wall top resists puncture and abrasion damage Rugged weather resistant protection Resists acids and alkalis Bonds to a wide variety of substrates and UV resistant Reliable and proven Low temperature flexibility, no cracking No dripping, flowing, cracking heat shock for 4 hr at 225 deg C 1 x 10^14 Ohm-cm volume resistivity 500 V/mil dielectric strength 0.05% water absorption 375% elongation and 2680 psi tensile strength for 7 days at 175 deg C heat aging 2400 psi tensile strength and 475% ultimate elongation 0.35 to 0.17 in OD cable 10 years shelf life from date of manufacture
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | IT0.400BK48"L |
| ARRA Compliant | X |
| Buy American Compliant | X |
| Catalog Number | ITCSN-0400-48"-Black-20 Pcs |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Gross Weight Per Pack | 3.4000 lb |
| Gross Weight per Pack Metric | 1.54 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 3926909985 |
| Height | 3.30 in |
| Height [Metric] | 8.3820 cm |
| Length [Metric] | 129.2860 cm |
| Material Composition Declaration | RoHS 2011/65/EU compliant without exemption |
| Returnable | Y |
| Series | ITCSN |
| Shrink Ratio | 4:1 |
| Shrink Temperature | 121 °C |
| Standard | UL, CSA |
| Standards | RoHS CompliantUL ListedCSA Certified |
| Temperature Rating | -55 to 110 °C |
| Type | Heavy Wall |
| UNSPSC | 39120000 |
| UPC 11 | 05400708964 |
| UPC 12 | 054007089643 |
| Voltage Rating | 1 kVA |
| Wall Type | Heavy Duty |
| Width | 3.30 in |
| Width [Metric] | 8.3820 cm |
| Wire Size | 12 to 6 AWG |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Color | Black |
| Inner Diameter Expanded | 0.4 in |
| Inner Diameter Recovered | 0.15 in |
| Length | 50.90 in |
| Material | Polyolefin |
| Fast and easy installation |
| Thick wall top resists puncture and abrasion damage |
| Rugged weather resistant protection |
| Resists acids and alkalis |
| Bonds to a wide variety of substrates and UV resistant |
| Reliable and proven |
| Low temperature flexibility, no cracking |
| No dripping, flowing, cracking heat shock for 4 hr at 225 deg C |
| 1 x 10^14 Ohm-cm volume resistivity |
| 500 V/mil dielectric strength |
| 0.05% water absorption |
| 375% elongation and 2680 psi tensile strength for 7 days at 175 deg C heat aging |
| 2400 psi tensile strength and 475% ultimate elongation |
| 0.35 to 0.17 in OD cable |
| 10 years shelf life from date of manufacture |
