Custom_Product_Images_Illustration
SKU865014
MFGR #7000005975
Your Cost: $3.15/ea

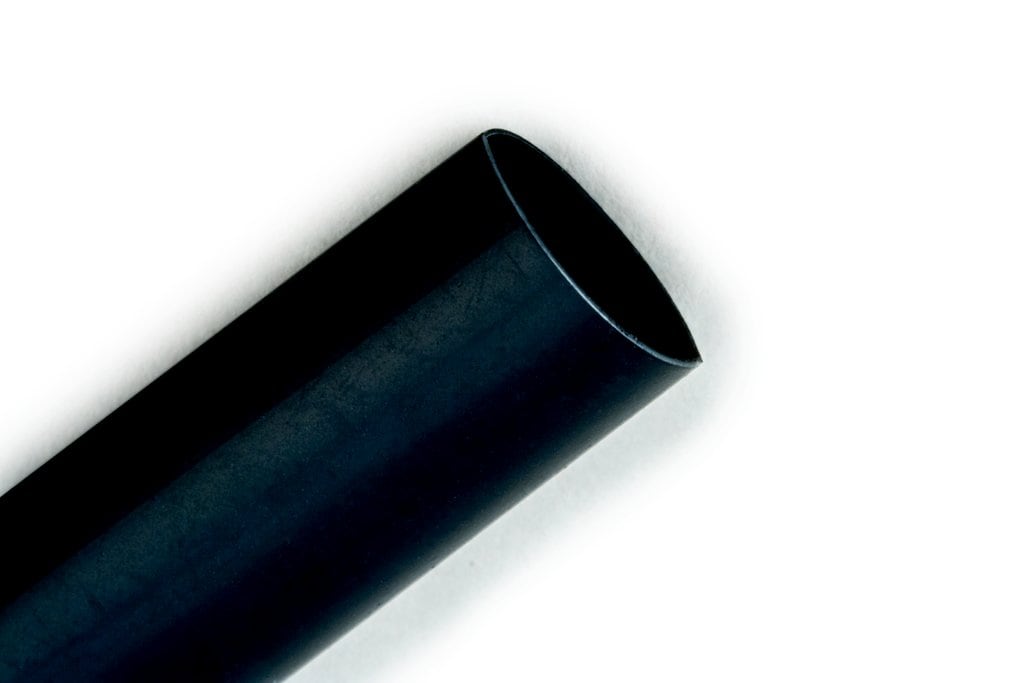

List: 3M™ heat shrink tubing FP-301 offers an outstanding balance of electrical, physical and chemical properties for a variety of industrial and military applications. FP-301 tubing is split resistant, mechanically tough, easily marked and resists cold flow.
3M™ heat shrink tubing FP-301 offers an outstanding balance of electrical, physical and chemical properties for a variety of industrial and military applications. FP-301 tubing is split resistant, mechanically tough, easily marked and resists cold flow.
Alternate Catalog Number FP1.500BK100'L ARRA Compliant C Buy American Compliant C Catalog Number 7000005975 Continuous Operating Temperature -67 degrees to 275 degrees Country of Origin USA Currency USD Dielectric Strength 900 V/mil EU RoHS Indicator Y Flammability Pass Gross Weight Per Pack 15.8000 lb Gross Weight per Pack Metric 7.17 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 3926909990 Heat Aging Elongation 175% Heat Shock No dripping, clowing, cracking, passes mandrel wrap test Height 7.88 in Height [Metric] 20.0152 cm Inside Diameter 0.75 Length [Metric] 54.8386 cm Low Temperature Flexibility No Cracking Minimum Shrink Temperature 212 degrees Outside Diameter 1.5 Series FP-301 Shrink Ratio 2:1 Shrink Temperature 212 °F Standard UL, CSA, ABS Standards UL 224 Temperature Rating -67 to 275 °F Thickness 0.04 Type Flexible Flame Retardant UNSPSC 39121723 UPC 11 05400708514 UPC 12 054007085140 Voltage Rating 600 VAC Volume Resistivity 10(15) ohm/cm Wall Type Single Width 22.15 in Width [Metric] 56.2610 cm Wire Size 500 to 800 kcmil Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Color Black Inner Diameter Expanded 1-1/2 in Inner Diameter Recovered 3/4 in Length 21.59 in Material Polyolefin Wall Thickness Recovered 0.04 in Flexible, Polyolefin Heat shrink tubing FP-301 offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications Tubing comes in a bulk spool When freely recovered, the tubing will shrink to 50% of its as supplied internal diameter Recovered wall thickness is proportional to the degree of recovery 13000 psi secant modulus +/-5% longitudinal change Non-corrosive and non-nutrient fungus resistance 10 years shelf life Used as a shrink fit electrical insulation over cable splices and terminations 1 x 10^15 Ohm-cm volume resistivity Low temperature flexibility no cracking, splitting for 4 hr at -55 deg C Self-extinguish flammability property 900 V/mil dielectric strength Heat shock, no dripping, flowing, cracking, passes mandrel wrap test for 4 hr at 250 deg C 175 % elongation for 336 hr at 175 deg C heat aging 0.2% water absorption 0.2% water absorption
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | FP1.500BK100'L |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 7000005975 |
| Continuous Operating Temperature | -67 degrees to 275 degrees |
| Country of Origin | USA |
| Currency | USD |
| Dielectric Strength | 900 V/mil |
| EU RoHS Indicator | Y |
| Flammability | Pass |
| Gross Weight Per Pack | 15.8000 lb |
| Gross Weight per Pack Metric | 7.17 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 3926909990 |
| Heat Aging | Elongation 175% |
| Heat Shock | No dripping, clowing, cracking, passes mandrel wrap test |
| Height | 7.88 in |
| Height [Metric] | 20.0152 cm |
| Inside Diameter | 0.75 |
| Length [Metric] | 54.8386 cm |
| Low Temperature Flexibility | No Cracking |
| Minimum Shrink Temperature | 212 degrees |
| Outside Diameter | 1.5 |
| Series | FP-301 |
| Shrink Ratio | 2:1 |
| Shrink Temperature | 212 °F |
| Standard | UL, CSA, ABS |
| Standards | UL 224 |
| Temperature Rating | -67 to 275 °F |
| Thickness | 0.04 |
| Type | Flexible Flame Retardant |
| UNSPSC | 39121723 |
| UPC 11 | 05400708514 |
| UPC 12 | 054007085140 |
| Voltage Rating | 600 VAC |
| Volume Resistivity | 10(15) ohm/cm |
| Wall Type | Single |
| Width | 22.15 in |
| Width [Metric] | 56.2610 cm |
| Wire Size | 500 to 800 kcmil |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Color | Black |
| Inner Diameter Expanded | 1-1/2 in |
| Inner Diameter Recovered | 3/4 in |
| Length | 21.59 in |
| Material | Polyolefin |
| Wall Thickness Recovered | 0.04 in |
| Flexible, Polyolefin |
| Heat shrink tubing FP-301 offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications |
| Tubing comes in a bulk spool |
| When freely recovered, the tubing will shrink to 50% of its as supplied internal diameter |
| Recovered wall thickness is proportional to the degree of recovery |
| 13000 psi secant modulus |
| +/-5% longitudinal change |
| Non-corrosive and non-nutrient fungus resistance |
| 10 years shelf life |
| Used as a shrink fit electrical insulation over cable splices and terminations |
| 1 x 10^15 Ohm-cm volume resistivity |
| Low temperature flexibility no cracking, splitting for 4 hr at -55 deg C |
| Self-extinguish flammability property |
| 900 V/mil dielectric strength |
| Heat shock, no dripping, flowing, cracking, passes mandrel wrap test for 4 hr at 250 deg C |
| 175 % elongation for 336 hr at 175 deg C heat aging |
| 0.2% water absorption |
