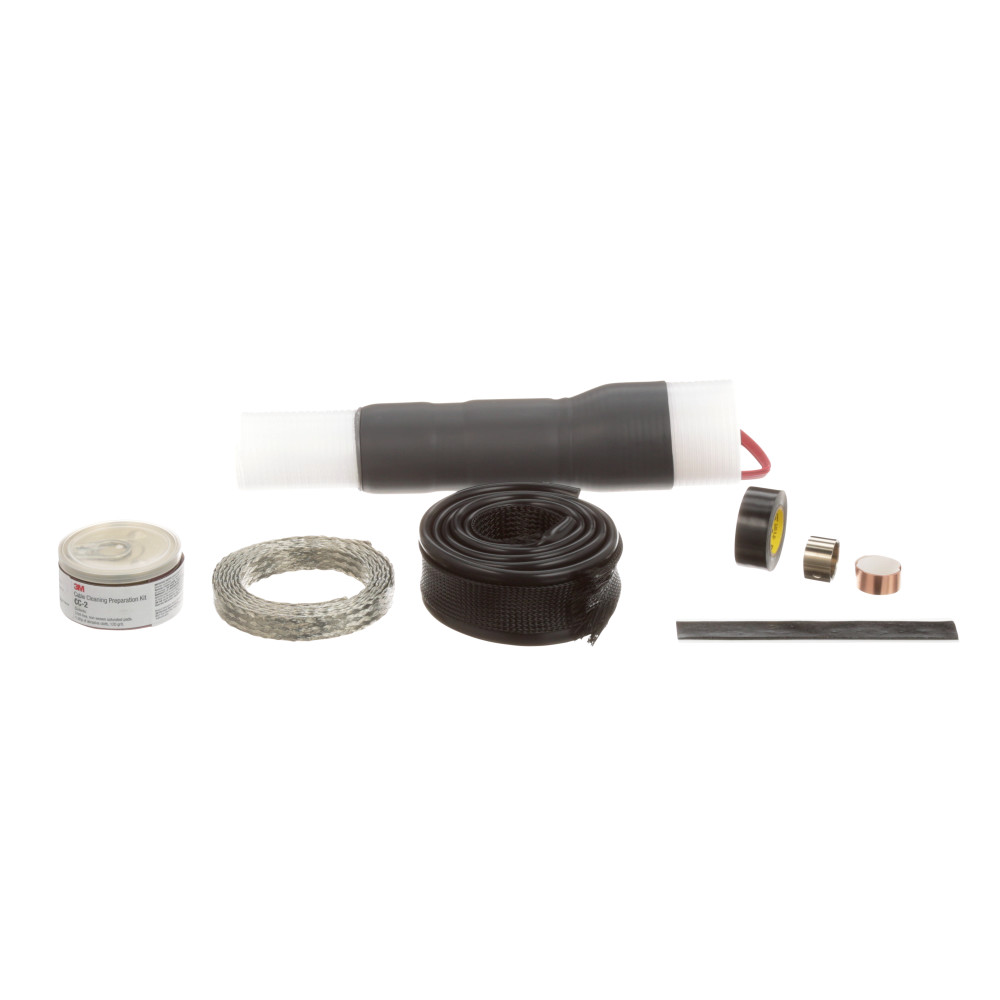

3M™ 7600-T-3-RJS Cold Shrink QT-III Termination Kit, 3, Silicone Rubber, Black
Insulated Termination Kits
437684
MFG #: 7000133180
3M™
1320.69000
/ ea
3M™ Cold Shrink QT-III 7600-T-3-RJS Series Termination Kit includes a non-skirted, 3-phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 - 35 kV.
- Brochure URL - 11579_A05QU4MDK9O83FL7.pdf(Brochure URL)
- Brochure URL - 3mtm-cold-shrink-qt-iii-indoor-outdoor-terminations-brochure.pdf(Brochure URL)
- Catalog URL - 3M_054007_42168_Brochure.pdf(Catalog URL)
- Compliance Cert URL - Scotch_054007_10083_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.3m.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - mediawebserver?mwsId=SSSSSuUn_zu8l00xM829N8tZlv70k17zHvu9lxtD7SSSSSS--(Safety Data Sheet URL)
- Seller Home Page URL - Country(Seller Home Page URL)
- Spec Sheet URL - 11579_L4H29J5MBQYDP76U.pdf(Spec Sheet URL)
- Spec Sheet URL - cs-silicone-3-conductor-termination-kit-qt-iii-7600-rjs-series.pdf(Spec Sheet URL)
- Tech Drawing URL - 11579_ID-DRW-v1-78-8127-7000-2.pdf(Tech Drawing URL)
- Tech Drawing URL - mediawebserver?mwsId=66666UF6EVsSyXTtnXTtNXTaEVtQEVs6EVs6EVs6E666666--(Tech Drawing URL)
- Applications
- Features
| Indoor |
| Provides a void free seal to tape shield, wire shield and UniShield® power cables |
| High dielectric constant material regulates the distribution of electric field stress |
| Integrated design allows for easier installation, while sealing compounds provide constant radial pressure |
| UniShield®, wire shield, tape shield shielding type |
| Conductor size by voltage (5 kV) 500 to 750 kcmil, (8 kV) 400 to 600 kcmil |
| 3 terminal |
| 3 terminals |
