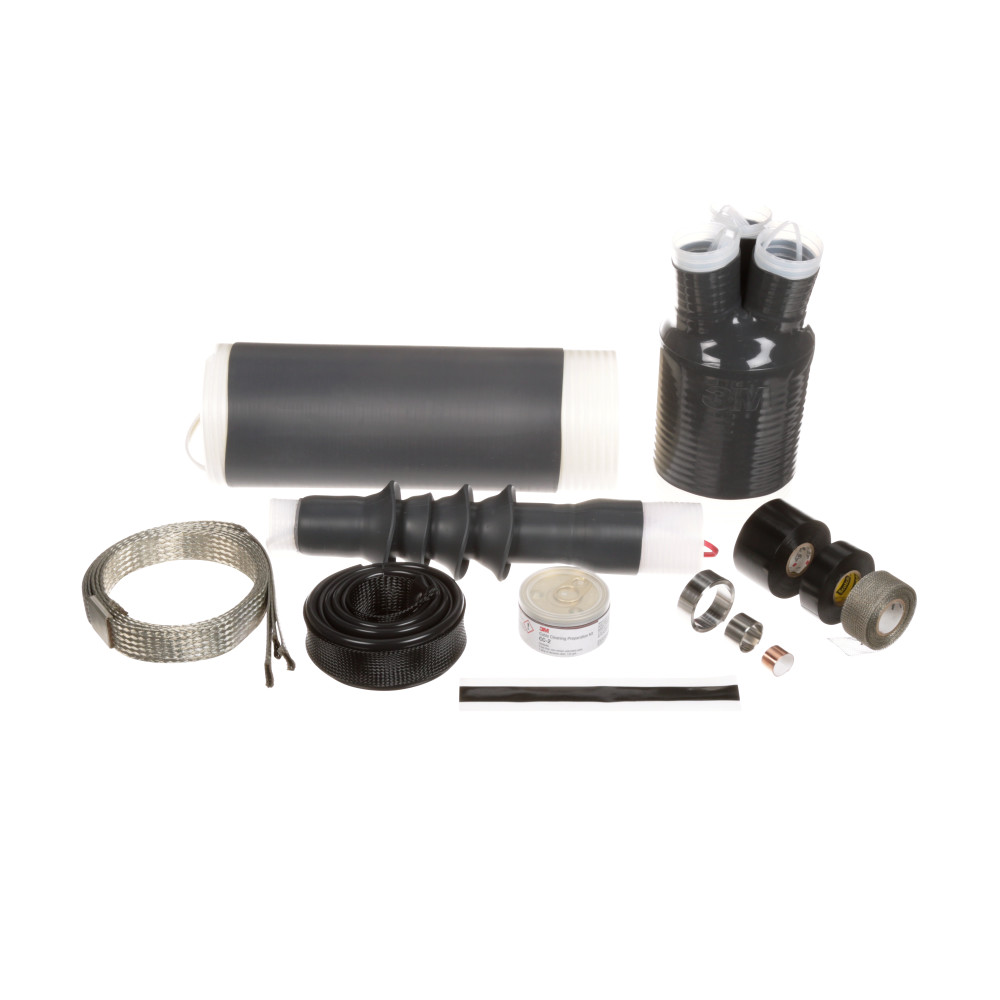

3M™ 7600-S-3G Cold Shrink QT-III Termination Kit, 3, Black
Custom_Product_Images_Illustration
3M™ 7600-S-3G Cold Shrink QT-III Termination Kit, 3, Black
SKU338142
MFGR #7100006351
Your Cost: $2,536.74/ea
List: 3M™ Cold Shrink QT-III 7600-S-3G Series Termination Kit includes sufficient material to make 1 termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and silicone rubber insulation allow the termination to withstand voltages from 5 to 25/28 kV.
3M™ Cold Shrink QT-III 7600-S-3G Series Termination Kit includes sufficient material to make 1 termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and silicone rubber insulation allow the termination to withstand voltages from 5 to 25/28 kV.
Alternate Catalog Number 7693-S-4-3G Application Outdoor ARRA Compliant X Buy American Compliant X Catalog Number 7100006351 Country of Origin US Currency USD EU RoHS Indicator C Expiry|Spoilage Date Applicable Indicator Y Gross Weight Per Pack 10.0000 lb Gross Weight per Pack Metric 4.54 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8546900000 Height 9.10 in Height [Metric] 23.1140 cm Length 27.00 in Length [Metric] 68.5800 cm Material Composition Declaration Contact 3M for information Number Of Pieces 3 Returnable Y Series 7600-S-3G Specifications 4-Skirts, 5 kV, 8 kV, 15 kV, 25/28 kV, 150 kV BIL-Rated, 0.92 to 1.18 in OD Cable Insulation, 12-1/4 in Max Installed Length, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil, 300 kcmil, 350 kcmil, 400 kcmil, 500 kcmil Conductor Size Standard IEEE Standards ARRA CompliantBuy American Act CompliantRoHS CompliantIEEE Certified Type Cold Shrink QT-III UNSPSC 26121600 UPC 11 05400743684 UPC 12 054007436843 Width 12.30 in Width [Metric] 31.2420 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Color Black Material Silicon Rubber Suitable For Use With Three Core Tape Shield, Wire Shield and UniShield® Cable Outdoor Provides a void free seal to tape shield, wire shield and UniShield® power cables High dielectric constant material regulates the distribution of electric field stress Integrated design allows for easier installation, while sealing compounds provide constant radial pressure Conductor size by voltage (5 kV, 100%) 400-500 kcmil, (5 kV, 133%) 400-500 kcmil, (8 kV, 100%) 400-500 kcmil, (8 kV, 133%) 400-500 kcmil, (15 kV, 100%) 250-350 kcmil, (15 kV, 133%) 4/0 AWG-350 kcmil, (25/28 kV, 100%) 2/0 AWG-250 kcmil, (25/28 kV, 133%) 1-4/0 AWG 3 terminal 3 terminals
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 7693-S-4-3G |
| Application | Outdoor |
| ARRA Compliant | X |
| Buy American Compliant | X |
| Catalog Number | 7100006351 |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | C |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Gross Weight Per Pack | 10.0000 lb |
| Gross Weight per Pack Metric | 4.54 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8546900000 |
| Height | 9.10 in |
| Height [Metric] | 23.1140 cm |
| Length | 27.00 in |
| Length [Metric] | 68.5800 cm |
| Material Composition Declaration | Contact 3M for information |
| Number Of Pieces | 3 |
| Returnable | Y |
| Series | 7600-S-3G |
| Specifications | 4-Skirts, 5 kV, 8 kV, 15 kV, 25/28 kV, 150 kV BIL-Rated, 0.92 to 1.18 in OD Cable Insulation, 12-1/4 in Max Installed Length, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil, 300 kcmil, 350 kcmil, 400 kcmil, 500 kcmil Conductor Size |
| Standard | IEEE |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantIEEE Certified |
| Type | Cold Shrink QT-III |
| UNSPSC | 26121600 |
| UPC 11 | 05400743684 |
| UPC 12 | 054007436843 |
| Width | 12.30 in |
| Width [Metric] | 31.2420 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Color | Black |
| Material | Silicon Rubber |
| Suitable For Use With | Three Core Tape Shield, Wire Shield and UniShield® Cable |
| Outdoor |
| Provides a void free seal to tape shield, wire shield and UniShield® power cables |
| High dielectric constant material regulates the distribution of electric field stress |
| Integrated design allows for easier installation, while sealing compounds provide constant radial pressure |
| Conductor size by voltage (5 kV, 100%) 400-500 kcmil, (5 kV, 133%) 400-500 kcmil, (8 kV, 100%) 400-500 kcmil, (8 kV, 133%) 400-500 kcmil, (15 kV, 100%) 250-350 kcmil, (15 kV, 133%) 4/0 AWG-350 kcmil, (25/28 kV, 100%) 2/0 AWG-250 kcmil, (25/28 kV, 133%) 1-4/0 AWG |
| 3 terminal |
| 3 terminals |
