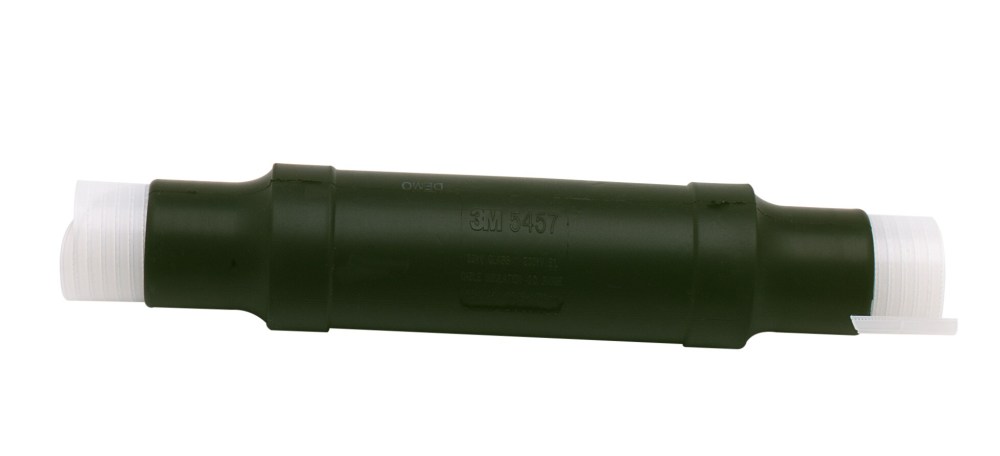

3M™ 5777A-MT|80611207384 Cold Shrink QS-III Splice Kit, 5/8 to 15 kVAC, 350 to 750 kcmil Conductor, 58 in L Splice
Insulated Splice Kit, 15 kV
573538
MFG #: 7100006809
3M™
3238.61000
/ ea
3M 5777A-MT Series Cold Shrink Resin QS-III Inline Trifurcating Cable Splice Kit is designed for splicing 5/8 to 15 kV shielded power cables. The cold shrink design ensures a quick installation and cable size transitions. This armored or non-armored splice kit is perfect for use in cable trays, cable racks, junction boxes and cable hangers, as well as aerial and wet or dry locations.
- Brochure URL - 11579_R2F9PC3ZYODNAM4W.pdf(Brochure URL)
- Brochure URL - 3m-cold-shrink-qs-iii-a-series-silicone-rubber-splice-brochure.pdf(Brochure URL)
- Compliance Cert URL - Scotch_054007_10083_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.3m.com(Seller Home Page URL)
- Install Instructions 1 URL - 11579_IDWE5XY8T4NJ0RO7.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - qs-iii-5777a-mt-splicing-kit.pdf(Install Instructions 1 URL)
- Install Instructions URL - qs-iii-5777a-mt-splicing-kit.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - ndnzxfvrbc8kr7dnft86.pdf(Safety Data Sheet URL)
- Seller Home Page URL - Country(Seller Home Page URL)
- Spec Sheet URL - 11579_63DHCRIEVMYATK90.pdf(Spec Sheet URL)
- Spec Sheet URL - qs-iii-5775a-mt-5776a-mt-5777a-mt-kits.pdf(Spec Sheet URL)
- Tech Drawing URL - 11579_ID-DRW-v1-DS577XA-MT.pdf(Tech Drawing URL)
- Tech Drawing URL - mediawebserver?mwsId=SSSSSufSevTsZxtU48tZlx_vevUqevTSevTSevTSeSSSSSS--(Tech Drawing URL)
- Features
| Splices shielded cables |
| Silicon rubber splice body provides good high and low temperature performance and armor cast jacket offers mechanical protection |
| Suitable for use with 10000 and 20000 series connectors or other ul listed in-line compression connectors |
| Solderless ground braid offers constant force spring connection |
| Cold shrink design ensures a quick installation and cable size transitions, armored or non-armored splice kit is perfect for use in cable trays, cable racks, junction boxes and cable hangers, as well as aerial and wet or dry locations |
| 3M trifurcating accessory for 3-C to 3 single conductors MT-E |
| 0.8 to 1.84 in OD connector |
| 6.75 in aluminum/copper max length, 7.5 in copper max length |
| 1090 psi tensile strength |
| 610% elongation |
| 370 V/mil dielectric strength |
| 350 kcmil, 500 kcmil, 750 kcmil, (15 kV), 750 kcmil, 1000 kcmil (5/8 kV) conductor size |
| 1/case |
| 1/Case |
