SKU622340
MFGR #7000031664
Your Cost: $3,641.42/ea

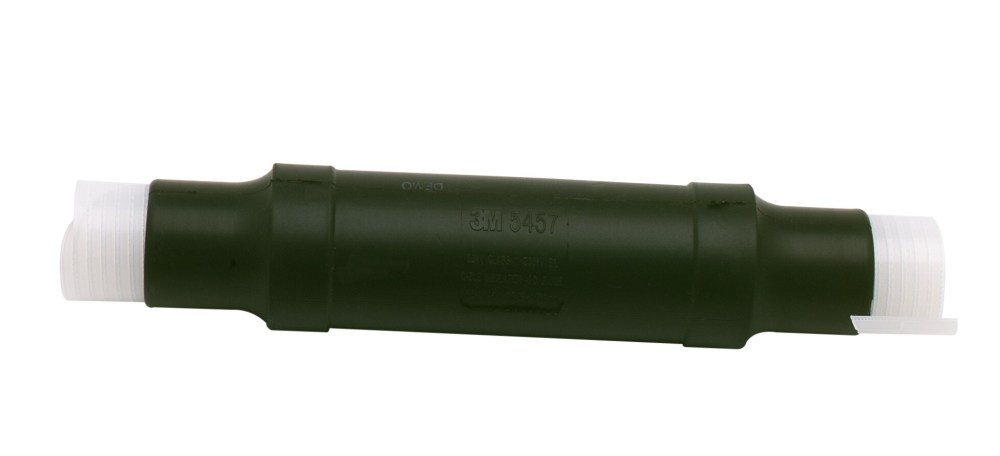

List: 3M 5776A-MT Series Cold Shrink Resin QS-III Inline Trifurcating Cable Splice Kit is designed for splicing 5/8 to 15 kV shielded power cables. The cold shrink design ensures a quick installation and cable size transitions. This armored or non-armored splice kit is perfect for use in cable trays, cable racks, junction boxes and cable hangers, as well as aerial and wet or dry locations.
3M 5776A-MT Series Cold Shrink Resin QS-III Inline Trifurcating Cable Splice Kit is designed for splicing 5/8 to 15 kV shielded power cables. The cold shrink design ensures a quick installation and cable size transitions. This armored or non-armored splice kit is perfect for use in cable trays, cable racks, junction boxes and cable hangers, as well as aerial and wet or dry locations.
Alternate Catalog Number 5776A-MT ARRA Compliant X Buy American Compliant X Cable Type Tape Shield Catalog Number 7000031664 Color Black Connector Type In-Line Trifurcating Country of Origin US Currency USD Dimensions 5.9 in Dia EU RoHS Indicator C Expiry|Spoilage Date Applicable Indicator Y Gross Weight Per Pack 27.0000 lb Gross Weight per Pack Metric 12.25 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8546900000 Height 11.00 in Height [Metric] 27.9400 cm Insulation Size 0.84 to 1.38 in OD Length 28.40 in Length [Metric] 72.1360 cm Number Of Conductors 3 Returnable Y Standards ARRA, Buy American Act, RoHS Compliant, IEEE 404, UL listed Temperature Rating 105 to 140 °C Type Cold Shrink QS-III UNSPSC 30000000 UPC 11 05400744112 UPC 12 054007441120 Width 15.90 in Width [Metric] 40.3860 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Conductor Size 4/0 AWG, 250, 350, 500 kcmil Material Silicon Rubber Splice Length 54 in Voltage Rating 5/8 to 15 kVA Splices shielded cables Silicon rubber splice body provides good high and low temperature performance and armor cast jacket offers mechanical protection Suitable for use with 10000 and 20000 series connectors or other ul listed in-line compression connectors Solderless ground braid offers constant force spring connection Cold shrink design ensures a quick installation and cable size transitions, armored or non-armored splice kit is perfect for use in cable trays, cable racks, junction boxes and cable hangers, as well as aerial and wet or dry locations 3M trifurcating accessory for 3-C to 3 single conductors MT-E (MT-E: 5/8 kV, 500 kcmil, 15 kV, 350 kcmil to 500 kcmil) 0.69 to 1.38 in OD connector 5 in aluminum/copper maximum length, 5.75 in copper maximum length 1090 psi tensile strength 610% elongation 370 V/mil dielectric strength 250 kcmil, 500 kcmil, 4/0 AWG, 350 kcmil (15 kV), 500 kcmil, 350 kcmil (5/8 kV) conductor size 1/case 1/Case
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 5776A-MT |
| ARRA Compliant | X |
| Buy American Compliant | X |
| Cable Type | Tape Shield |
| Catalog Number | 7000031664 |
| Color | Black |
| Connector Type | In-Line Trifurcating |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 5.9 in Dia |
| EU RoHS Indicator | C |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Gross Weight Per Pack | 27.0000 lb |
| Gross Weight per Pack Metric | 12.25 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8546900000 |
| Height | 11.00 in |
| Height [Metric] | 27.9400 cm |
| Insulation Size | 0.84 to 1.38 in OD |
| Length | 28.40 in |
| Length [Metric] | 72.1360 cm |
| Number Of Conductors | 3 |
| Returnable | Y |
| Standards | ARRA, Buy American Act, RoHS Compliant, IEEE 404, UL listed |
| Temperature Rating | 105 to 140 °C |
| Type | Cold Shrink QS-III |
| UNSPSC | 30000000 |
| UPC 11 | 05400744112 |
| UPC 12 | 054007441120 |
| Width | 15.90 in |
| Width [Metric] | 40.3860 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Conductor Size | 4/0 AWG, 250, 350, 500 kcmil |
| Material | Silicon Rubber |
| Splice Length | 54 in |
| Voltage Rating | 5/8 to 15 kVA |
| Splices shielded cables |
| Silicon rubber splice body provides good high and low temperature performance and armor cast jacket offers mechanical protection |
| Suitable for use with 10000 and 20000 series connectors or other ul listed in-line compression connectors |
| Solderless ground braid offers constant force spring connection |
| Cold shrink design ensures a quick installation and cable size transitions, armored or non-armored splice kit is perfect for use in cable trays, cable racks, junction boxes and cable hangers, as well as aerial and wet or dry locations |
| 3M trifurcating accessory for 3-C to 3 single conductors MT-E (MT-E: 5/8 kV, 500 kcmil, 15 kV, 350 kcmil to 500 kcmil) |
| 0.69 to 1.38 in OD connector |
| 5 in aluminum/copper maximum length, 5.75 in copper maximum length |
| 1090 psi tensile strength |
| 610% elongation |
| 370 V/mil dielectric strength |
| 250 kcmil, 500 kcmil, 4/0 AWG, 350 kcmil (15 kV), 500 kcmil, 350 kcmil (5/8 kV) conductor size |
| 1/case |
