SKU919832
MFGR #7100164797
Your Cost: $1,361.20/ea

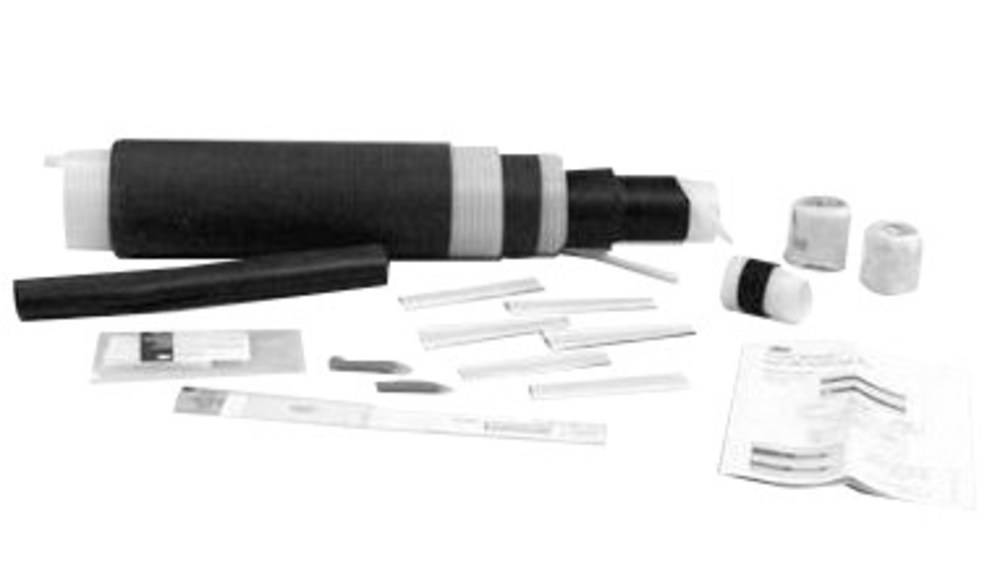

List: 3M 5515A Series Cold Shrink QS-III Splice Kit is a 15kV class inline splice designed to join tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables. The cold shrink design fits type MV-90 cables with copper or aluminum conductors while ensuring a quick installation and excellent cable size transitions. The kit is 15,000 amps-rated for faults current protection.
3M 5515A Series Cold Shrink QS-III Splice Kit is a 15kV class inline splice designed to join tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables. The cold shrink design fits type MV-90 cables with copper or aluminum conductors while ensuring a quick installation and excellent cable size transitions. The kit is 15,000 amps-rated for faults current protection.
Alternate Catalog Number 5516A-750-CU ARRA Compliant X Buy American Compliant X Cable Type Longitudinally Corrugated (LC)/Tape Shield/UniShield®/Wire Shield Catalog Number 7100164797 Color Black Connector 10019 Connector Type In-Line Country of Origin US Currency USD Dimensions 3 in Dia EU RoHS Indicator C Expiry|Spoilage Date Applicable Indicator Y Gross Weight Per Pack 11.0000 lb Gross Weight per Pack Metric 4.99 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8546900000 Height 8.30 in Height [Metric] 21.0820 cm Insulation Size 1.08 to 1.7 in OD Length 25.70 in Length [Metric] 65.2780 cm Number Of Conductors 1 Returnable Y Series 5516A Standards ARRA CompliantBuy American Act CompliantRoHS CompliantIEEE 404 Temperature Rating 105 to 140 °C Type Cold Shrink QS-III UNSPSC 26121600 UPC 11 05400743255 UPC 12 054007432555 Width 7.70 in Width [Metric] 19.5580 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Conductor Size 750 kcmil Material Silicon Rubber Splice Length 32 in Voltage Rating 15 kV In-line splice for joining tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface Designed for feeder and distribution circuits, it transitions from shielded to neutral power cables and fits type MV-90 cables Silicon rubber splice body provides good high and low temperature performance and the EPDM rubber jacket offers physical protection Factory tested partial discharge and AC ensure reliability Copper conductor 0.8 to 1.84 in OD connector 6.75 in aluminum/copper compression length, 7.5 in copper compression length, 7.83 in shear bolt connector length 1090 psi tensile strength 610% elongation 370 V/mil dielectric strength 1/case
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 5516A-750-CU |
| ARRA Compliant | X |
| Buy American Compliant | X |
| Cable Type | Longitudinally Corrugated (LC)/Tape Shield/UniShield®/Wire Shield |
| Catalog Number | 7100164797 |
| Color | Black |
| Connector | 10019 |
| Connector Type | In-Line |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 3 in Dia |
| EU RoHS Indicator | C |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Gross Weight Per Pack | 11.0000 lb |
| Gross Weight per Pack Metric | 4.99 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8546900000 |
| Height | 8.30 in |
| Height [Metric] | 21.0820 cm |
| Insulation Size | 1.08 to 1.7 in OD |
| Length | 25.70 in |
| Length [Metric] | 65.2780 cm |
| Number Of Conductors | 1 |
| Returnable | Y |
| Series | 5516A |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantIEEE 404 |
| Temperature Rating | 105 to 140 °C |
| Type | Cold Shrink QS-III |
| UNSPSC | 26121600 |
| UPC 11 | 05400743255 |
| UPC 12 | 054007432555 |
| Width | 7.70 in |
| Width [Metric] | 19.5580 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Conductor Size | 750 kcmil |
| Material | Silicon Rubber |
| Splice Length | 32 in |
| Voltage Rating | 15 kV |
| In-line splice for joining tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables |
| Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface |
| Designed for feeder and distribution circuits, it transitions from shielded to neutral power cables and fits type MV-90 cables |
| Silicon rubber splice body provides good high and low temperature performance and the EPDM rubber jacket offers physical protection |
| Factory tested partial discharge and AC ensure reliability |
| Copper conductor |
| 0.8 to 1.84 in OD connector |
| 6.75 in aluminum/copper compression length, 7.5 in copper compression length, 7.83 in shear bolt connector length |
| 1090 psi tensile strength |
| 610% elongation |
| 370 V/mil dielectric strength |
| 1/case |
