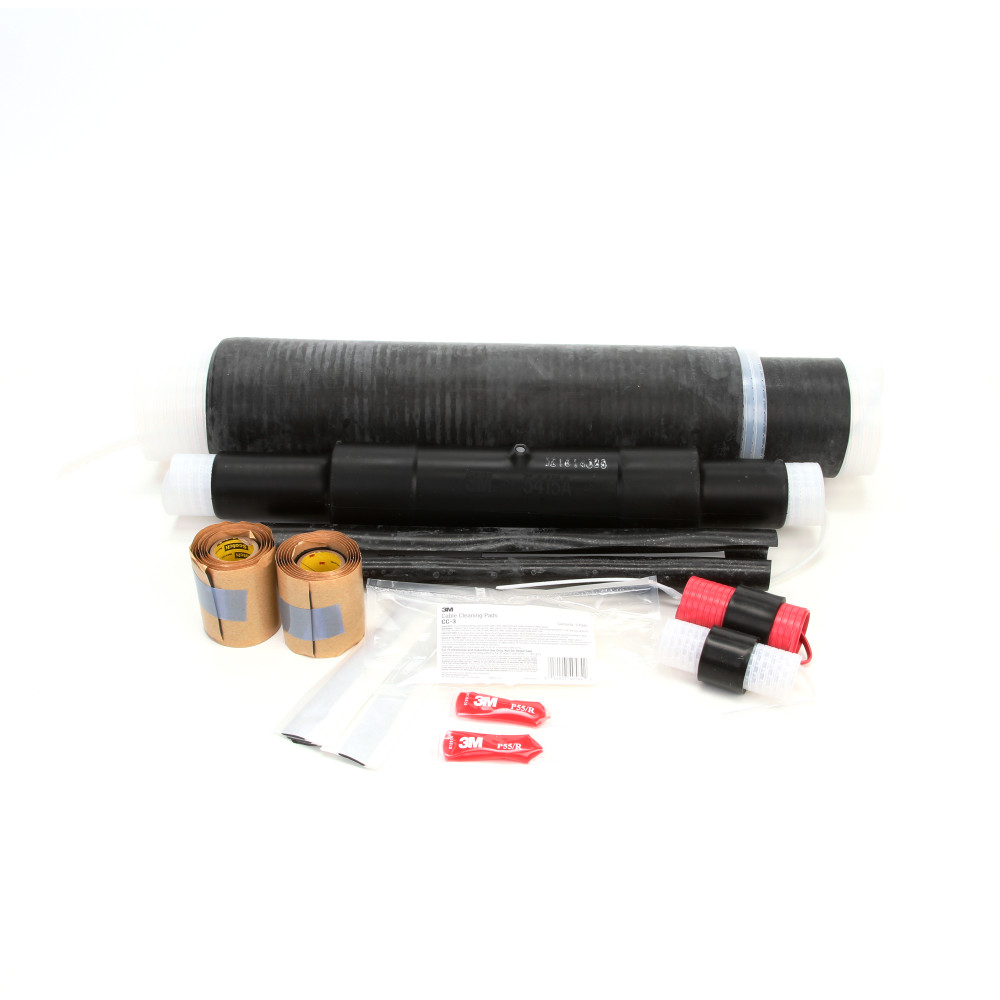

3M™ 5417A Cold Shrink QS-III Splice Kit, 15 kVAC, 750 kcmil Conductor, 32 in L Splice, Silicon Rubber
High Voltage Cable Joining Kit
260336
MFG #: 054007-04587
3M
752.06000
/ ea
3M 5417A Series Cold Shrink QS-III Splice Kit is a 15kV class inline splice designed to join jacketed concentric neutral (JCN) and concentric neutral (CN) power cables. The cold shrink design fits type MV-90 cables with aluminum conductors while ensuring a quick installation and excellent cable size transitions.
- WEB BROCHURE URL - 3m-cold-shrink-qs-iii-a-series-silicone-rubber-splice-brochure.pdf(WEB BROCHURE URL)
- WEB COMPLIANCE CERT URL - Scotch_054007_10083_Compliance_Certificate.pdf(WEB COMPLIANCE CERT URL)
- WEB INSTALL INSTR URL - qs-iii-5417a-splice-kit.pdf(WEB INSTALL INSTR URL)
- WEB LINE DRAWING URL(WEB LINE DRAWING URL)
- WEB SDS URL - mediawebserver?mwsId=SSSSSuUn_zu8l00xl8m1m8mBMv70k17zHvu9lxtD7SSSSSS--(WEB SDS URL)
- WEB SELLER HOME PAGE URL - Country(WEB SELLER HOME PAGE URL)
- WEB SPEC SHEET URL - 3mtm-cold-shrink-qs-iii-inline-splice-kits-15-kv.pdf(WEB SPEC SHEET URL)
- WEB TECH DRAWING URL - mediawebserver?mwsId=SSSSSufSevTsZxtU48tZlx_SevUqevTSevTSevTSeSSSSSS--(WEB TECH DRAWING URL)
- Applications
- Features
| Size Transition Splicing, Direct Burial and Submerged Locations Applications |
| In-line splice for joining jacketed concentric neutral (JCN) and concentric neutral (CN) power cables |
| Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface |
| Silicon rubber splice body provides good high and low temperature performance and the EPDM rubber jacket offers physical protection |
| Factory tested partial discharge and AC ensure reliability |
| Polyolefin foam conductor |
| 0.8 to 1.84 in OD connector |
| 6.75 in aluminum/copper compression length, 7.5 in copper compression length, 6.93 in shear bolt connector length |
| 1090 psi tensile strength |
| 610% elongation |
| 370 V/mil dielectric strength |
| 1/case |
| 1/Case |
