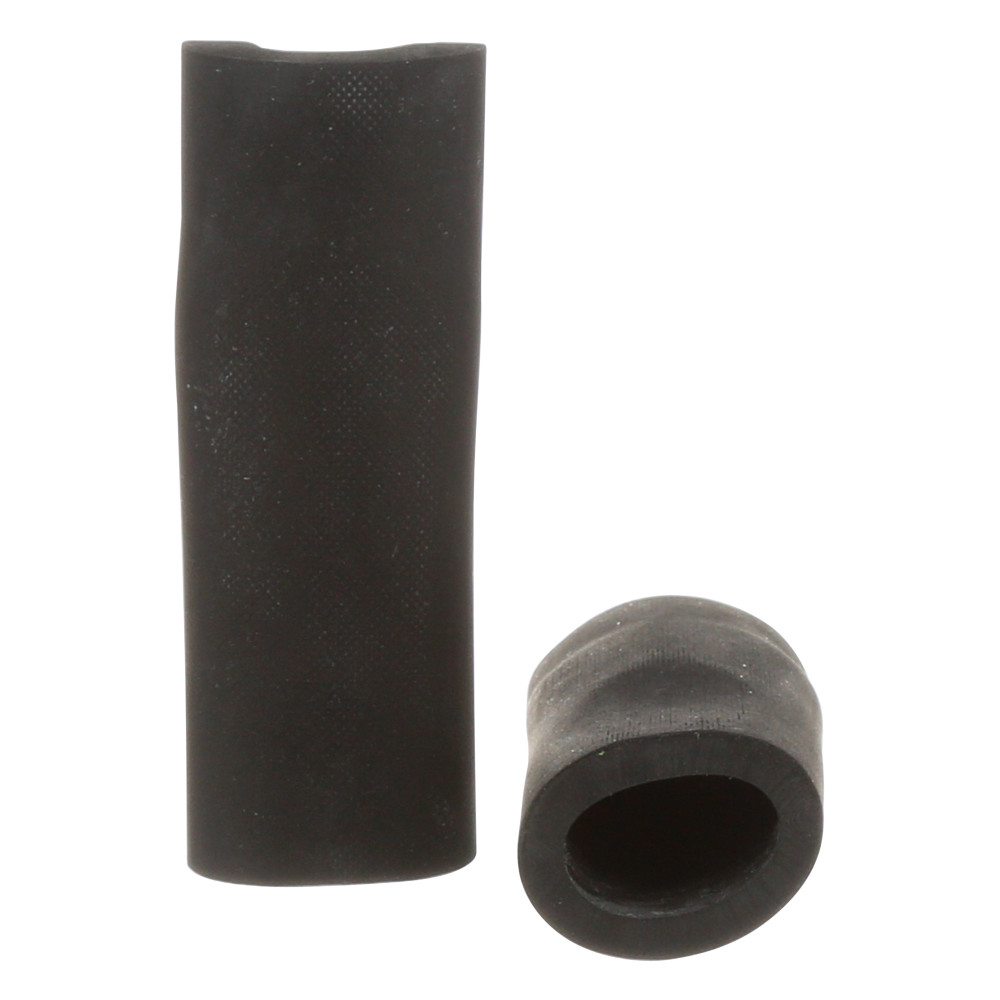

3M™ 5300 Pigtail Motor Lead Splice Kit, 0- 1000 V, 10 to 4 AWG Feeder Cable, 12 to 4 AWG Motor Lead Conductor
Insulated Splice Kit, Low Voltage
830428
MFG #: 5301
3M™
93.45000
/ ea
3M 5300 Series Motor Lead Pigtail Splice Kit is perfect to use with copper compression, 1-hole lugs. It is designed to splice motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000V or less. The kit can make 3 splices and can be used on cables that can withstand a maximum temperature of 194 degrees F (90 degrees C).
- Seller Home Page URL - Country(Seller Home Page URL)
- WEB COMPLIANCE CERT URL - Scotch_054007_10083_Compliance_Certificate.pdf(WEB COMPLIANCE CERT URL)
- WEB INSTALL INSTR URL - motor-lead-pigtail-splice-kits-5300-5301.pdf(WEB INSTALL INSTR URL)
- WEB SDS URL - t15pdulyob7qityw3ssm.pdf(WEB SDS URL)
- WEB SPEC SHEET URL - motor-lead-splicing-kits-5300-series.pdf(WEB SPEC SHEET URL)
- Applications
- Features
| motor lead 12-14 AWG |
| Fast and simple installation |
| No torches or heat source required |
| No special tools required to install splice |
| Thick walls to resist puncture and abrasion damage |
| High dielectric constant stress control included with 5/8 kV kits for shielded feeder cables for minimizing size and electrical stress |
| Easy re-entry, can be used on cables with a rated operating temperature of 90 deg C and an emergency overload rating of 130 deg C, to splice (insulate and seal) motor lead connections for 1000 VAC and less cables sized 16 AWG to 500 kcmil |
| Suitable for use with 30000 series copper compression lugs or other ul listed copper lugs |
| 365 V/mil dielectric strength |
| 750% elongation |
| 1400 psi tensile strength |
| 1/2 in maximum bolt length |
| Polyethylene cable |
| 10 to 4 AWG feeder cable, 12 to 4 AWG motor lead conductor size |
