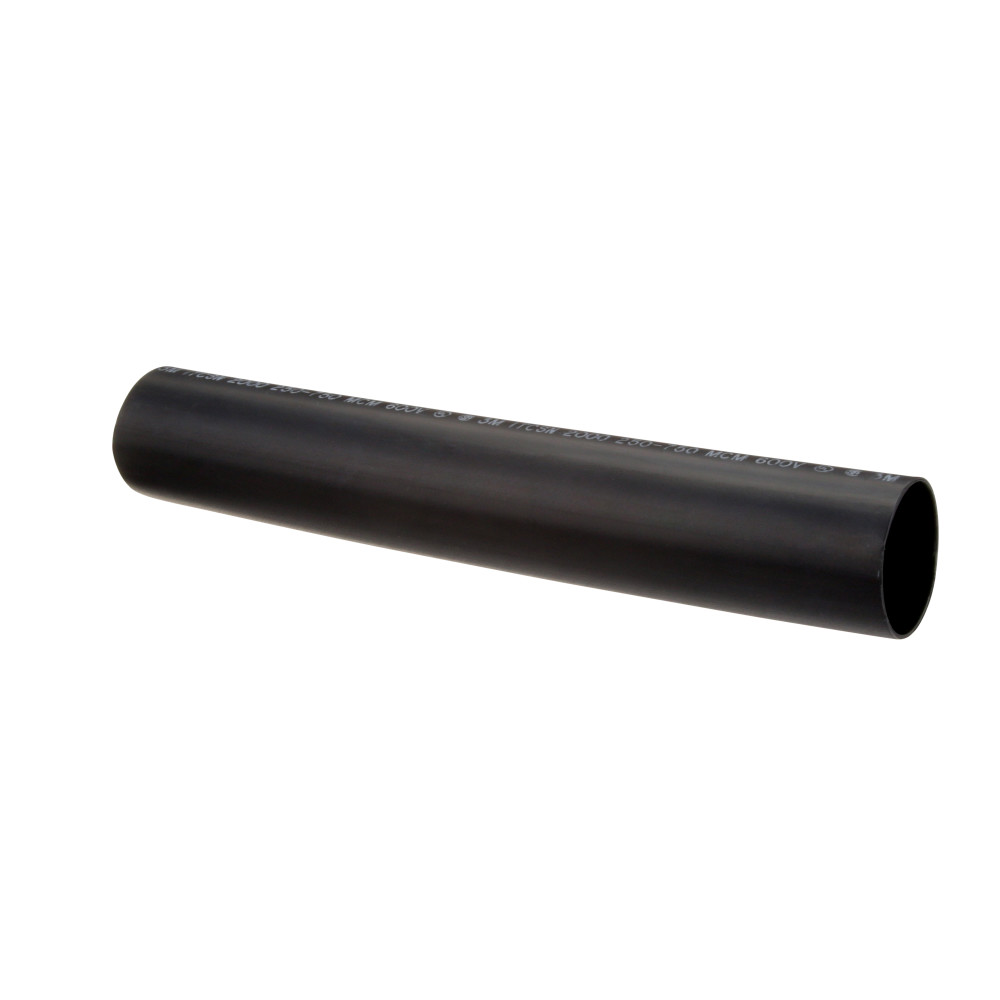

3M™ 054007-08899 Heat Shrink Cable Sleeve, 2 in ID Expanded, 0.65 in ID Recovered, 12 in L, Polyolefin
Heat Shrink Tubing
299832
MFG #: 7000132375
3M™
27.39000
/ ea
3M™ Heat Shrinkable Cable Sleeves ITCSN provide reliable performance for electrical splices, connections and terminations, as well as mechanical and environmental protection. This cable sleeve comes in a length of 12 in. 3M™ Heat Shrinkable Heavy-wall Cable Sleeves ITCSN are cross-linked polyolefin. They are highly split resistant and fast shrinking to provide rapid installation. The cut-to-length sleeves come standard with a factory-applied adhesive/sealant. Order any of several packaging choices or look for the counter merchandiser assortment at a 3M authorized distributor. Rated to 1 kV, UL Listed 486 D for 600V. File Number E102356. CSA Rating. When ordering, please specify boxed, bulk, tamper evident bag or merchandising display to assure proper pricing.
- Brochure URL - 11579_VSC1XBI6QGFERT0W.pdf(Brochure URL)
- Catalog URL - 3M_051128_60132_Catalog.pdf(Catalog URL)
- Data Sheet 1 URL - 3M_5400708966_Data_Sheet.pdf(Data Sheet 1 URL)
- http://www.3m.com(Seller Home Page URL)
- Limited(Warranty URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - mediawebserver?mwsId=SSSSSu9n_zu8l00xM829P8tx4v70k17zHvu9lxtD7xtBevSSSSSS-(Safety Data Sheet URL)
- Seller Home Page URL - Country(Seller Home Page URL)
- Spec Sheet URL - 11579_24ZR1VGD05L7TJ93.pdf(Spec Sheet URL)
- Spec Sheet URL - 3mtm-heavy-wall-heat-shrink-tubing-itcsn.pdf(Spec Sheet URL)
- Tech Drawing URL - 11579_YWREXUFCKAP2HM14.pdf(Tech Drawing URL)
- Tech Drawing URL - mediawebserver?mwsId=66666UF6EVsSyXTt4XM6Oxs6EVtQEVs6EVs6EVs6E666666--(Tech Drawing URL)
- Features
| Adhesive lined |
| Flame-retardant |
| UL rated to 600 VAC, can be used up to 1 kV |
| Heat shrink splice type |
| Fast and easy installation |
| Thick wall top resists puncture and abrasion damage |
| Rugged weather resistant protection |
| Versatile, a minimum number of sizes cover the entire range of applications |
| Shrink ratio as high as 4:1 |
| Resists acids and alkalies |
| UV resistant |
| 2400 psi ultimate tensile strength |
| 475% ultimate elongation |
| Primary electrical insulation for solid dielectric wire and cable rated to 1000 VAC |
| Direct buried or submersible |
| Insulating secondary splices |
| Physical protection and moisture sealing of high voltage air insulated connectors and lugs, such as lug connections to bus bars |
| Relocation of service |
| 1.28 specific gravity |
