SKU952179
MFGR #7100025928
Your Cost: $74.77/ea

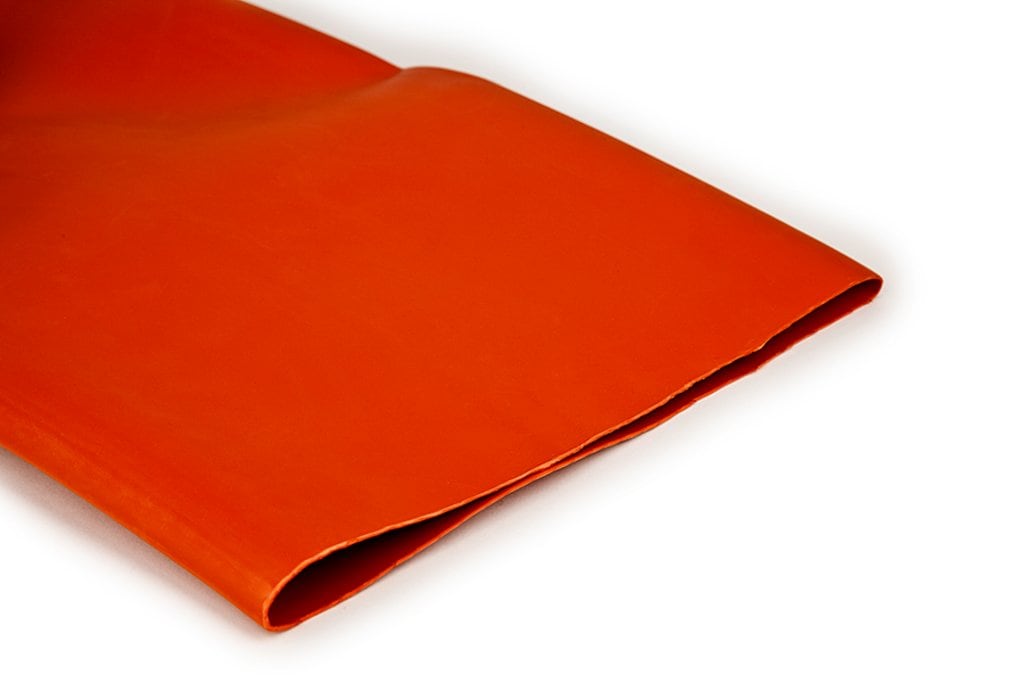

List: 3M™ tubing BBI-A is made of specially-formulated, cross-linked, flame-retardant, track-resistant polyolefin that will shrink to fit rectangular, square or round bus bars. BBI-A will handle voltage ranges from 600 V to 35 kV, reducing your inventory requirements and saving you time and money. The BBI-A material has a high resistance to splitting, while providing the flexibility to conform to bends in certain applications. Superior split resistance can prevent insulation failures and resulting downtimes. BBI-A is unaffected by normal cleaning fluids and is resistant to physical damage. Good thermal endurance (up to 110(deg)C/ 230(deg)F) contributes to longer life and more stable performance. Excellent dielectric strength allows the required space between bus bars and metal enclosures to be substantially reduced. Closer spacing reduces both the overall size of the assembly and the overall cost.
3M™ tubing BBI-A is made of specially-formulated, cross-linked, flame-retardant, track-resistant polyolefin that will shrink to fit rectangular, square or round bus bars. BBI-A will handle voltage ranges from 600 V to 35 kV, reducing your inventory requirements and saving you time and money. The BBI-A material has a high resistance to splitting, while providing the flexibility to conform to bends in certain applications. Superior split resistance can prevent insulation failures and resulting downtimes. BBI-A is unaffected by normal cleaning fluids and is resistant to physical damage. Good thermal endurance (up to 110(deg)C/ 230(deg)F) contributes to longer life and more stable performance. Excellent dielectric strength allows the required space between bus bars and metal enclosures to be substantially reduced. Closer spacing reduces both the overall size of the assembly and the overall cost.
Alternate Catalog Number BBI8ARD50' ARRA Compliant X Buy American Compliant X Catalog Number 7100025928 Country of Origin US Currency USD EU RoHS Indicator Y Expiry|Spoilage Date Applicable Indicator Y Gross Weight Per Pack 35.3000 lb Gross Weight per Pack Metric 16.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 3926909985 Height 17.64 in Height [Metric] 44.8056 cm Length [Metric] 32.2834 cm Material Composition Declaration RoHS 2011/65/EU compliant without exemption Returnable Y Shrink Temperature 250 °F Standard ASTM, IEC, ANSI/IEEE Standards RoHS 2011/65/EUANSI SpecifiedIEEE C37.20 Temperature Rating 230 °F Type Flame-Retardant UNSPSC 39120000 UPC 11 05113535737 UPC 12 051135357378 Voltage Rating 8/5/15/25 kVA Width 12.63 in Width [Metric] 32.0802 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Color Orange/Red Inner Diameter Expanded 8-1/4 in Inner Diameter Recovered 3.18 in Length 12.71 in Material Cross Linked Polyolefin Wall Thickness Recovered 0.128 in Made of specially formulated, cross linked, track-resistant polyolefin that will shrink to fit rectangular, square or round bus bars Designed for insulating rectangular, square and round bus bar rated from 5 kV through 35 kV It will also cover and insulate inline bolted connections of rectangular bus bars The material has high resistance to splitting, good solvent resistance and excellent tracking resistance properties The tubing shrinks easily with industry standard methods, forming an aesthetically appealing insulation cover Excellent physical properties Good thermal endurance Tight fit provides good heat dissipation Unaffected by normal cleaning fluids and is resistant to physical damage and high temperatures Excellent split resistance may prevent insulation failures and resulting downtimes Closer spacing reduces both the overall size of the assembly and the overall cost 550 V/mil dielectric strength 2200 psi tensile strength 400% elongation 50 ft/case
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | BBI8ARD50' |
| ARRA Compliant | X |
| Buy American Compliant | X |
| Catalog Number | 7100025928 |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Gross Weight Per Pack | 35.3000 lb |
| Gross Weight per Pack Metric | 16.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 3926909985 |
| Height | 17.64 in |
| Height [Metric] | 44.8056 cm |
| Length [Metric] | 32.2834 cm |
| Material Composition Declaration | RoHS 2011/65/EU compliant without exemption |
| Returnable | Y |
| Shrink Temperature | 250 °F |
| Standard | ASTM, IEC, ANSI/IEEE |
| Standards | RoHS 2011/65/EUANSI SpecifiedIEEE C37.20 |
| Temperature Rating | 230 °F |
| Type | Flame-Retardant |
| UNSPSC | 39120000 |
| UPC 11 | 05113535737 |
| UPC 12 | 051135357378 |
| Voltage Rating | 8/5/15/25 kVA |
| Width | 12.63 in |
| Width [Metric] | 32.0802 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Color | Orange/Red |
| Inner Diameter Expanded | 8-1/4 in |
| Inner Diameter Recovered | 3.18 in |
| Length | 12.71 in |
| Material | Cross Linked Polyolefin |
| Wall Thickness Recovered | 0.128 in |
| Made of specially formulated, cross linked, track-resistant polyolefin that will shrink to fit rectangular, square or round bus bars |
| Designed for insulating rectangular, square and round bus bar rated from 5 kV through 35 kV |
| It will also cover and insulate inline bolted connections of rectangular bus bars |
| The material has high resistance to splitting, good solvent resistance and excellent tracking resistance properties |
| The tubing shrinks easily with industry standard methods, forming an aesthetically appealing insulation cover |
| Excellent physical properties |
| Good thermal endurance |
| Tight fit provides good heat dissipation |
| Unaffected by normal cleaning fluids and is resistant to physical damage and high temperatures |
| Excellent split resistance may prevent insulation failures and resulting downtimes |
| Closer spacing reduces both the overall size of the assembly and the overall cost |
| 550 V/mil dielectric strength |
| 2200 psi tensile strength |
| 400% elongation |
| 50 ft/case |
