SKU449372
MFGR #7100025926
Your Cost: $68.31/ea

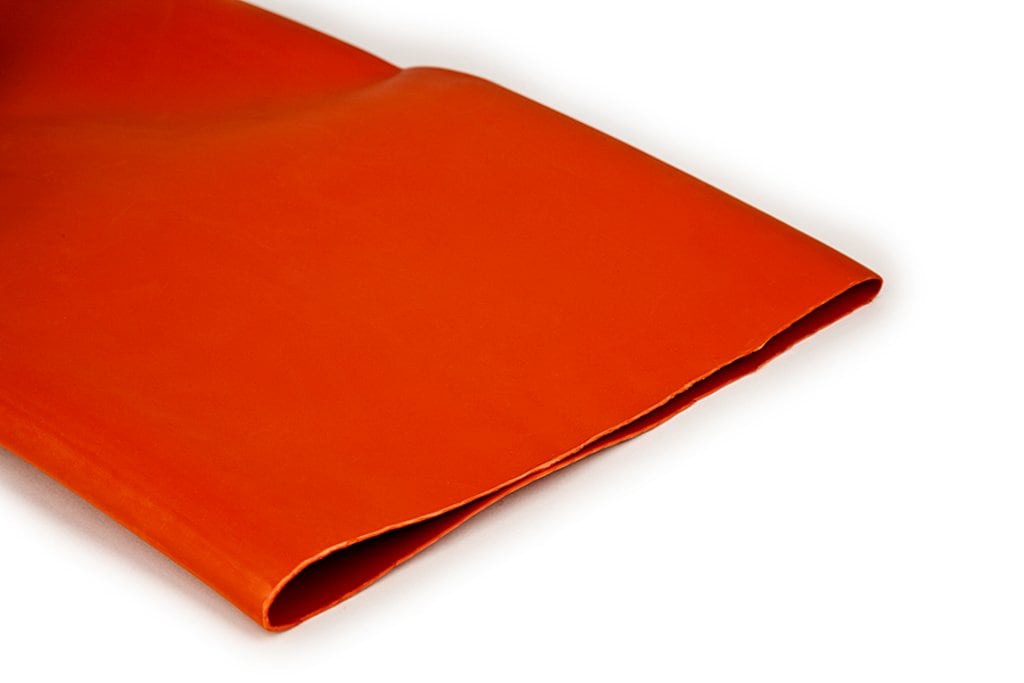

List: 3M™ tubing BBI-A will handle voltage ranges from 600 V to 35 kV, reducing your inventory requirements and saving you time and money. the BBI-A material has a high resistance to splitting, while providing the flexibility to conform to bends in certain applications. superior split resistance can prevent insulation failures and resulting downtimes. BBI-A is unaffected by normal cleaning fluids and is resistant to physical damage. good thermal endurance (up to 110(deg)C/ 230(deg)F) contributes to longer life and more stable performance. excellent dielectric strength allows the required space between bus bars and metal enclosures to be substantially reduced. Closer spacing reduces both the overall size of the assembly, and the overall cost. Note: bus bar is packaged one roll per case, 20 or 50 feet long.
3M™ tubing BBI-A will handle voltage ranges from 600 V to 35 kV, reducing your inventory requirements and saving you time and money. the BBI-A material has a high resistance to splitting, while providing the flexibility to conform to bends in certain applications. superior split resistance can prevent insulation failures and resulting downtimes. BBI-A is unaffected by normal cleaning fluids and is resistant to physical damage. good thermal endurance (up to 110(deg)C/ 230(deg)F) contributes to longer life and more stable performance. excellent dielectric strength allows the required space between bus bars and metal enclosures to be substantially reduced. Closer spacing reduces both the overall size of the assembly, and the overall cost. Note: bus bar is packaged one roll per case, 20 or 50 feet long.
Alternate Catalog Number BBI7ARD20' ARRA Compliant X Buy American Compliant X Catalog Number 7100025926 Country of Origin US Currency USD EU RoHS Indicator Y Expiry|Spoilage Date Applicable Indicator Y Gross Weight Per Pack 12.1000 lb Gross Weight per Pack Metric 5.49 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 3926909985 Height 6.20 in Height [Metric] 15.7480 cm Length [Metric] 34.1884 cm Material Composition Declaration RoHS 2011/65/EU compliant without exemption Returnable Y Shrink Temperature 250 °F Standard ASTM, IEC, ANSI/IEEE Standards IEC CertifiedANSI/IEEE CertifiedRoHS Compliant Temperature Rating 110 °C Type Busbar UNSPSC 32000000 UPC 11 05113535734 UPC 12 051135357347 Voltage Rating 5 to 35 kVA Width 10.38 in Width [Metric] 26.3652 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Color Red Inner Diameter Expanded 6.78 in Inner Diameter Recovered 2.55 in Length 13.46 in Material Polyolefin Wall Thickness Recovered 0.13 in 10^13 Ohm-cm volume resistivity Low temperature flexibility 550 V/mil dielectric strength 0.3% water absorption Heat shock 0.048 in THK expanded wall
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
Alternate Catalog Number | BBI7ARD20' |
ARRA Compliant | X |
Buy American Compliant | X |
Catalog Number | 7100025926 |
Country of Origin | US |
Currency | USD |
EU RoHS Indicator | Y |
Expiry|Spoilage Date Applicable Indicator | Y |
Gross Weight Per Pack | 12.1000 lb |
Gross Weight per Pack Metric | 5.49 |
Gross Weight UOM Metric | kg |
Harmonization Tariff Schedule Code | 3926909985 |
Height | 6.20 in |
Height [Metric] | 15.7480 cm |
Length [Metric] | 34.1884 cm |
Material Composition Declaration | RoHS 2011/65/EU compliant without exemption |
Returnable | Y |
Shrink Temperature | 250 °F |
Standard | ASTM, IEC, ANSI/IEEE |
Standards | IEC CertifiedANSI/IEEE CertifiedRoHS Compliant |
Temperature Rating | 110 °C |
Type | Busbar |
UNSPSC | 32000000 |
UPC 11 | 05113535734 |
UPC 12 | 051135357347 |
Voltage Rating | 5 to 35 kVA |
Width | 10.38 in |
Width [Metric] | 26.3652 cm |
Stock Status | NONSTOCK |
Brand | 3M™ |
Manufacturer | 3M™ |
Color | Red |
Inner Diameter Expanded | 6.78 in |
Inner Diameter Recovered | 2.55 in |
Length | 13.46 in |
Material | Polyolefin |
Wall Thickness Recovered | 0.13 in |
10^13 Ohm-cm volume resistivity |
Low temperature flexibility |
550 V/mil dielectric strength |
0.3% water absorption |
Heat shock |
0.048 in THK expanded wall |
