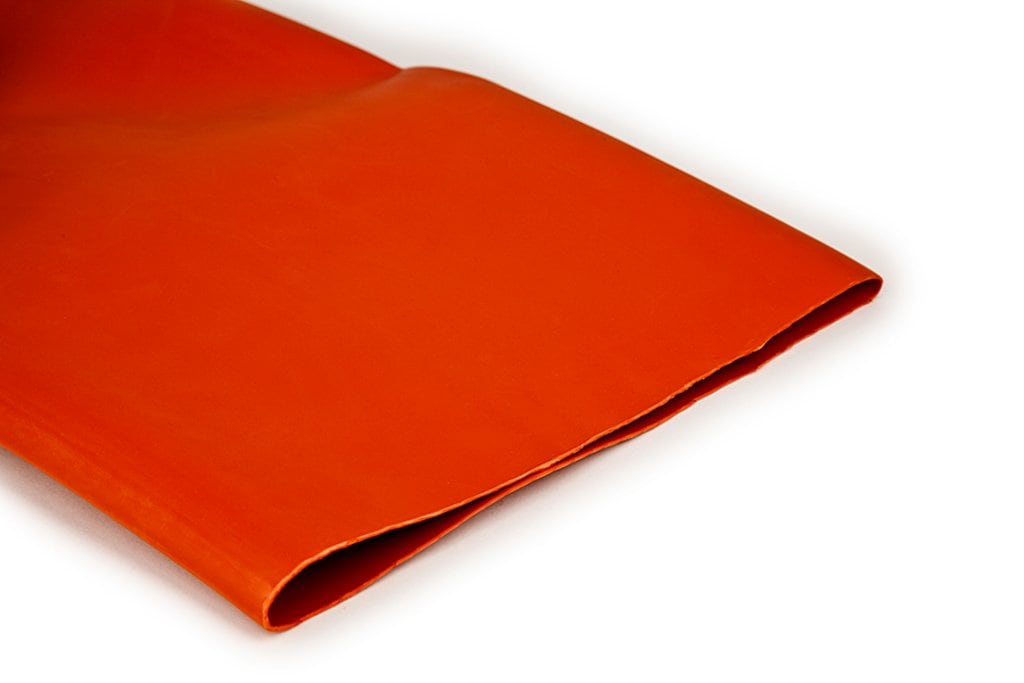

3M™ 051135-35728 Bus Bar Heat Shrink Tubing, 4.35 in ID Expanded, 1.67 in ID Recovered, 0.113 in Wall THK Recovered
Heat Shrink Tubing
335205
MFG #: 7100025923
3M™
30.96000
/ ea
3M™ tubing BBI-A will handle voltage ranges from 600 V to 35 kV, reducing your inventory requirements and saving you time and money. the BBI-A material has a high resistance to splitting, while providing the flexibility to conform to bends in certain applications. superior split resistance can prevent insulation failures and resulting downtimes. BBI-A is unaffected by normal cleaning fluids and is resistant to physical damage. good thermal endurance (up to 110(deg)C/ 230(deg)F) contributes to longer life and more stable performance. excellent dielectric strength allows the required space between bus bars and metal enclosures to be substantially reduced. Closer spacing reduces both the overall size of the assembly, and the overall cost. Note: bus bar is packaged one roll per case, 20 or 50 feet long.
- Catalog 1 URL - 3M_051128_60132_Catalog.pdf(Catalog 1 URL)
- Catalog URL - 3M_051135_36700_Catalog.pdf(Catalog URL)
- Install Instructions URL - bbi-a-heat-shrinkable-tubing-for-bus-bar.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - mediawebserver?mwsId=SSSSSu9n_zu8l00xl82Bm8mZlv70k17zHvu9lxtD7xtBevSSSSSS-(Safety Data Sheet URL)
- Seller Home Page URL - Country(Seller Home Page URL)
- Spec Sheet URL - heat-shrinkable-tubing-for-bus-bar-bbi-a-series.pdf(Spec Sheet URL)
- Tech Drawing URL - mediawebserver?mwsId=SSSSSufSevTsZxtUNx_U58TSevUqevTSevTSevTSeSSSSSS--(Tech Drawing URL)
- Features
Heat shrinkable tubing for bus bar BBI-A series is designed for insulating rectangular, square and round bus barrated from 5 to 35 kV |
It will also cover and insulate inline bolted connections of rectangular bus bars |
Polyolefin has high resistance to splitting, good solvent resistance and excellent tracking resistance properties |
Tubing shrinks easily with industry standard methods, forming an aesthetically appealing insulation cover |
For 5, 8, 15, 25 and 35 kV voltage ratings, copper or aluminum bus bars, use in metal-clad switchgear, use on metal-enclosed bus bar, substation switchgear |
1.4 x 10^3 Ohm-cm volume resistivity |
550 V/mil dielectric strength |
0.3% water absorption |
