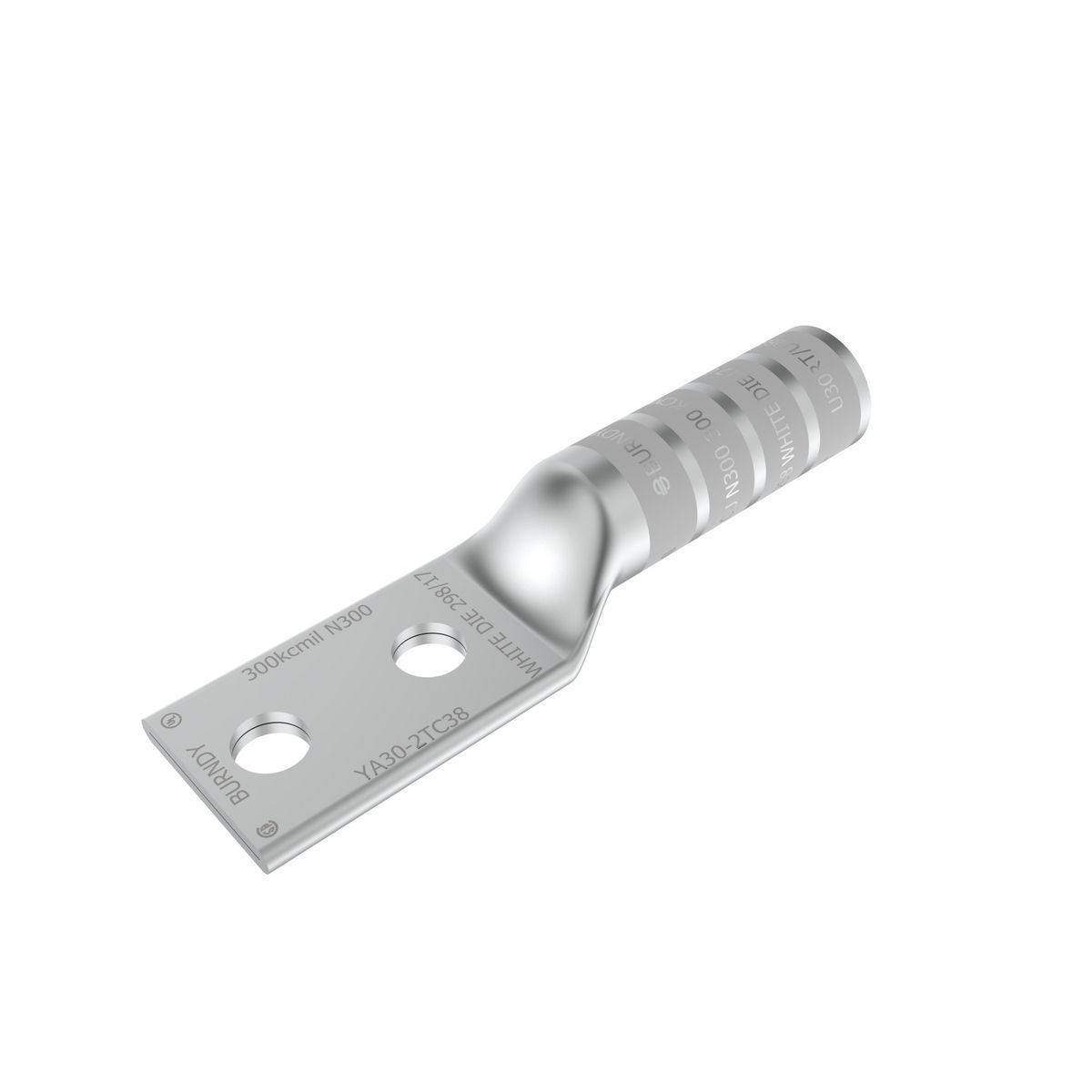

BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
- Brochure URL - 10969_ID-SPE-v1-YA302TC38.pdf(Brochure URL)
- Brochure URL - BURNDY_YA302TC38_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_d5d0489fa71b744577611bafd90439d45b1aeda63907287357adbb6b2999d7a2.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Install Instructions 1 URL - 10969_M6IT3GNVDBYQ1JEX.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - Copper_Code_Long_Barrel_Terminal_Tool_Tables_Instructions.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_ID-DRW-v1-SE_208777-01.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_QI0SCT6EHXFAY78D.pdf(Spec Sheet URL)
- Spec Sheet URL - YA302TC38.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-SE_208777-01.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-SE_208777-01.pdf(Tech Drawing URL)
- Tech Drawing URL - SE..208777-01.pdf(Tech Drawing URL)
- Applications
- Features
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Wire Strip Length: 2 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W30VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W30VT, W30RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U30RT, U28ART Die, (4), Y46 Tool, U30RT, U28ART Die With PUADP-1 Adapter, (4), Color Code: White, Die Index: 17, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (3) |
| Without inspection window |
