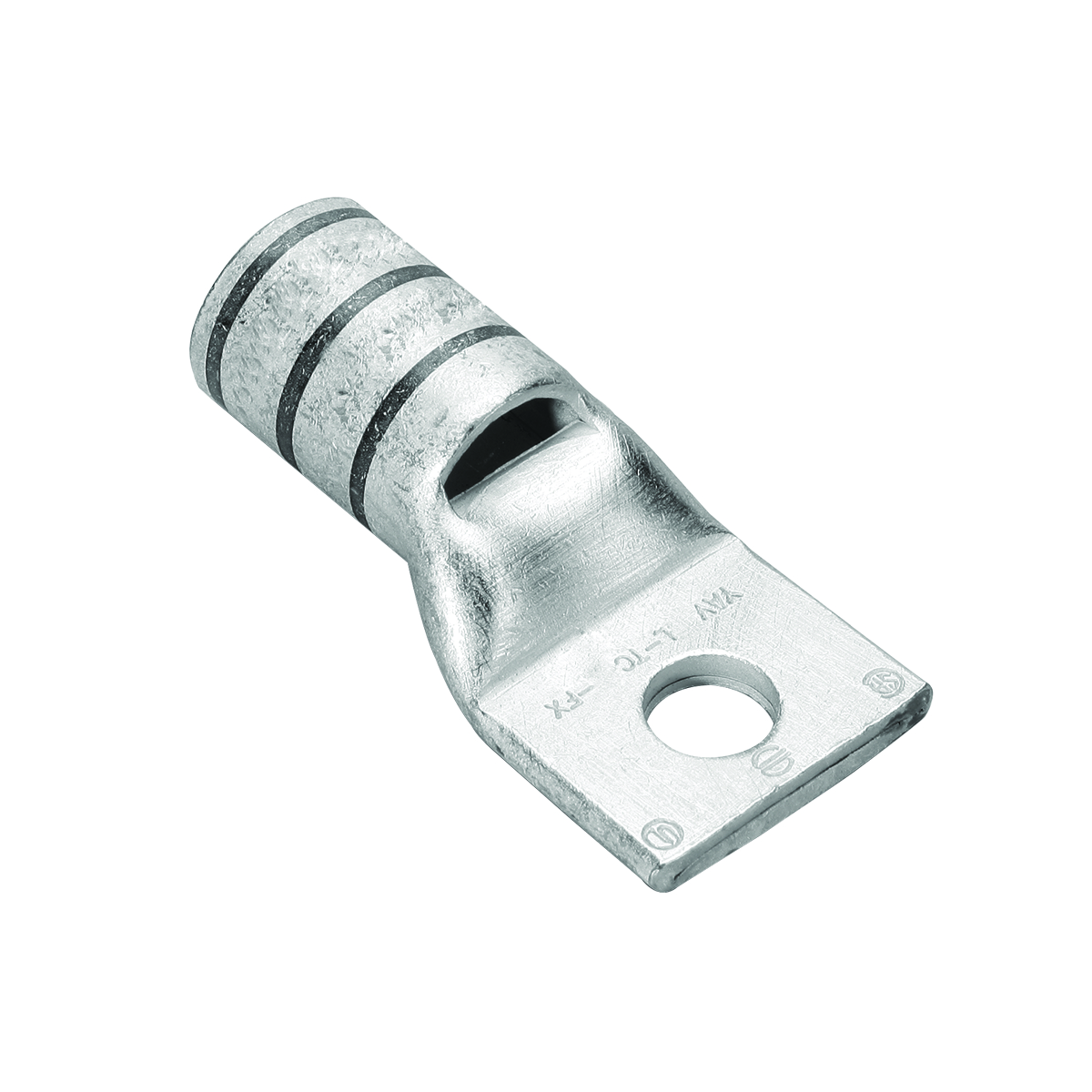

BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
- Brochure URL - 10969_ID-SPE-v1-YAV2CLTC12FX.pdf(Brochure URL)
- Brochure URL - BURNDY_YAV2CLTC12FX_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_d4fb4d9cd08b6acbbc88c66b49835706ea3364ed2fd455eaa7b2e2904e18ffd0.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Install Instructions 1 URL - 10969_TBDLZRIX5VS9WOKN.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - Copper_Flex_Standard_Barrel_Terminal_Tool_Tables_Instructions.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_Y783HGEPLQDS2N69.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_SMTZ13EGH457PCBJ.pdf(Spec Sheet URL)
- Spec Sheet URL - YAV2CLTC12FX.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_Y783HGEPLQDS2N69.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-SE_208001-01.pdf(Tech Drawing URL)
- Tech Drawing URL - SE..208001-01.pdf(Tech Drawing URL)
- Applications
- Features
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 11/16 IN, Tongue Angle: Straight, Die Index: 10, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (1), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (1), Conductor Type: Commercial Stranded Copper, Flexible Copper, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1), Y1MRTC Tool, (2) |
| For die set catalog number and (number of crimps): mechanical MD6, OUR840, MD7-34R tool, (1) W2CVT, W2CRT, X2CRT die, hydraulic BCT500HS, Y500CTHS tool, (1) W2CVT, W2CRT, X2CRT die, Y35, Y39, Y750, PAT750 tool, (1) U2CRT die, Y46 tool, (1) U2CRT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 tool, (2) Y1MRTC installation tool |
| 2 AWG flex (Class G, H, I) size, 2 AWG copper stranded/solid, 3 (125/NO 24) DLO-2 (150/NO 24) DLO size conductor |
| Electro tin plated |
| 2 AWG stranded/solid conductor size |
| 11/16 in L Strip |
| Electro Tin Plated Copper |
