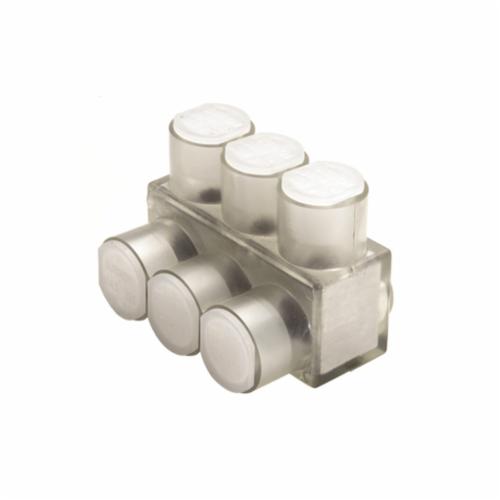

UNITAP™ Clear Insulated Multi-Tap is UL Listed to the UL Wire Connector Standard UL486A-486B and CSA Certified for use with flexible (fine stranded) conductor - with no ferrules required! Featuring color coordinated conductor port and screw port caps making it easy to identify the maximum conductor size accommodated by the connector.
- http://www.burndy.com/(WEB SELLER HOME PAGE URL)
- WEB CATALOG URL - IDW_DOCUMENT_54e6c3c69dada579bd2ce199efa905b1820e48237d77d1d04c6a8b98beb60b7b.pdf(WEB CATALOG URL)
- WEB LINE DRAWING URL(WEB LINE DRAWING URL)
- WEB SDS URL - Clear Plastisol, oxideinhibitorunitap.pdf(WEB SDS URL)
- WEB SPEC SHEET URL - BIBS2508.pdf(WEB SPEC SHEET URL)
- WEB TECH DRAWING URL - sc210991-12.pdf(WEB TECH DRAWING URL)
- Features
Features: UNITAP Rated For Code Conductor Only, Torque: 275 IN-LB, Wire Entry: Single, Hex Size (key): 5/16 IN, Conductor Size (run - Range): 10 AWG - 250 KCMIL, Wire Strip Length: 1 IN, Number Of Ports: 8, Type Of Insulation: Plastisol |
Clear plastisol insulation allows visual confirmation that conductor is properly inserted |
Clear plastisol covered AL6061-T6 aluminum body saves time, lowers installation costs, eliminates taping |
Oxide inhibitor pre-installed which inhibits moisture and contaminants from entering the contact area |
Range taking reduces number of connectors carried in inventory |
8 Ports, 8 screw |
Unplated, inspectable |
4/0, 2/0, 3/0, 2, 1, 4, 1/0, 8, 10, 6 AWG to 250 kcmil stranded copper, 8 AWG to 250 kcmil aluminum |
