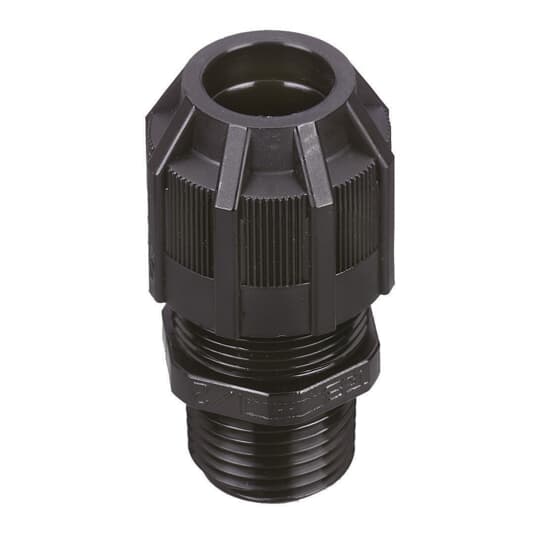

1" NYLON RANGER CORDCONN .500-.750
SKU101769
MFGR #2941NM
Your Cost: $19.7217/ea($1,972.17 / c)
The Ranger® Series Steel Liquidtight Connector takes twice the cable range of most ordinary strain relief connectors. T&B's Ranger Connectors enable you to reduce your inventory and save time with one connector that can do the work of two.
The Ranger® Series Steel Liquidtight Connector takes twice the cable range of most ordinary strain relief connectors. T&B's Ranger Connectors enable you to reduce your inventory and save time with one connector that can do the work of two.
Alternate Catalog Number 7TAD105210R0003 Application Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead ARRA Compliant C Buy American Compliant C Cable Type S/SO Catalog Number 2941NM Color Black Conductor Range 0.500 Inch/12.7mm to 0.750 Inch/19.0mm Connection Type NPT Country of Origin US Currency USD Dimensions 1-13/32 in Dia x 2-11/32 in L Environmental Conditions Ordinary, Wet, or Dry Locations EU RoHS Indicator C Gross Volume Per Pack 0.04 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.0900 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 3926909989 Height 3.00 in Height [Metric] 7.6200 cm Item Group 3K Item Group 2 3KT Length 5.00 in Length [Metric] 12.7000 cm Returnable A Series Ranger® Size 1 Inch Standard UL E13938, CSA 52391 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E13938CSA 52391 Temperature Rating -34 to 105 °C Type Strain Relief Straight UNSPSC 39121431 UPC 11 78621079747 UPC 12 786210797472 Width 4.50 in Width [Metric] 11.4300 cm Stock Status NONSTOCK Brand T&B® (Thomas & Betts) Manufacturer Thomas & Betts Cable Openings 1/2 to 3/4 in Material Polyamide/Nylon 6.6 Trade Size 1 in Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead Extended Range with Superior Strain Relief Extended range with superior strain relief Reduced overall size, fits into tighter spaces Gland nut designed to restrict cable bending Suitable for ordinary, wet or dry locations 0.785 in L thread 0.98 in Dia throat IP65 rating, UV resistant Non-metallic means corrosion-resistance Nylon gland and grip, oil-resistant elastomer bushing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 7TAD105210R0003 |
| Application | Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Cable Type | S/SO |
| Catalog Number | 2941NM |
| Color | Black |
| Conductor Range | 0.500 Inch/12.7mm to 0.750 Inch/19.0mm |
| Connection Type | NPT |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 1-13/32 in Dia x 2-11/32 in L |
| Environmental Conditions | Ordinary, Wet, or Dry Locations |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 0.04 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.0900 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 3926909989 |
| Height | 3.00 in |
| Height [Metric] | 7.6200 cm |
| Item Group | 3K |
| Item Group 2 | 3KT |
| Length | 5.00 in |
| Length [Metric] | 12.7000 cm |
| Returnable | A |
| Series | Ranger® |
| Size | 1 Inch |
| Standard | UL E13938, CSA 52391 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E13938CSA 52391 |
| Temperature Rating | -34 to 105 °C |
| Type | Strain Relief Straight |
| UNSPSC | 39121431 |
| UPC 11 | 78621079747 |
| UPC 12 | 786210797472 |
| Width | 4.50 in |
| Width [Metric] | 11.4300 cm |
| Stock Status | NONSTOCK |
| Brand | T&B® (Thomas & Betts) |
| Manufacturer | Thomas & Betts |
| Cable Openings | 1/2 to 3/4 in |
| Material | Polyamide/Nylon 6.6 |
| Trade Size | 1 in |
| Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead |
| Extended Range with Superior Strain Relief |
| Extended range with superior strain relief |
| Reduced overall size, fits into tighter spaces |
| Gland nut designed to restrict cable bending |
| Suitable for ordinary, wet or dry locations |
| 0.785 in L thread |
| 0.98 in Dia throat |
| IP65 rating, UV resistant |
| Non-metallic means corrosion-resistance |
| Nylon gland and grip, oil-resistant elastomer bushing |
