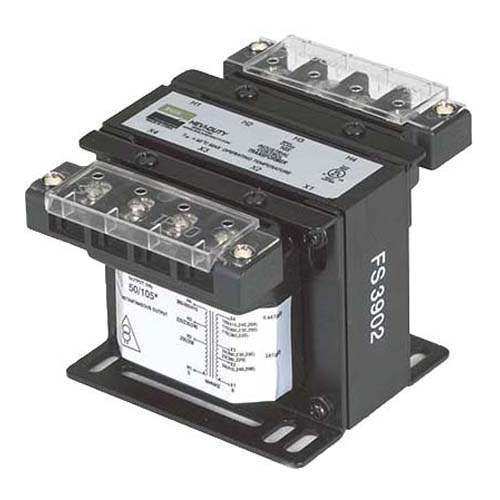

0.5KVA 208/240/415/480/600-120

Control Transformers
89901 MFG #: E500TF
SolaHD™
280.14000 / ea
Electromagnetic control components demand inrush currents up to 10 times the transformers nominal rating without sacrificing secondary voltage stability beyond practical limits. The International series transformers fully comply with IEC and NEMA standards and are available with IEC touchproof covers (IP20).
QTY
  • Applications
  • Features
Industrial
50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Secondary fuse holders (FB2X) included for 13/32" x 1-1/2" cartridges (fuses not included). Factory installed fuse holders are available (see WA and WB options).
Interleaved copper windings reduce I2R losses and maximize efficiency
Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants
Meets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capability
Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity
Heavy gauge steel mounting plate
Mounting dimensions are compatible with similar control transformers
131 deg F rise, 105 deg C insulation system to minimize heat
Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 in cartridges
Mounting dimensions are compatible with similar control transformers
Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 cartridges (fuses not included)
Heavy gauge steel mounting plate
208/240/415/480/600, 200/230/400/460/575, 220/277/380 VAC primary volt
120/115/110 VAC secondary volt
