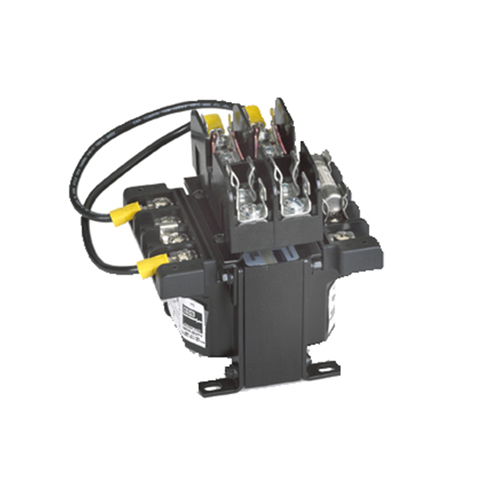

0.250KVA 240X480-24
SKU345689
MFGR #E250D
Your Cost: $126.37/ea
List: The SBE Encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.
The SBE Encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.
Application Industrial ARRA Compliant N Buy American Compliant N Catalog Number E250D Connection Type Lead Wire Country of Origin VN Currency USD Dimensions 4.61 in L x 3.39 in W x 2.96 in H Enclosure Type IP20 EU RoHS Indicator Y Gross Weight Per Pack 10.9500 lb Gross Weight per Pack Metric 4.97 Gross Weight UOM Metric kg Height 7.20 in Height [Metric] 18.2880 cm KVA Rating 0.25 Length 9.40 in Length [Metric] 23.8760 cm Mounting Heavy Gauge Steel Mounting Plate Mounting Type Surface Number Of Phases 1 Series SBE Standard cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant Standards RoHS CompliantcULus File No. E77014UL 506CSA C22.2 No. 66ANSI C89.1 Temperature Rating 131 °F Type SBE Encapsulated Series Transformers UNSPSC 39121026 UPC 11 78347253114 UPC 12 783472531141 Wattage 100 W Width 6.60 in Width [Metric] 16.7640 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 1 pH Power Rating 0.25 kVA Primary Voltage 240 x 480 Volt Primary VAC Secondary Voltage 24 Volt Secondary VAC Industrial 50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Secondary fuse holders (FB2X) included for 13/32" x 1-1/2" cartridges (fuses not included). Interleaved copper windings reduce I2R losses and maximize efficiency Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants Meets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capability Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity Heavy gauge steel mounting plate Mounting dimensions are compatible with similar control transformers 131 deg F rise, 105 deg C insulation system to minimize heat Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 in cartridges Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity 240 x 480 V primary volt 24 VAC secondary volt
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | E250D |
| Connection Type | Lead Wire |
| Country of Origin | VN |
| Currency | USD |
| Dimensions | 4.61 in L x 3.39 in W x 2.96 in H |
| Enclosure Type | IP20 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 10.9500 lb |
| Gross Weight per Pack Metric | 4.97 |
| Gross Weight UOM Metric | kg |
| Height | 7.20 in |
| Height [Metric] | 18.2880 cm |
| KVA Rating | 0.25 |
| Length | 9.40 in |
| Length [Metric] | 23.8760 cm |
| Mounting | Heavy Gauge Steel Mounting Plate |
| Mounting Type | Surface |
| Number Of Phases | 1 |
| Series | SBE |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Standards | RoHS CompliantcULus File No. E77014UL 506CSA C22.2 No. 66ANSI C89.1 |
| Temperature Rating | 131 °F |
| Type | SBE Encapsulated Series Transformers |
| UNSPSC | 39121026 |
| UPC 11 | 78347253114 |
| UPC 12 | 783472531141 |
| Wattage | 100 W |
| Width | 6.60 in |
| Width [Metric] | 16.7640 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 1 pH |
| Power Rating | 0.25 kVA |
| Primary Voltage | 240 x 480 Volt Primary VAC |
| Secondary Voltage | 24 Volt Secondary VAC |
| Industrial |
| 50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Secondary fuse holders (FB2X) included for 13/32" x 1-1/2" cartridges (fuses not included). |
| Interleaved copper windings reduce I2R losses and maximize efficiency |
| Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants |
| Meets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capability |
| Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity |
| Heavy gauge steel mounting plate |
| Mounting dimensions are compatible with similar control transformers |
| 131 deg F rise, 105 deg C insulation system to minimize heat |
| Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 in cartridges |
| Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity |
| 240 x 480 V primary volt |
| 24 VAC secondary volt |
