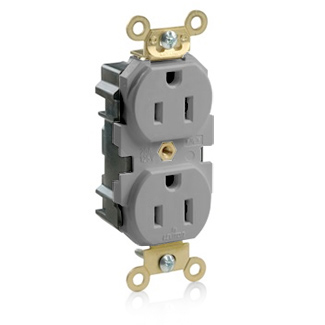

Leviton® M5262-GY Duplex Extra Heavy Duty Wide Body Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Straight Blade Receptacles
1289565
MFG #: M5262-GY
Leviton®
33.04000
/ ea
- Application: Commercial Applications
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: M5262-GY
- Connection: Modular Terminal
- Country of Origin: MX
- Currency: USD
- Depth: 1.22 in
- Dielectric Strength: 2000 (Min.)
- Environmental Conditions: Flammability (Rated V-2 per UL94)
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.2400 lb
- Gross Weight per Pack Metric: 0.11
- Gross Weight UOM Metric: kg
- Hazard Class: N
- Height: 9.2500 in
- Height [Metric]: 10.6375 cm
- Length: 10.7500 in
- Length [Metric]: 4.2875 cm
- Material: Thermoplastic
- Mounting: Wall Box
- NEMA Rating: 5-15R
- Phase: 1
- Standard: ANSI (C-73);cULus Listed;NEMA (WD-1, WD-6);NOM Certified (057)
- Type: Duplex Outlet;Straight Blade
- UNSPSC: 39121406
- UPC 11: 07847736257
- UPC 12: 078477362570
- Width: 1.62 in
- Width [Metric]: 4.1275 cm
- Wire Size: 12.000000000000000
- Stock Status: NONSTOCK
- Brand: Leviton®
- Manufacturer: Leviton Manufacturing Co., Inc.
- Amperage Rating: 15 AMP
- Number of Wires: 3
- Voltage Rating: 125
Leviton®, M5262-GY, Duplex Extra Heavy Duty Wide Body Straight Blade Receptacle, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Modular Terminal, Thermoplastic, Gray, 46 in H x 1.53 in W x 1.22 in D Dimensions
- Brochure URL - ibcGetAttachment.jsp?cItemId=93522&label=IBE&appName=IBE(Brochure URL)
- http://www.leviton.com(Seller Home Page URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=M5262-GY&minisite=10251(Spec Sheet URL)
- Tech Drawing URL - 10962_HWMBQY5CTO10379Z.jpg(Tech Drawing URL)
- Tech Drawing URL - ibcGetAttachment.jsp?cItemId=35295&label=IBE&appName=IBE(Tech Drawing URL)
- Applications
- Features
| Commercial Applications |
| Constructed with impact resistant thermoplastic nylon cover and body |
| Four corner latches securely fasten the receptacles face to the body |
| Large triple wipe, brass T line contacts for superior contact and conductivity |
| 12 AWG THHN wire leads, 6 in L on MSTWL series wiring modules |
| Grounding clip permanently secured to strap for easy, simple and secure installation |
| Receptacle face includes threaded brass bushing for reliable, secure wallplate attachment |
| Wiring module latches on then locks to the receptacle body providing double the connection secu |
| Receptacle to be installed only with Leviton® MSTWL series wiring modules |
| MSTWL wiring module shipped separately with protective cover and factory installed circuit ID l |
