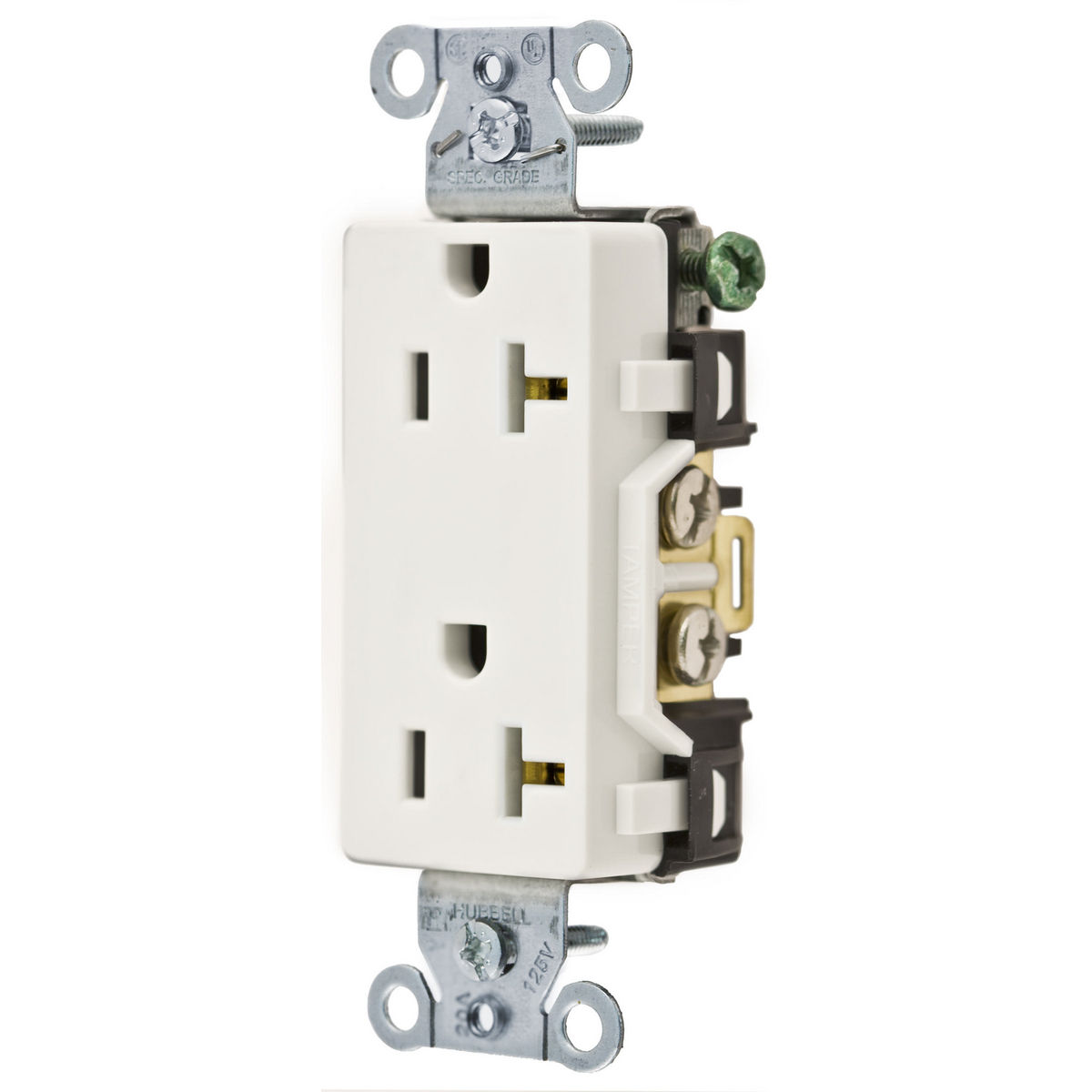

Hubbell Wiring Device-Kellems StyleLine® DR20WHI Decorator Duplex Self-Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Straight Blade Receptacles
468714
MFG #: DR20WHI
Hubbell Wiring Device-Kellems
5.05000
/ ea
- Application: Commercial Specification Grade
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: DR20WHI
- Connection: Back and Side Wired
- Country of Origin: CN
- Currency: USD
- Dielectric Strength: Withstands 2,000V minimum
- Dimensions: 3.281 in H x 1.295 in W x 1.067 in D
- Environmental Conditions: Indoor Dry unless protected by additional means
- EU RoHS Indicator: Y
- Grade: Commercial/Specification
- Gross Weight Per Pack: 0.1500 lb
- Gross Weight per Pack Metric: 0.07
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536698000
- Height: 1.08 in
- Height [Metric]: 2.7432 cm
- Horsepower: 1 hp
- Length: 4.14 in
- Length [Metric]: 10.5156 cm
- Material: Nylon
- Mounting: Screw Mount
- NEMA Rating: 5-20R
- Number Of Poles: 2
- Phase: 1
- Returnable: Y
- Series: Decorator
- Size: 3.28 in x 1.06 in x 1.29 in
- Standard: Certified to CSA, C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Standards: UL 498, File No. E2186 Listed, UL 94-V-2 Flammability RatingCSA C22.2, No. 42 NEMA WD1/WD5/WD6 Compliant
- Sub Brand: Straight Blade Devices
- Temperature Rating: -40 to 75 °C
- Terminal Type: Back/Side Wired
- Type: Standard Duplex
- UNSPSC: 39121406
- UPC 11: 78358512790
- UPC 12: 783585127903
- Wattage: 2,500 W
- Width: 1.57 in
- Width [Metric]: 3.9878 cm
- Wire Size: #12 AWG to #10 AWG
- Stock Status: NORMALLY STOCKED
- Brand: Hubbell Wiring Device-Kellems
- Manufacturer: Hubbell
- Amperage Rating: 20 A
- Color: White
- Number of Wires: 3
- Voltage Rating: 125 V
Wiring Device-Kellems StyleLine® Straight Blade Receptacle, Duplex Self-Grounding, Series: Decorator, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial/Specification Grade, -40 to 75 deg C, Back and Side Wired Terminal, Composite/Thermoplastic, White, 3.281 in H x 1.295 in W x 1.067 in D
- Catalog URL - HUBBELL_BR15ITR_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Tech Drawing URL - WIRING_DR20WHI_M10528_ACAD_DRAWING.dwg(Tech Drawing URL)
- Install Instructions 1 URL - 11456_9TUV63K7I2W5HAEN.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11456_840DYZBLWFCUIXO3.pdf(Spec Sheet URL)
- Line Drawing URL - 11456_I95F7MT42H8PWVDZ.pdf(Line Drawing URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Applications
- Features
| Commercial Specification Grade |
| Self Grounding |
| Traditional face shape |
| Withstands 2000 VAC dielectric voltage |
| 14 to 12 AWG solid or stranded copper conductor terminal accommodation |
| Smooth face |
| Aesthetic Style Line® decorator design |
| Triple wipe contacts |
| Nylon base, 0.03 in brass power contacts |
| Brass ground contacts |
| 0.062 in nickel plated steel wire clamp |
| Plated steel terminal screws |
| 0.04 in galvanized steel mounting strap |
| Stainless steel automatic self-grounding staple |
| Galvanized steel mounting screws |
| Certified for current interrupting at full rated current |
| Indoor dry unless protected by additional means |
