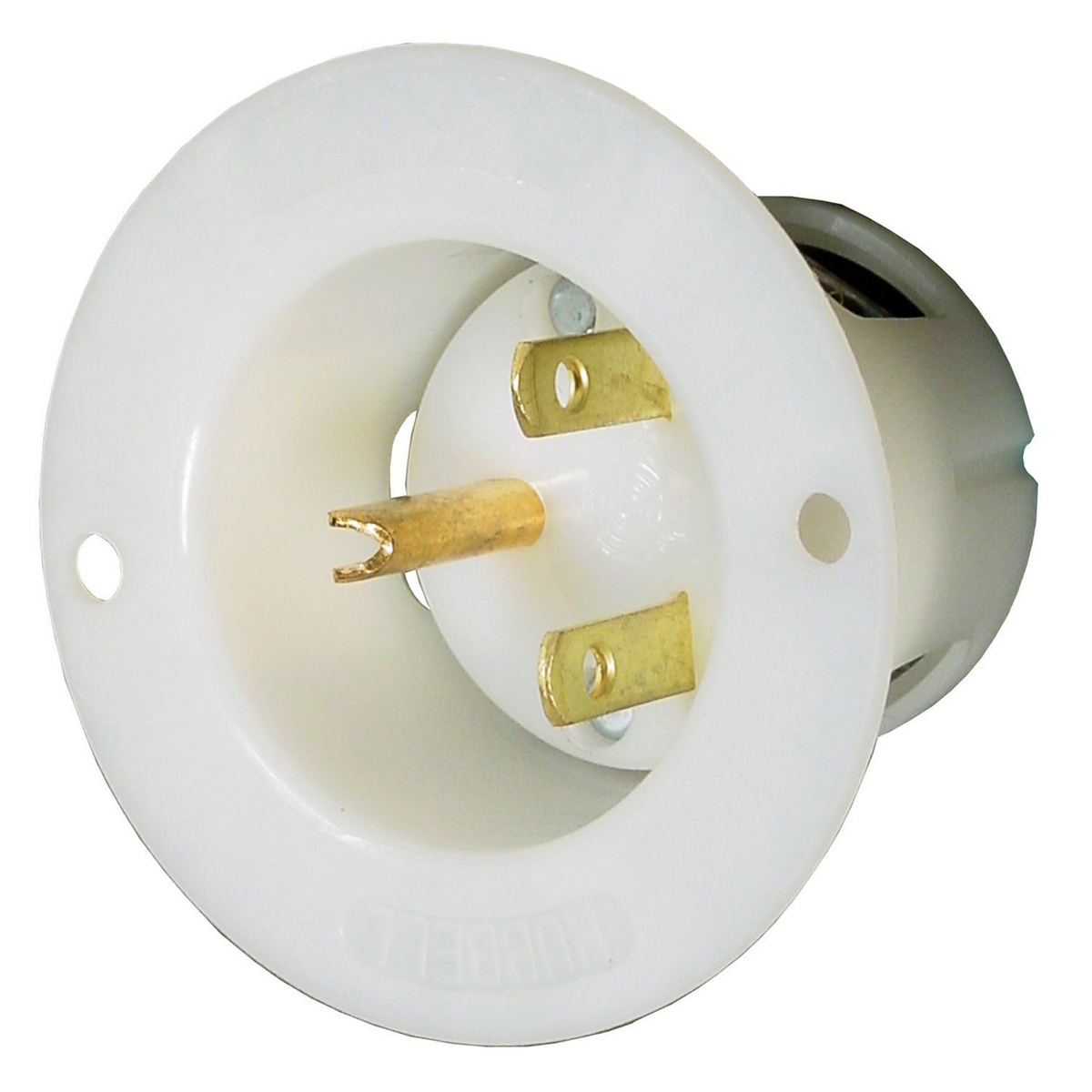

Hubbell Wiring Device-Kellems INSULGRIP® HBL5678C Flanged Inlet, 250 VAC, 15 A, 2 Poles, 3 Wires, White
Straight Blade Flanged Inlets & Outlets
26466
MFG #: HBL5678C
Hubbell Wiring Device-Kellems
30.02000
/ ea
- Application: Extra Heavy Duty Industrial
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: HBL5678C
- Connection: Screw Terminals
- Country of Origin: PR
- Currency: USD
- Dielectric Strength: Withstands 2,000V minimum
- Environmental Conditions: Indoor Dry unless protected by additional means
- EU RoHS Indicator: Y
- Frequency Rating: 50/60 Hz
- Grade: Commercial/Industrial
- Gross Weight Per Pack: 0.1500 lb
- Gross Weight per Pack Metric: 0.07
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536694020
- Height: 2.00 in
- Height [Metric]: 5.0800 cm
- Insulation: Insulated Body
- Length: 2.70 in
- Length [Metric]: 6.8580 cm
- Material: Nylon
- Mounting: Screw Mount
- NEMA Rating: 6-15P
- Phase: 1
- Returnable: Y
- Size: 1.72 in x 2.56 in x 2.56 in
- Standard: Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 42UL 498UL File No. E2186UL94 V-2 Flammability Rating
- Sub Brand: Straight Blade Devices
- Temperature Rating: Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact. °C
- Terminal Type: Screw
- Type: Flanged Inlet
- UNSPSC: 39121406
- UPC 11: 78358517595
- UPC 12: 783585175959
- Wattage: 3,750 W
- Width: 2.70 in
- Width [Metric]: 6.8580 cm
- Wire Size: #18 AWG to #10 AWG
- Stock Status: NONSTOCK
- Brand: Hubbell Wiring Device-Kellems
- Manufacturer: Hubbell
- Amperage Rating: 15 A
- Color: White
- Number of Wires: 3
- Voltage Rating: 250 V
- Number Of Poles: 2
Hubbell® INSULGRIP® Flanged Inlet, 250 VAC, 15 A, 50/60 Hz, 2 Poles, 3 Wires, NEMA 6-15P, Heavy Duty Specification Grade, -40 to 75 deg C, Nylon/Polycarbonate, White
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_I4P23YLM89XRE0OD.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_BCLYQ52WAIOD9RGS.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_72O16FJ0GAUNK5D9.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1487174628657.pdf(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Extra Heavy Duty Industrial |
| Standard Product |
| #8-32 brass (green) ground screw |
| Brass-nickel plated mounting screw |
| Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75% |
| Terminals identified in accordance with UL 498 (brass, white, green) terminal identification |
| 18 to 10 AWG copper stranded or solid conductor only terminal accommodation |
| 0.04 in brasses power contacts |
| Standard non-metallic inlet |
| Withstands 2000 VAC minimum dielectric voltage |
| Standard non-metallic inlet |
| Withstands 2000 VAC minimum dielectric voltage |
