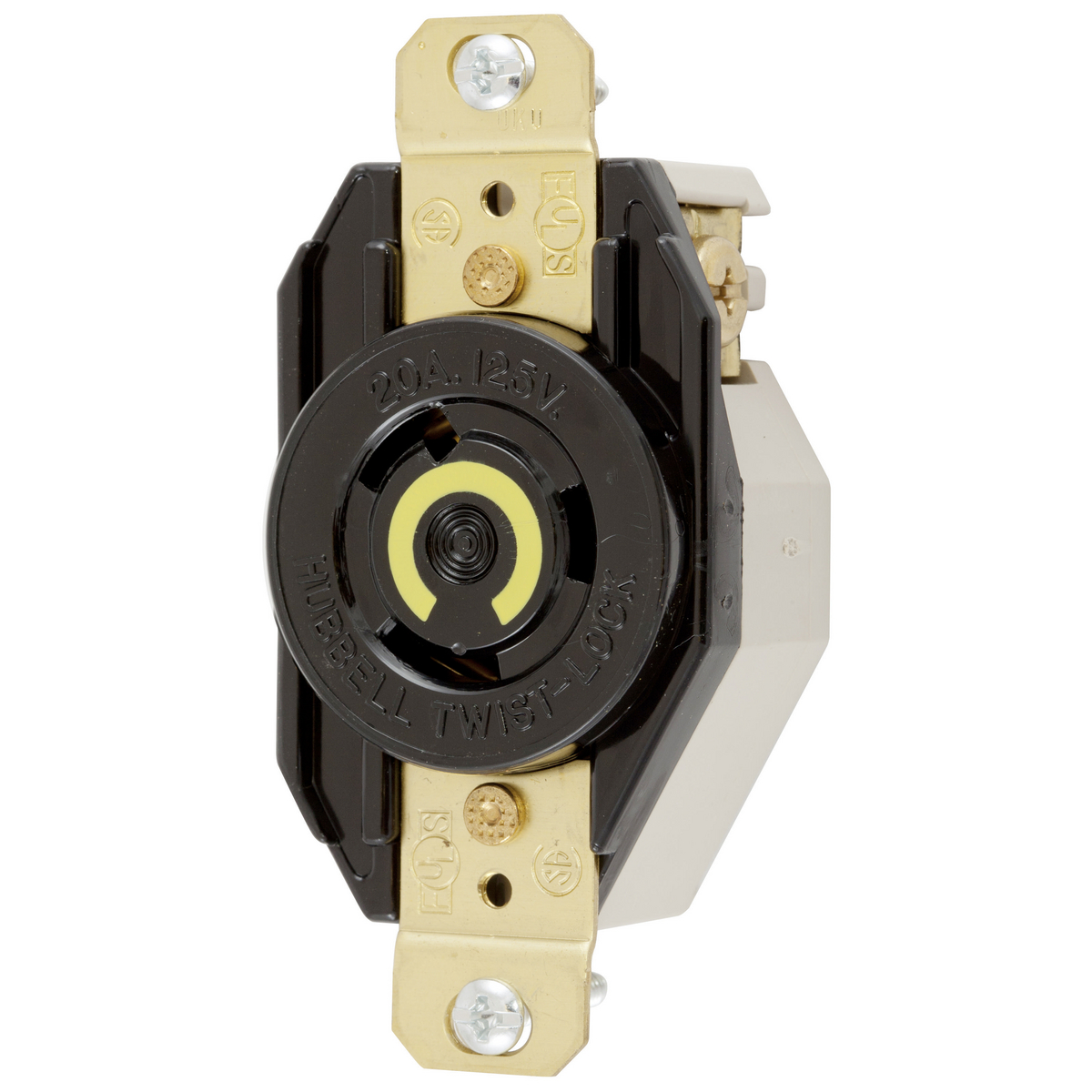

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2310 Flush Mount Grounding Heavy Duty Single Locking Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Locking Receptacles
26580
MFG #: HBL2310
Hubbell Wiring Device-Kellems
36.81000
/ ea
- Application: Heavy Duty Industrial
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: HBL2310
- Connection: Screw Terminal
- Country of Origin: US
- Currency: USD
- Dielectric Strength: Withstands 2,000V minimum
- Dimensions: 3.28 in H x 1.7 in W x 1.23 in D
- Enclosure: NEMA 4/4X/12/IP20
- Environmental Conditions: Indoor Dry unless protected by additional means
- EU RoHS Indicator: Y
- Grade: Industrial
- Gross Weight Per Pack: 0.2500 lb
- Gross Weight per Pack Metric: 0.11
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536698000
- Height: 1.70 in
- Height [Metric]: 4.3180 cm
- Horsepower: 1 hp
- Length: 4.30 in
- Length [Metric]: 10.9220 cm
- Material: Nylon
- Mounting: Screw Mount
- NEMA Rating: L5-20R
- Phase: 1
- Returnable: Y
- Size: 3.28 in x 1.70 in x 1.23 in
- Standard: Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Standards: UL 498, Federal Specification W-C-596, CSA C22.2 No. 42 Certified, NEMA WD1, WD5 Compliant
- Sub Brand: Twist-Lock Devices
- Temperature Rating: -40 to 75 °C
- Terminal Type: Screw
- Type: Single Flush Receptacle
- UNSPSC: 39121406
- UPC 11: 78358523550
- UPC 12: 783585235509
- Wattage: 2,500 W
- Width: 1.90 in
- Width [Metric]: 4.8260 cm
- Wire Size: #16 AWG to #8 AWG
- Stock Status: NORMALLY STOCKED
- Brand: Hubbell Wiring Device-Kellems
- Manufacturer: Hubbell
- Amperage Rating: 20 A
- Color: Blue
- Number of Wires: 3
- Voltage Rating: 125 VAC
- Number Of Poles: 2
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Receptacle, Flush Mount Grounding Heavy Duty Single, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA L5-20R, Industrial Grade, NEMA 4/4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Black, 3.28 in H x 1.7 in W x 1.23 in D
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_KX4Y5SDJ37G6VCI1.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_CYA4PV1OXWJM2L6S.pdf(Line Drawing URL)
- Spec Sheet 1 URL - ID-SPE-v1-HBL2310.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11456_X2JLGBM6EQDV9RZ4.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL2310_M6469_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial |
| Standard |
| Withstands 2000 VAC dielectric voltage |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw |
| #10-32 bronze (green) ground screw, 0.04 in brass contact spring material and brass terminal clamp |
| Certified for current interrupting at full rated current interrupting |
| 14 to 8 AWG stranded copper wire terminal accommodation |
| Black nylon face |
| Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection |
| Steel zinc plated mounting screw |
| Nylon polyester base |
| Face color coding by voltage facilitates locating and mating of proper devices |
| 0.04 in brass ground contact and 0.05 in brass bridge mounting strap |
| Molded in or stamped on ratings |
| Permanently ink marked on product catalog number |
| 2000 VAC minimum dielectric voltage withstand |
| Certified for current interrupting at full rated current interrupting |
| Max 30 C temperature rise at full rated current after 50 cycles of overload at 150 percentage of rated current at a power factor of 0.75 temperature rise |
| 14 to 8 AWG copper only terminal accommodation |
| Terminals identified in accordance with UL498 (x, y, z, white, green) terminal identification |
| HB or better per UL94 or CSA 22.2 no. 0.6 flammability, flush mounting |
