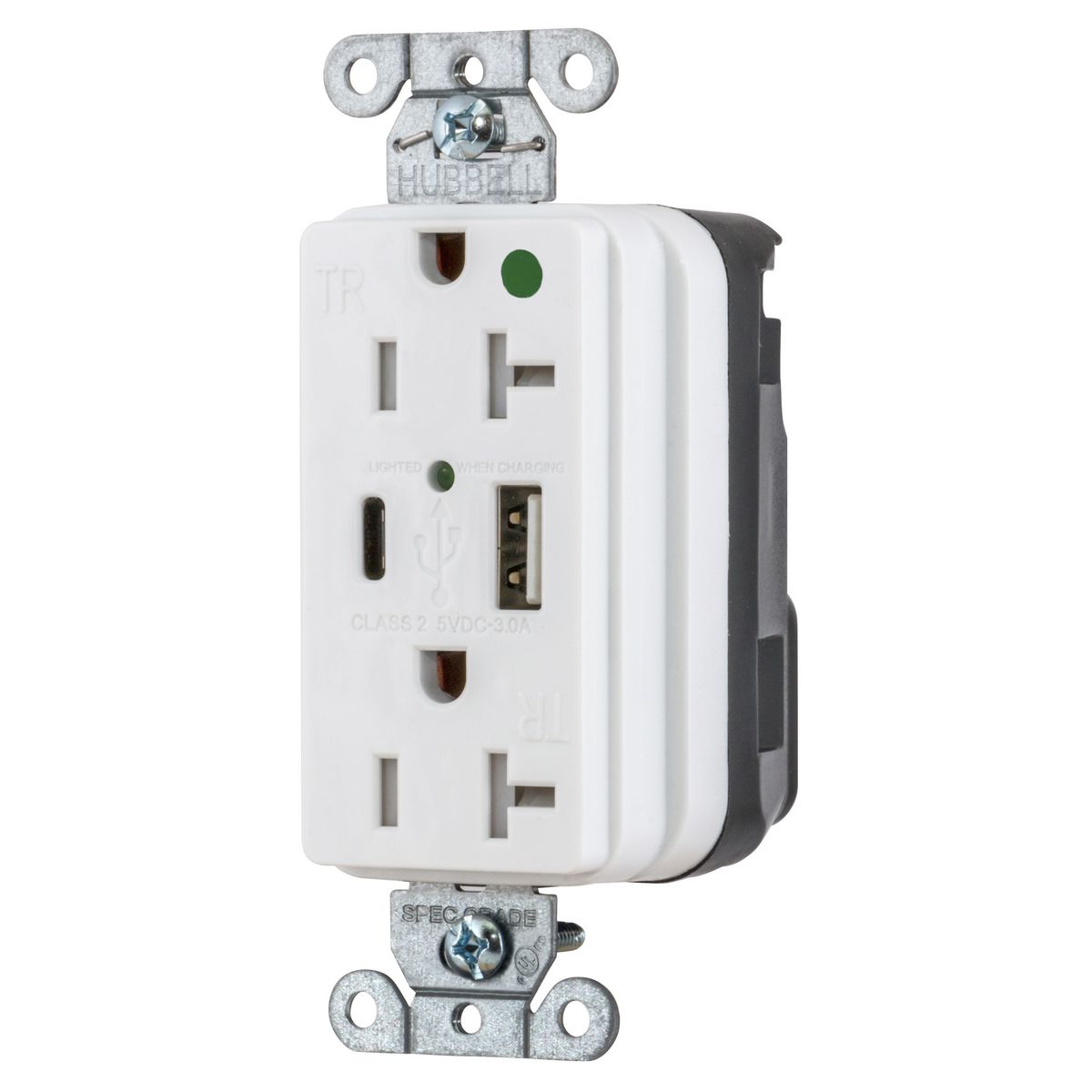

Hubbell Wiring Device Kellems, Straight Blade Devices, SNAP-ConnectDecorator Duplex, USB Charger Receptacle, Hospital Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, 5A "A" and "C" Charger Ports, White
Receptacles & USB Ports
1092549
MFG #: SNAP8300UACW
Hubbell Wiring Device-Kellems
57.35000
/ ea
- Amperage Rating: 20 A
- Application: Hospital Grade
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: SNAP8300UACW
- Connection: Terminal Screws
- Country of Origin: CN
- Currency: USD
- Dielectric Strength: Withstands 1,500V minimum Complies with USB BC1.2 Battery Charging and 3.0 Power Delivery Specifications
- Environmental Conditions: Indoor Dry unless protected by additional means
- EU RoHS Indicator: C
- Grade: Hospital
- Gross Weight Per Pack: 0.3000 lb
- Gross Weight per Pack Metric: 0.14
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536698000
- Height: 1.90 in
- Height [Metric]: 4.8260 cm
- Length: 4.30 in
- Length [Metric]: 10.9220 cm
- Material: Thermoplastic
- Mounting: Threaded
- NEMA Rating: 5-20R
- Returnable: Y
- Size: 4.13 in H x 1.84 in D
- Standard: NEMA, UL, CSA, Fed Spec.
- Standards: ARRA CompliantBuy American Act CompliantcULus ListedUL 498UL 1310CSA Certified
- Sub Brand: Straight Blade Devices
- Temperature Rating: Maximum continuous 75?°C, minimum -40?°C (w/o impact)
- Type: Decorator Duplex Straight Blade
- UNSPSC: 39121406
- UPC 11: 88377830866
- UPC 12: 88377830866
- USB Rating: 3 A at 9 VDC
- USB Type: Type A/C
- Voltage Rating: 125 V
- Wattage: 2,500 W
- Width: 2.10 in
- Width [Metric]: 5.3340 cm
- Wire Size: 14 to 10 AWG
- Wiring Method: Grounding
- Stock Status: NONSTOCK
- Brand: Hubbell Wiring Device-Kellems
- Manufacturer: Hubbell
- Color: White
- Electrical Ratings: 125 VAC, 20 A
- Number of Wires: 3
- Number Of Poles: 2
- Phase: 1
Hubbell Wiring Device Kellems, Straight Blade Devices, SNAP-ConnectDecorator Duplex, USB Charger Receptacle, Hospital Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, 5A "A" and "C" Charger Ports, White
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_G8MAPLJN4UQRFX7C.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_Q2SWLZ07OKGNPMUB.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_14568521-SPE-EN-1.pdf(Spec Sheet URL)
- Spec Sheet URL - 14568521-SPE-EN-1.pdf(Spec Sheet URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Hospital Grade |
| SNAPconnect®, (2) 20A 125 Duplex Ports, (1) Type A, (1) Type C USB, LED Indicator |
