CCI® 962634609 CAT5E 24/4P CMR 1M' GRAY
SKU57939
MFGR #962634609
Your Cost: $0.1403/ft($140.34 / m)

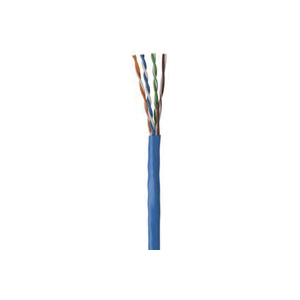

CCI® Riser Cable, Type CMR Cat 5e Non-Plenum UTP, 300 VAC, 4 Pair Conductors, Solid Bare Copper Conductor, 24 AWG Conductor, 0.2 in Outside Dia, 1000 ft Pull Box Length, 9.38 Ohm, Polyethylene Insulation, PVC, Gray, 60 deg C. Images shown for wire are for illustrative purposes only. Color shade and packaging/spooling may vary.
CCI® Riser Cable, Type CMR Cat 5e Non-Plenum UTP, 300 VAC, 4 Pair Conductors, Solid Bare Copper Conductor, 24 AWG Conductor, 0.2 in Outside Dia, 1000 ft Pull Box Length, 9.38 Ohm, Polyethylene Insulation, PVC, Gray, 60 deg C. Images shown for wire are for illustrative purposes only. Color shade and packaging/spooling may vary.
Application DATACOM Armour None Attenuation 19.9 dB/100m Braid None Capacitance 15 Catalog Number 962634609 Color Gray Conductor Material BC Construction UTP Country of Origin MUL Data Transfer Rate 350 Gross Weight Per Pack 0.0230 lb Impedance 100 Jacket Color Gray Jacket Material PVC NEMA Color Gray Pairs Or Conductor 4PR Shield None Signal 100MHz Standard Cat 5e Standards RoHS Compliant, ETL Verified TIA/EIA 568-C.2, C(ETL) Listed CMR FT4 Strands SOL Sub Brand SIGNAL Type CMR UNSPSC 26121616 UPC 11 02989296263 UPC 12 02989296263 Stock Status NONSTOCK Brand Coleman Cable Manufacturer Coleman Wires and Cables Conductor Size 24 AWG Length 1000 ft Voltage Rating 300 V DATACOM FT4 350 MHz operating frequency 5.6 nF/100 m at 1 kHz maximum capacitance 45 ns/100 m maximum delay skew 68% nominal velocity of propagation Each pair has different lay length for cross-talk prevention and ripcord added Category 5e cable 9.38 Ohm/100 m at 20 deg C max DC resistance White/black with black, white/orange with orange, white/green with green, white/brown with brown color pair cable 100 +/-15 Ohm at 1 to 100 MHz characteristic impedance
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | DATACOM |
| Armour | None |
| Attenuation | 19.9 dB/100m |
| Braid | None |
| Capacitance | 15 |
| Catalog Number | 962634609 |
| Color | Gray |
| Conductor Material | BC |
| Construction | UTP |
| Country of Origin | MUL |
| Data Transfer Rate | 350 |
| Gross Weight Per Pack | 0.0230 lb |
| Impedance | 100 |
| Jacket Color | Gray |
| Jacket Material | PVC |
| NEMA Color | Gray |
| Pairs Or Conductor | 4PR |
| Shield | None |
| Signal | 100MHz |
| Standard | Cat 5e |
| Standards | RoHS Compliant, ETL Verified TIA/EIA 568-C.2, C(ETL) Listed CMR FT4 |
| Strands | SOL |
| Sub Brand | SIGNAL |
| Type | CMR |
| UNSPSC | 26121616 |
| UPC 11 | 02989296263 |
| UPC 12 | 02989296263 |
| Stock Status | NONSTOCK |
| Brand | Coleman Cable |
| Manufacturer | Coleman Wires and Cables |
| Conductor Size | 24 AWG |
| Length | 1000 ft |
| Voltage Rating | 300 V |
| DATACOM |
| FT4 |
| 350 MHz operating frequency |
| 5.6 nF/100 m at 1 kHz maximum capacitance |
| 45 ns/100 m maximum delay skew |
| 68% nominal velocity of propagation |
| Each pair has different lay length for cross-talk prevention and ripcord added |
| Category 5e cable |
| 9.38 Ohm/100 m at 20 deg C max DC resistance |
| White/black with black, white/orange with orange, white/green with green, white/brown with brown color pair cable |
| 100 +/-15 Ohm at 1 to 100 MHz characteristic impedance |
