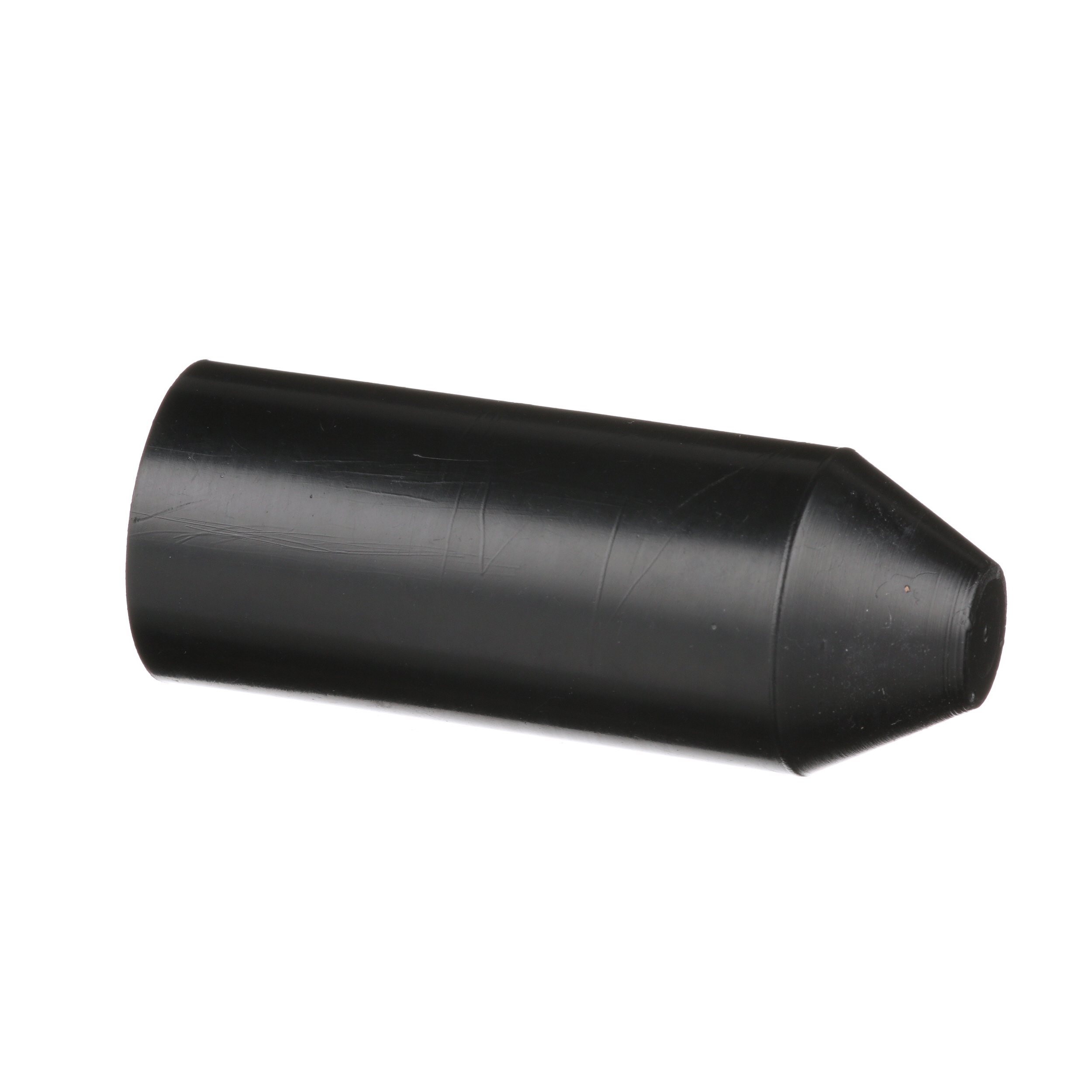

Panduit® HSEC0.5-X HSEC Heat Shrink Cable End Cap, 600 VAC, 8 to 4 AWG Cable, 0.47 in ID Dia x 1.38 in L
Cable End Seals & Caps
71515
MFG #: HSEC0.5-X
Panduit®
6.77000
/ ea
- Application: Wet Applications. Applications Include Insulating and Protecting Wires and Cables
- ARRA Compliant: Y
- Buy American Compliant: Y
- Catalog Number: HSEC0.5-X
- Color: Black
- Continuous Operating Temperature: 257 °F
- Country of Origin: IND
- Currency: USD
- EU RoHS Indicator: Y
- Flammability: None
- Gross Volume UOM: CF
- Gross Volume UOM Metric: m3
- Gross Weight Per Pack: 0.0200 lb
- Gross Weight per Pack Metric: 0.09
- Gross Weight UOM Metric: kg
- Height: 1.40 in
- Height [Metric]: 3.5560 cm
- Inner Diameter Expanded: 0.47
- Inner Diameter Recovered: 0.18
- Inside Diameter: 0.18 in
- Length [Metric]: 20.5740 cm
- Outside Diameter: 0.47 in
- Returnable: Y
- Series: HSEC
- Shrink Ratio: 2.5:1
- Specifications: 2.5:1 Shrink Ratio, 0.1 in THK Nominal Recovered Wall
- Standard: RoHS Compliant
- Standards: ARRA CompliantBuy American Act CompliantRoHS Compliant
- Sub Brand: Wet-Shrink?„?
- Temperature Rating: -40 to 257 °F
- Thickness: 0.09 in
- Type: Heat Shrink End Cap
- UNSPSC: 39121723
- UPC 11: 07498391330
- UPC 12: 07498391330
- Volume Resistivity: Moisture Resistant
- Width: 5.95 in
- Width [Metric]: 15.1130 cm
- Stock Status: NONSTOCK
- Brand: Panduit®
- Manufacturer: Panduit®
- Cable Size: 8 to 4 AWG
- Diameter: 0.18 in ID x 0.47 in OD
- Length: 8.10 in
- Material: Polyolefin
- Voltage Rating: 600 VAC
Panduit® Cable End Cap, Heat Shrink, Series: HSEC, 8 to 4 AWG Cable, 0.47 in ID Dia, 1.38 in Length, -40 to 257 deg F, 600 VAC, 2.5:1 Shrink Ratio, 0.1 in THK Nominal Recovered Wall, Adhesive Lined Cross Linked Polyolefin, Black
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - C-HSHSEC05-X--ENG.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet 1 URL - Panduit_HSEC0_5_X_Datasheet_1.pdf(Spec Sheet 1 URL)
- Tech Drawing URL - 10965_WID1FRNKP0J4Z8LM.pdf(Tech Drawing URL)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/1/91/991/4991/110524991.mp4(Video)
- Applications
- Features
| Wet Applications. Applications Include Insulating and Protecting Wires and Cables |
| Adhesive lined black cross linked polyolefin |
| Adhesive lined inner wall seals and provides excellent protection against moisture |
