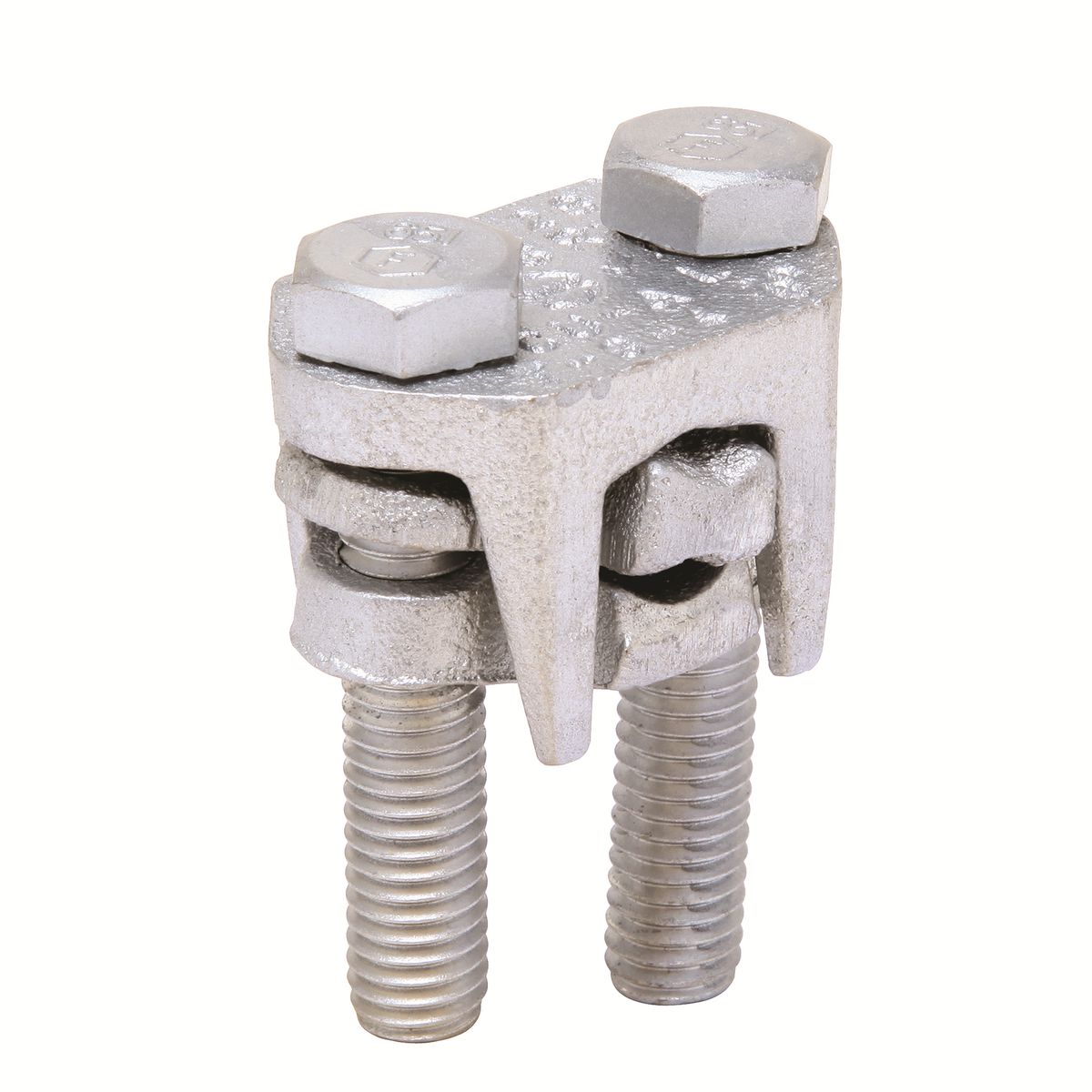

Burndy® KVSU34 Oklip™ KVSU Universal Mechanical Connector, 400 to 500 kcmil, 4 AWG to 500 kcmil, 4 to 4/0 AWG, 1/2 in Bolt
Overhead Mechanical Connectors
19407
MFG #: KVSU34
BURNDY®
151.73000
/ ea
- Application: For All Combinations Of Copper, Aluminum, ACSR, AAAC And 5005
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: KVSU34
- Country of Origin: MX
- Dimensions: 1-1/2 in L x 2-1/4 in W x 3 in H
- EU RoHS Indicator: Y
- Finish: Tin Plated
- Gross Weight Per Pack: 0.8600 lb
- Gross Weight per Pack Metric: 0.39
- Harmonization Tariff Schedule Code: 8535908040
- Height: 3.06
- Height [Metric]: 7.7724
- Length: 1.34
- Length [Metric]: 3.4036
- Returnable: Y
- Series: KVSU
- Specifications: 375 in-lb Installation Torque
- Sub Brand: OKLIP
- UNSPSC: 39121408
- UPC 11: 78181008330
- UPC 12: 781810083307
- Width: 2.20
- Width [Metric]: 5.5880
- Stock Status: NONSTOCK
- Brand: BURNDY®
- Manufacturer: BURNDY®
- Bolt Size: 1/2 IN
- Conductor Size: 336.4 to 500 kcmil, 4 AWG Solid to 500 kcmil
- Conductor Type: Commercial Aluminum/Solid/Stranded Copper
- Material: Copper Alloy
- Type: KVS, Compact, Universal
BURNDY® Oklip™ Mechanical Connector, Universal, Series: KVSU, Aluminum/Solid/Stranded Copper Conductor, 400 to 500 kcmil, 4 AWG to 500 kcmil, 4 to 4/0 AWG Conductor, 1/2 in Bolt, Copper, Tin Plated, 1-1/2 in L x 2-1/4 in W x 3 in H
- Brochure URL - 10969_12B4ECX9ZSKQN8WA.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_617c677ac3f948c608cad345164abd8e4e757eefdf466234caaf0dde4e833d6d.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- Line Drawing URL - 10969_ID-DRW-v1-sd054222-01.pdf(Line Drawing URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sd054222-01.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-sd054222-01.pdf(Tech Drawing URL)
- Applications
- Features
| For All Combinations Of Copper, Aluminum, ACSR, AAAC And 5005 |
| Features: Compact, Tin Plated High Strength Copper Alloy Two-Piece Connector With Spacer And Tin-Plated Silicon Bronze DURIUM Hardware, Recommended For Heavy Duty Connections, Spacer Separates Dissimilar Conductors And Provides Long Contact Length, Neoprene Ring Prevents Loss Of Shorter Bolt During Installation, Longer Peened Bolt Permits Swivel Action For Easier Installation, Use Of PENETROX Joint Compound Recommended With Aluminum And ACSR, Conductor Type: Run And Tap: Commercial Stranded Copper, Commercial Stranded Aluminum, ACSR, Solid Copper, 5005, Solid Copperweld, AAAC, Steel, Nominal Diameter, Stud/bolt Size: 1/2 IN, Installation Torque: 375 IN-LB, Length: 1-1/2 IN, Width: 2-1/4 IN, Height: 3 IN |
| Compact, high strength, tin plated copper alloy 2-piece connector with spacer and tin plated silicon bronze durium hardware |
| Recommended for heavy duty dissimilar metal connection applications |
| Spacer separates dissimilar conductors and provides long contact length |
| Neoprene ring prevents loss of shorter bolt during installation |
| Longer peened bolt permits swivel action for easier installation |
| Use of PENETROX® joint compound recommended with aluminum and ACSR |
| 3/4 in cross flats wrench |
