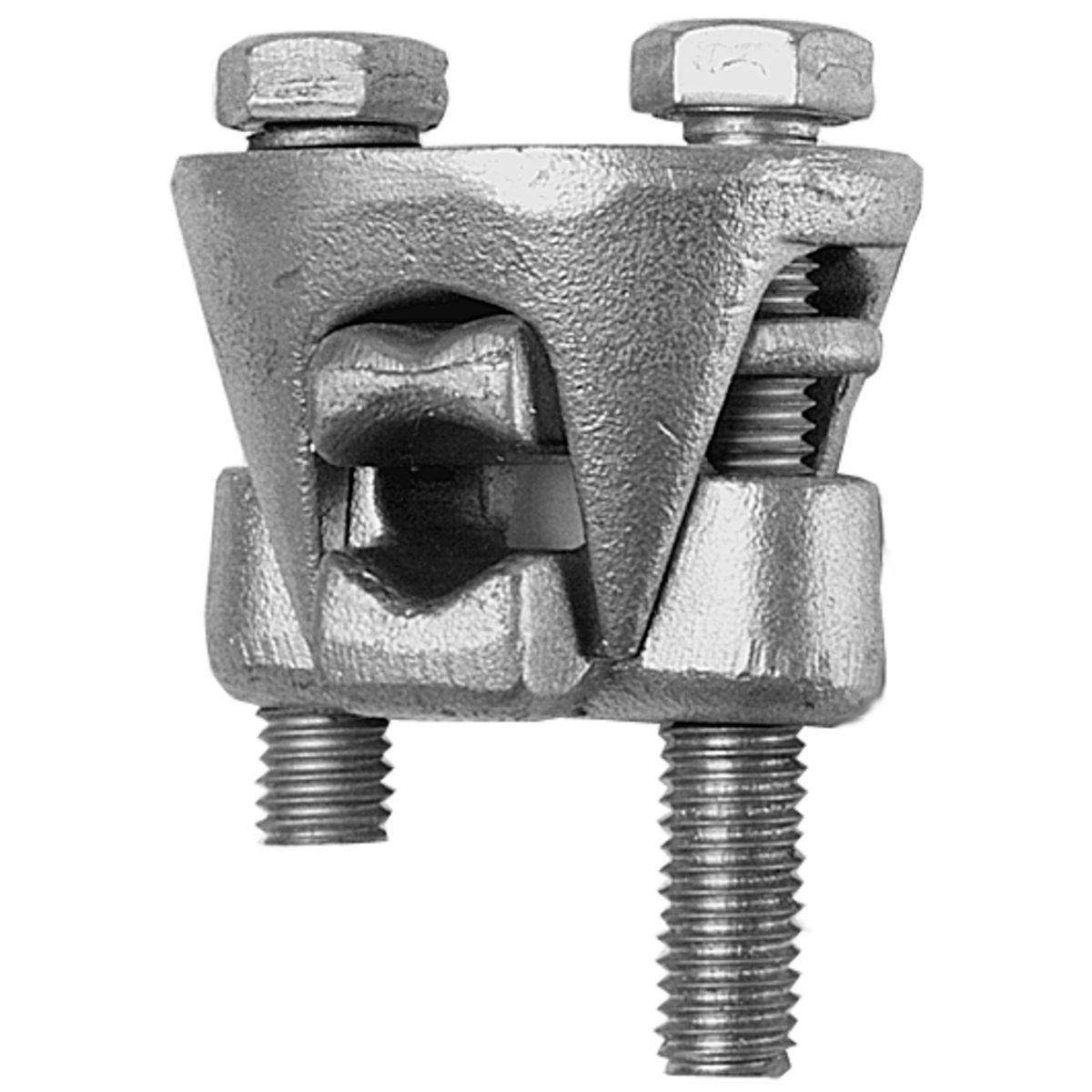

Burndy® KVS40A Oklip™ KVS-A Mechanical Connector, 400 to 800 kcmil, 3/0 AWG to 800 kcmil Aluminum/Stranded Copper Conductor
Overhead Mechanical Connectors
973806
MFG #: KVS40A
BURNDY®
219.16000
/ ea
- Application: For All Combinations Of Copper, Aluminum, ACSR, AAAC And 5005
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: KVS40A
- Country of Origin: US
- Dimensions: 2-7/16 in L x 2-7/8 in W x 4-1/16 in H
- EU RoHS Indicator: Y
- Finish: Tin Plated
- Gross Weight Per Pack: 0.8000 lb
- Gross Weight per Pack Metric: 0.36
- Harmonization Tariff Schedule Code: 8535908040
- Height: 4.06
- Height [Metric]: 10.3124
- Length: 2.44
- Length [Metric]: 6.1976
- Returnable: Y
- Series: KVS
- Specifications: 300 in-lb Installation Torque
- Sub Brand: OKLIP
- UNSPSC: 39121408
- UPC 11: 78181007350
- UPC 12: 781810073506
- Width: 2.84
- Width [Metric]: 7.2136
- Stock Status: NONSTOCK
- Brand: BURNDY®
- Manufacturer: BURNDY®
- Bolt Size: 1/2 IN
- Conductor Size: 336.4 to 800 kcmil, 3/0 AWG to 800 kcmil
- Conductor Type: Commercial Aluminum/Stranded Copper
- Material: Aluminum Alloy
- Type: KVS
BURNDY® Oklip™ Mechanical Connector, Series: KVS-A, Aluminum/Stranded Copper Conductor, 400 to 800 kcmil, 3/0 AWG to 800 kcmil Conductor, 1/2 in Bolt, Aluminum, Unplated, 1.62 in L x 2.84 in W x 3.19 in H
- Brochure URL - 10969_ID-SPE-v1-KVS40A.pdf(Brochure URL)
- Brochure URL - BURNDY_KVS40A_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_530de64e23e3aa1c1cf5ada4b28d1d05e39f08f6aff3ed094a4e00c8634df6d2.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_ID-DRW-v1-sd063282-01.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_M4ECXKYTL1ASVQ23.pdf(Spec Sheet URL)
- Spec Sheet URL - ID-SPE-v1-KVS40A.pdf(Spec Sheet URL)
- Spec Sheet URL - KVS40A.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sd063282-01.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-sd063282-01.pdf(Tech Drawing URL)
- Tech Drawing URL - sd063282-01.pdf(Tech Drawing URL)
- Applications
- Features
| For All Combinations Of Copper, Aluminum, ACSR, AAAC And 5005 |
| Features: Three-Piece, High-Conductivity, Non-Copper Bearing Aluminum Alloy Connector With Thick Spacer And Aluminum Hardware, Recommended For Heavy Duty Dissimilar Metal Applications, Spacer Separates Conductors And Provides Long Contact Length, Belled Entrances Prevent Chafing, Permit Easier Assembly Of Conductors, Longer Peened Bolt Permits Swivel Action For Easier Installation, Neoprene Ring Prevents Loss Of Shorter Bolt, PENETROX Joint Compound Recommended With Aluminum And ACSR, Conductor Type: Run And Tap: Commercial Stranded Copper, Commercial Stranded Aluminum, ACSR, 5005, AAAC, Stud/bolt Size: 1/2 IN, Length: 2-7/16 IN, Installation Torque: 300 IN-LB, Width: 2-7/8 IN, Height: 4-1/16 IN, Conductor Spacer: Yes |
| 3-piece, high conductivity, non-copper bearing aluminum alloy connector with thick spacer and aluminum hardware |
| Recommended for heavy duty dissimilar metal applications |
| Spacer separates conductors and provides long contact length |
| Belled entrances prevent chafing and permit easier assembly of conductors |
| Longer peened bolt permits swivel action for easier installation |
| Neoprene ring prevents loss of shorter bolt |
| Penetrox joint compound recommended with aluminum and ACSR, conductor |
| Intended for heavy duty applications |
| ACSR, 5005, AAAC run and tap conductor |
| 1.036 in maximum run and tap diameter |
