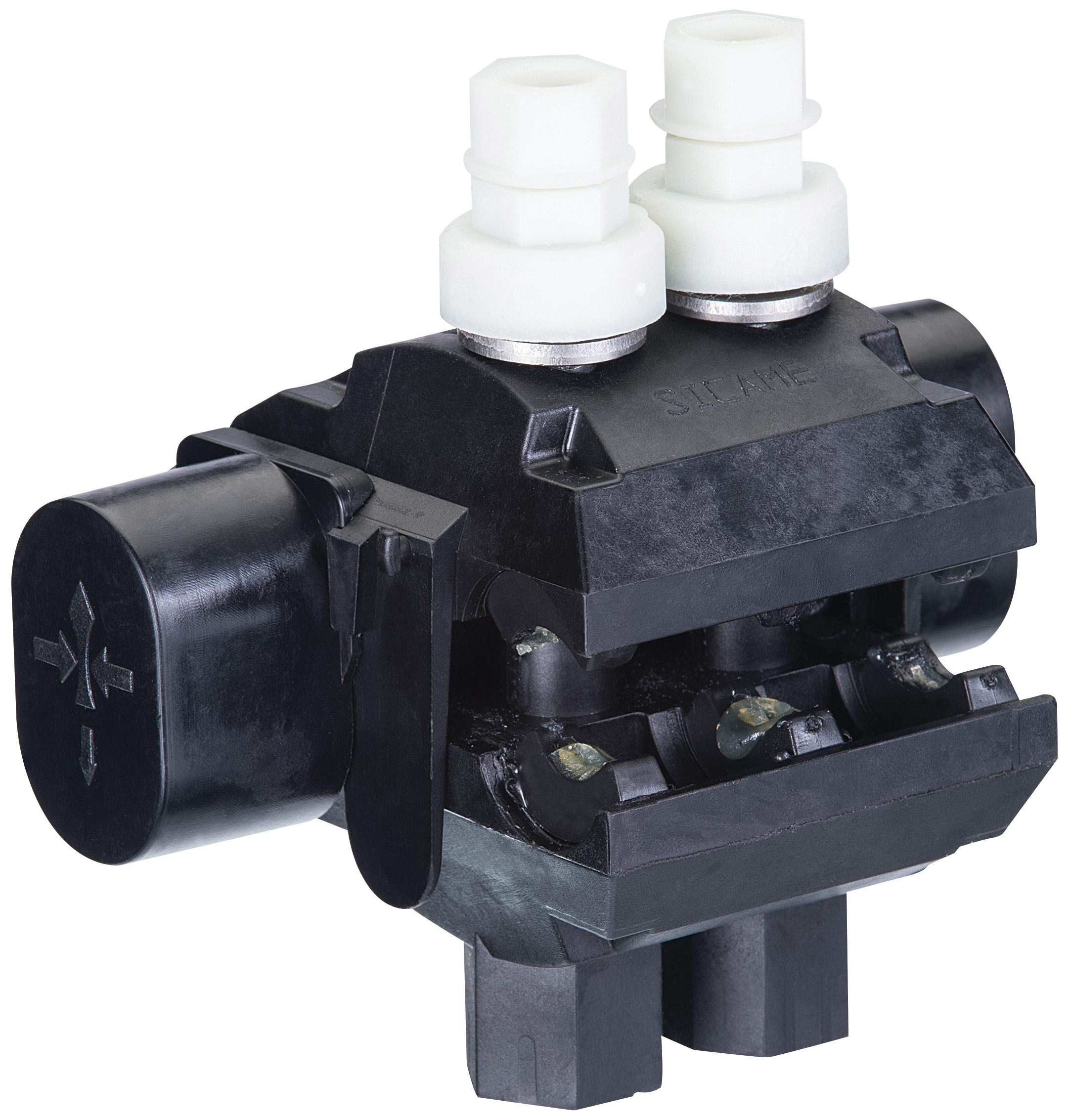

Ideal® BTC350-1/0 Insulation Piercing Tap Connector
Piercing Insulated Connectors
681419
MFG #: BTC350-1/0
IDEAL®
179.59000
/ ea
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: BTC350-1/0
- Country of Origin: USA
- Currency: USD
- Dimensions: 4.5 in H x 3 in W x 3.9 in D
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 1.3420 lb
- Gross Weight per Pack Metric: 0.61
- Gross Weight UOM Metric: kg
- Height: 3.00 in
- Height [Metric]: 7.6200 cm
- Length: 9.00 in
- Length [Metric]: 22.8600 cm
- Material Composition: https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
- Material Composition Declaration: https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
- Specifications: 2-Bolt, 3.9 in-lb Torque, 5/8 in Socket
- Standard: CSA, UL Listed,RoHS
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedUL Listed
- Sub Brand: B-TAP®
- Tap Size: 350-1/0 AWG
- Temperature Rating: 90 °C
- Type: Insulation-Piercing
- UNSPSC: 39121427
- UPC 11: 78178945450
- UPC 12: 781789454504
- Voltage Rating: 600 V
- Width: 8.25 in
- Width [Metric]: 20.9550 cm
- Stock Status: NONSTOCK
- Brand: IDEAL®
- Manufacturer: Ideal Industries
- Conductor Size: 350 MCM - 1/0 AWG Main, 350 MCM - 1/0 AWG Tap
IDEAL® B-TAP® Tap Connector, Insulation Piercing, 600 VAC, 1/0 AWG to 350 kcmil Wire, 330 in-lb Torque, 90 deg C, 4.5 in H x 3 in W x 3.9 in D
- Brochure URL - 11020_V5MD9R3W8A2E7BGO.pdf(Brochure URL)
- Compliance Cert URL - IDEAL_85_147_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.idealindustries.com(Seller Home Page URL)
- Material Composition - US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF(Material Composition)
- ROHS Compliance URL(ROHS Compliance URL)
- Safety Data Sheet URL - b-tap_msds.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 0(Spec Sheet URL)
- Features
| Features: Eliminates Split Bolts And Tape; Easy Two-Minute Installation Requires Only Box/Socket Wrench; Installs On Energized Systems Eliminating Costly Power Shutdowns; Self-Sealing, Grease-Filled End-Cap Ensures Safe, Weather-Tight Connection; Unique Turbo Spacer Keeps Connector Wide Open For Quick And Easy Installation; Torque-Regulating nut Breaks Off When Proper Tension Is Reached; Full-Line Is 600 V Dual-Rated,194 DEG F (90 DEG C); Socket Size: 5/8 IN; Height: 4.500 IN; Depth: 3 IN; Torque: 3.900 IN-LB; Number Of Bolts: 2 |
| Breakaway torque nut snaps off when UL torque requirements are met |
| Second nut remains for easy connector removal |
| Self-insulated housing eliminates the need for tape, safely installs on energized systems |
| Grease filled end cap seals end of conductor for superior weather protection |
| Grease filled boots protect copper teeth from corrosion and prevent arcing |
| Hardened copper teeth pierce insulation and bite into conductors |
| Torque regulating nut breaks off when proper tension is reached |
| Easy 2 min installation requires only box/socket wrench |
| Can be used on copper-copper, aluminum-aluminum, copper-aluminum and aluminum-copper when used in non-tension, insulated applications |
| Installs on energized systems eliminating costly power shutdowns |
| Unique turbo spacer keeps connector wide open for quick and easy installation |
| Eliminates split bolts and tape |
| Self-sealing, grease filled end cap ensures safe |
| Weathertight connection |
