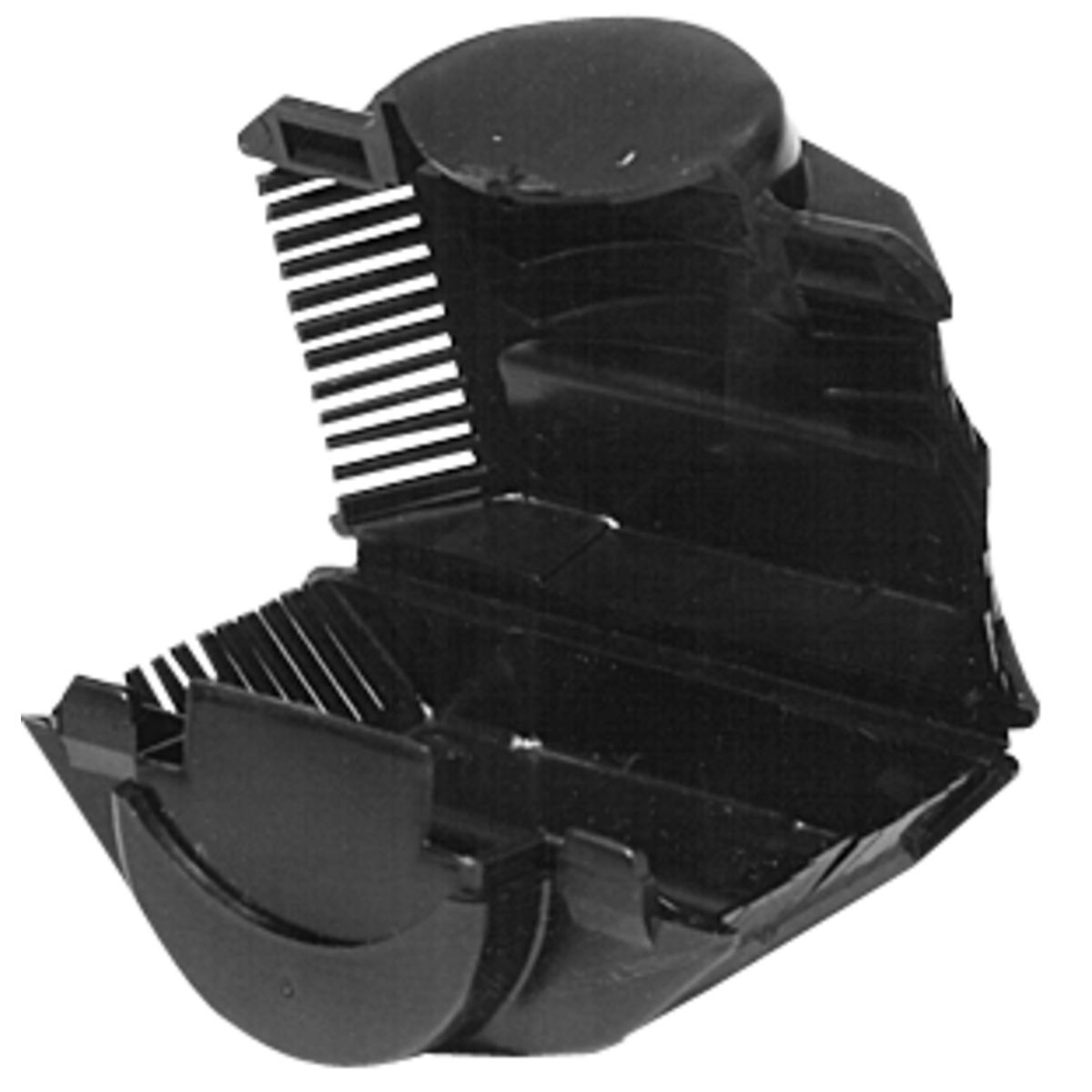

Burndy® Servit® SC2 Insulating Split Bolt Cover, Plastic
Mechanical Connector Covers
19403
MFG #: SC2
BURNDY®
5.35000
/ ea
- Application: For Used In Indoors Or Outdoors Applications, KS23, KSA4
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: SC2
- Country of Origin: US
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 0.0300 lb
- Gross Weight per Pack Metric: 0.01
- Harmonization Tariff Schedule Code: 3926909985
- Height: 2.03
- Height [Metric]: 5.1562
- Length: 2.75
- Length [Metric]: 6.9850
- Returnable: Y
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 486A File No. E9498
- Sub Brand: SERVIT COVER
- Type: SC
- UNSPSC: 39121408
- UPC 11: 78181004200
- UPC 12: 781810042007
- Voltage Rating: 600 VAC
- Width: 2.50
- Width [Metric]: 6.3500
- Stock Status: NONSTOCK
- Brand: BURNDY®
- Manufacturer: BURNDY®
- Conductor Size: 6 to 2 AWG, 14 to 2 AWG
- Material: Plastic
- Suitable For Use With: KS22, KS20-3, KS23, KS22-3, KSA6, KSA4, KSU22 and KSU23 Series Copper Split Bolt Connectors
BURNDY® Servit® Split Bolt Cover, Insulating, For Use With: KS22, KS20-3, KS23, KS22-3, KSA6, KSA4, KSU22, KSU23 Copper Split Bolt Connector, Plastic
- Brochure URL - 10969_UGW72BAP1CLY6KZ9.pdf(Brochure URL)
- Brochure URL - BURNDY_SC2_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_144a5161d639dda06ec12d6c131ac51c22bb9d91f9ad67cd600e01b1e2441e33.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10969_BDUKHF9AZM5TJIY0.pdf(Spec Sheet URL)
- Spec Sheet URL - SC2.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_4L572U8DINHZA0Y6.pdf(Tech Drawing URL)
- Tech Drawing URL - 55877.pdf(Tech Drawing URL)
- Applications
- Features
| For Used In Indoors Or Outdoors Applications, KS23, KSA4 |
| Features: Used Indoors Or Outdoors This Compact, One-Piece Plastic SERVIT Cover, Saves Time And Material, Eliminates Costly Taping Of Split-Bolts, Positive Latch Snaps Easily And Quickly Over Connector, Ideal For Tight Quarters, Self Positioning Plastic Fingers Wrap Around Wires Fully Insulating Joint, UL Listed For 600 Volt Indoor Application, Three Covers Accommodate A Range Of 6 SERVIT Sizes Through 2/0 Stranded |
| Saves time and, eliminates Costly Taping of Split-Bolts, positive latch snaps easily and Quickly over connector |
| Ideal for tight quarters, self positioning plastic fingers wrap around wires fully insulating joint |
| Three covers accommodate a range of 6 SERVIT sizes through 2/0 stranded |
