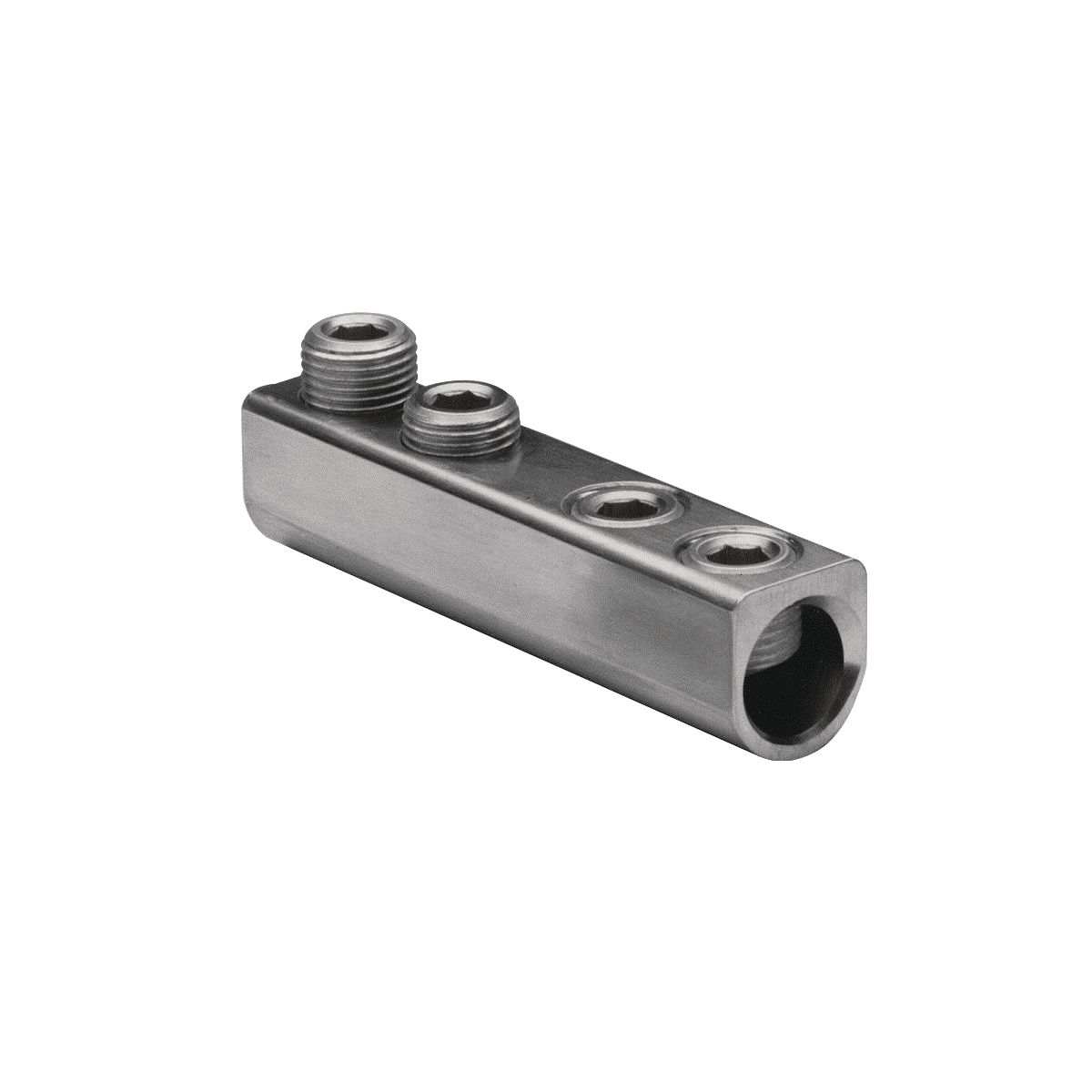

Burndy® AMS750 AMS Dual Rated Non-Insulated Mechanical Splice, 250 to 750 kcmil Stranded Copper/Stranded Aluminum Conductor
Mechanical Cable Splices
85822
MFG #: AMS750
BURNDY®
37.81000
/ ea
- Application: For Use With Copper And Aluminum Conductors
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: AMS750
- Country of Origin: US
- Dimensions: 6.0625 in L x 1.4375 in W x 1.98 in H
- EU RoHS Indicator: Y
- Finish: Tin Plated
- Gross Weight Per Pack: 0.9100 lb
- Gross Weight per Pack Metric: 0.41
- Harmonization Tariff Schedule Code: 8535908020
- Height: 1.98
- Height [Metric]: 5.0292
- Length: 6.06
- Length [Metric]: 15.3924
- Returnable: Y
- Series: AMS
- Specifications: 1/2 in Hex, 15/16 in Dia Screw, 500 in-lb Installation Torque
- Standard: ANSI C119.4
- Sub Brand: SPLICER/REDUCER
- Temperature Rating: 194?° F
- Type: AMS, Dual Rated
- UNSPSC: 39121458
- UPC 11: 78181024106
- UPC 12: 781810241066
- Width: 1.44
- Width [Metric]: 3.6576
- Stock Status: NONSTOCK
- Brand: BURNDY®
- Manufacturer: BURNDY®
- Conductor Size: 250-750 KCMIL kcmil
- Conductor Type: Aluminum/Copper/Solid/Stranded
- Material: Aluminum
- Number of Screws: 4
BURNDY® Mechanical Splice, Dual Rated Non-Insulated, Series: AMS, Copper/Stranded Aluminum Conductor, 250 to 750 kcmil Stranded Conductor, 4 Number of Screws, 1/2 in Hex Size 15/16 in Screw Dia, 500 in-lb Installation Torque, Aluminum, Tin Plated, 6.0625 in L x 1.4375 in W x 1.625 in H1 x 1.98 in H2
- Brochure URL - 10969_RDTMEC2K5LGQJP7W.pdf(Brochure URL)
- Brochure URL - BURNDY_AMS750_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_c3f6f28953c656f02bb28559978134faf3ddbf2939fa10e60cb83fb5bddbe679.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_ID-DRW-v1-sd207208-01.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_K0NVLGR7BTYU4M25.pdf(Spec Sheet URL)
- Spec Sheet URL - AMS750.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sd207208-01.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-sd207208-01.pdf(Tech Drawing URL)
- Tech Drawing URL - sd207208-01.pdf(Tech Drawing URL)
- Applications
- Features
| For Use With Copper And Aluminum Conductors |
| Features: All Splicer/Reducers Are Dual Rated For Use With Aluminum And Copper Conductors And Are Constructed From High Strength, Tin Plated Aluminum, PENTROX Oxide Inhibiting Joint Compounds Are Recommended For All Aluminum Applications, All Connectors Are Tin-Plated: Provide Low Contact Resistance And Prevents Galvanic Corrosion, Connectors Feature Rounded Bottoms: Facilitates Taping, Solid Center Barrier: Prevents Contact Of Dissimilar Metals, Large Screw Diameters: Ensures Greater Surface Contact With Wires For Maximum Pullout Force, Large Cable Ranges: Each Splice Is Also An Effective Reducing Connector, Conductor Type: Copper, Aluminium, Number Of Screws: 4, Hex Size: 1/2 IN, Screw Diameter: 15/16 IN |
| All splicer/reducers are dual rated for use with aluminum and copper conductors and are constructed from high strength aluminum |
| PENTROX® oxide inhibiting joint compounds are recommended for all aluminum applications |
| Tin-plated provides low contact resistance and prevents galvanic corrosion |
| Connectors feature rounded bottoms facilitates taping |
| Solid center barrier prevents contact of dissimilar metals |
| Large screw diameters ensures greater surface contact with wires for maximum pullout force |
| Each splice is an effective reducing connector because of large cable ranges |
| 250 - 750 kcmil stranded conductor range for copper |
| 250 - 750 kcmil conductor range for aluminum |
