BURNDY®

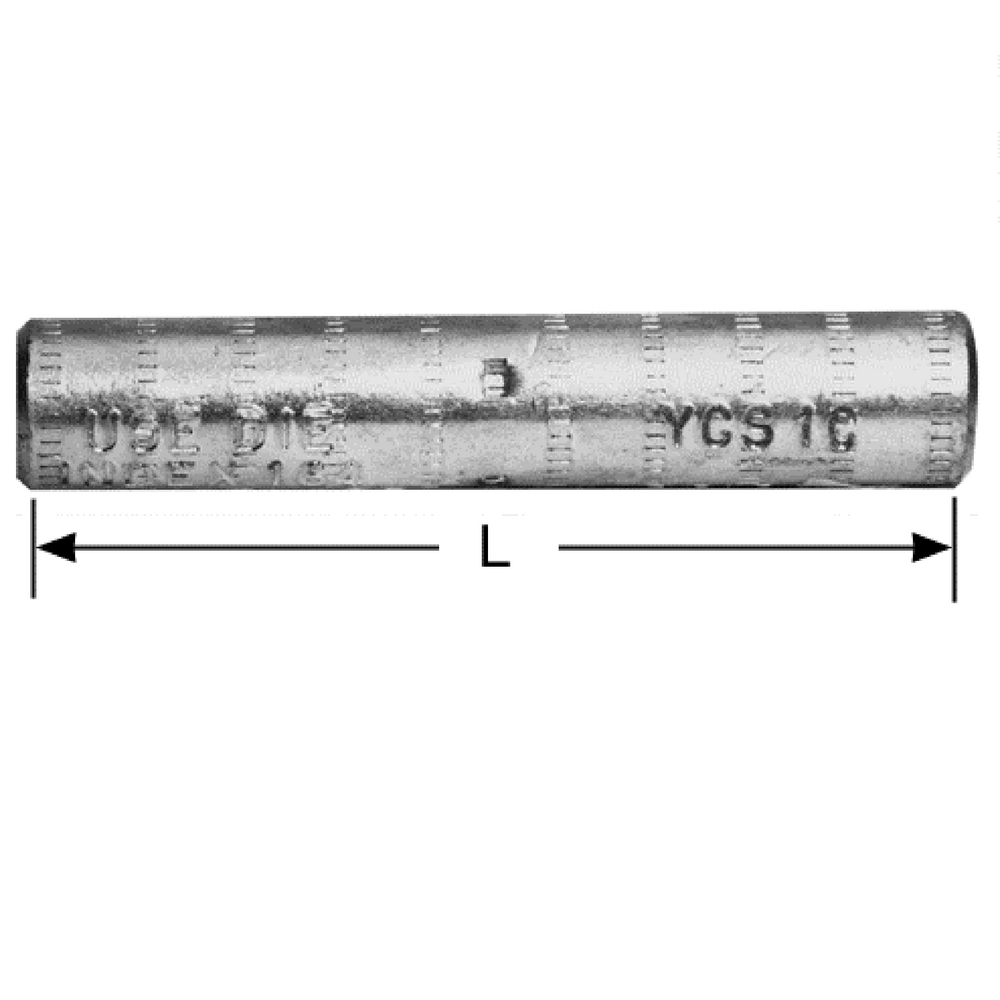

Burndy® YCS45R 795 AL JUMPER
BURNDY®
Burndy® YCS45R 795 AL JUMPER
SKU938281
MFGR #YCS45R
Your Cost: $390.89/ea
HYSPLICE AL sleeve with staked cable stop, designed to withstand jumper loop tensile and vibration stresses. ANSI C119.4 CLASS 2 (PARTIAL TENSION), Index:352
HYSPLICE AL sleeve with staked cable stop, designed to withstand jumper loop tensile and vibration stresses. ANSI C119.4 CLASS 2 (PARTIAL TENSION), Index:352
Application For ACSR, All Aluminum, 6201, 5005 And Compressed Conductors Catalog Number YCS45R Conductor Range ACSR, 6201, 5005: 795 KCMIL (26-7, 54-7); All Aluminum 900 KCMIL (61, 91) Country of Origin US Gross Weight Per Pack 1.6000 lb Size 10-5/8 IN Length Standard RUS Accepted, RoHS Compatible Sub Brand HYSPLICE Type YCS-R UNSPSC 39121449 UPC 11 78181001509 UPC 12 781810015094 Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Material Aluminum For ACSR, All Aluminum, 6201, 5005 And Compressed Conductors Features: HYSPLICE Sleeve Designed To Withstand Jumper Loop Tensile And Vibration Stresses, Made Of Aluminum With Staked-In Cable Stop, Installed With Same Die As Equivalent Fulltension Sleeves, Pre-Filled With PENETROX Joint Compound, Tools, Die Set Catalog Number, And (number Of Crimps): Y45 Tool, S352 Die, (9), Y46 Tool, P352 Die, (9), Y48B Tool, C352 Die, (3), Y60BHU Tool, L352 Die, (3), Die Index: 352 Element A, Conductor Type: ACSR, 6201, 5005, Aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For ACSR, All Aluminum, 6201, 5005 And Compressed Conductors |
| Catalog Number | YCS45R |
| Conductor Range | ACSR, 6201, 5005: 795 KCMIL (26-7, 54-7); All Aluminum 900 KCMIL (61, 91) |
| Country of Origin | US |
| Gross Weight Per Pack | 1.6000 lb |
| Size | 10-5/8 IN Length |
| Standard | RUS Accepted, RoHS Compatible |
| Sub Brand | HYSPLICE |
| Type | YCS-R |
| UNSPSC | 39121449 |
| UPC 11 | 78181001509 |
| UPC 12 | 781810015094 |
| Stock Status | NONSTOCK |
| Brand | BURNDY® |
| Manufacturer | BURNDY® |
| Material | Aluminum |
| For ACSR, All Aluminum, 6201, 5005 And Compressed Conductors |
| Features: HYSPLICE Sleeve Designed To Withstand Jumper Loop Tensile And Vibration Stresses, Made Of Aluminum With Staked-In Cable Stop, Installed With Same Die As Equivalent Fulltension Sleeves, Pre-Filled With PENETROX Joint Compound, Tools, Die Set Catalog Number, And (number Of Crimps): Y45 Tool, S352 Die, (9), Y46 Tool, P352 Die, (9), Y48B Tool, C352 Die, (3), Y60BHU Tool, L352 Die, (3), Die Index: 352 Element A, Conductor Type: ACSR, 6201, 5005, Aluminum |
