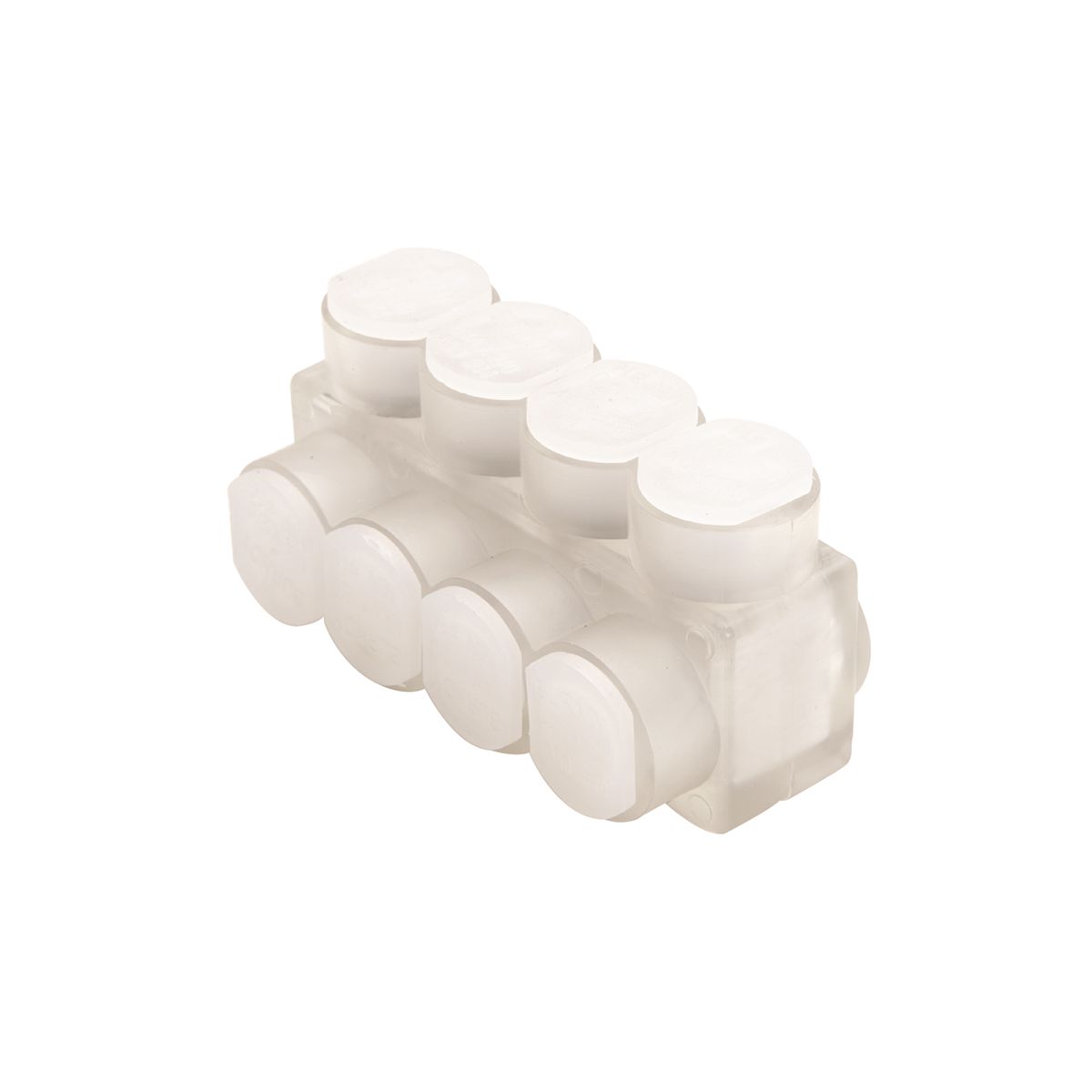

Burndy® BIBS44 UNITAP™ BIBS 1-Sided Entry Multi-Tap Connector With Mounting Holes, 14 to 4 AWG, Copper/Stranded Aluminum
Compression Multi Taps
19449
MFG #: BIBS44
BURNDY®
27.59000
/ ea
- Application: For Indoor Use Only, Copper Or Stranded Aluminum
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: BIBS44
- Country of Origin: US
- Dimensions: 2.03 in L x 1.25 in W x 1.25 in H
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 0.1300 lb
- Gross Weight per Pack Metric: 0.06
- Harmonization Tariff Schedule Code: 8536904000
- Height: 1.25
- Height [Metric]: 3.1750
- Length: 1.95
- Length [Metric]: 4.9530
- Returnable: Y
- Series: BIBS
- Specifications: 1/8 in Hex Key, 45 in-lb Torque Multi-Port, 5/8 in Stripe
- Standard: UL 486A-486B
- Sub Brand: UNITAP
- Temperature Rating: 194 °C
- Type: BIBS, Multi-Port
- UNSPSC: 39121427
- UPC 11: 78181013412
- UPC 12: 781810134122
- Voltage Rating: 600 VAC
- Width: 1.25
- Width [Metric]: 3.1750
- Stock Status: NORMALLY STOCKED
- Brand: BURNDY®
- Manufacturer: BURNDY®
- Conductor Size: 14-4 AWG
- Conductor Type: Copper/Stranded Aluminum
- Material: Aluminum
UNITAP™ Clear Insulated Multi-Tap is UL Listed to the UL Wire Connector Standard UL486A-486B and CSA Certified for use with flexible (fine stranded) conductor - with no ferrules required! Featuring color coordinated conductor port and screw port caps making it easy to identify the maximum conductor size accommodated by the connector.
- Brochure URL - 10969_0PBLSYF2UQA14CV8.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_5d79f3e3453f4e9fa18dbdae3b3d3e1c37bea7ef25be163f5d30337283f9d843.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- Line Drawing URL - 10969_ID-DRW-v1-sc210991-10.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_NBUPRWL8G6Z2KQV1.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sc210991-10.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-sc210991-10.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/Hmx29QDaZrM(Video)
- Applications
- Features
| For Indoor Use Only, Copper Or Stranded Aluminum |
| Features: UNITAP Rated For Code Conductor Only, Wire Entry: Single, Torque: 45 IN-LB, Hex Size (key): 1/8 IN, Conductor Size (run - Range): 14 - 4 AWG, Wire Strip Length: 5/8 IN, Type Of Insulation: Plastisol, Number Of Ports: 4 |
| Clear plastisol insulation allows visual confirmation that conductor is properly inserted |
| Clear plastisol covered AL6061-T6 aluminum body saves time, lowers installation costs, eliminates taping |
| Oxide inhibitor pre-installed which inhibits moisture and contaminants from entering the contact area |
| Range taking reduces number of connectors carried in inventory |
| 4-Ports, 4 screw |
| Unplated, inspectable |
| 4, 8, 12, 10, 14, 6 AWG stranded copper, 8 to 4 AWG aluminum |
