- Alternate Catalog Number: 7TAH007310R0009
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: 54775
- Conductor Size: 250-500
- Country of Origin: US
- Currency: USD
- EU RoHS Indicator: C
- Finish: No Finish
- Gross Weight Per Pack: 0.2400 lb
- Gross Weight per Pack Metric: 0.11
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536904000
- Height: 0.01 in
- Height [Metric]: 0.0254 cm
- Item Group: 1L
- Item Group 2: 1L7
- Length: 0.01 in
- Length [Metric]: 0.0254 cm
- Returnable: A
- Standard: UL E9809
- Standards: CSA Certified, RoHS Compliant, UL E9809 Listed
- Sub Brand: Color Keyed
- Type: C-Tap
- UNSPSC: 39121428
- UPC 11: 78621054775
- UPC 12: 786210547756
- Voltage Rating: 600 V
- Width: 0.01 in
- Width [Metric]: 0.0254 cm
- Stock Status: NONSTOCK
- Brand: Color-Keyed®
- Manufacturer: Thomas & Betts
- Material: Copper
- Tap Size: 350 kcmil to 6 AWG
Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
- 360 Degree View URL - index.html?pid=12055&id=10761386360Den&ext=webp&rows=1&cols=48(360 Degree View URL)
- http://www.TNB.com(Seller Home Page URL)
- Install Instructions 1 URL - TA00629-TB2.pdf(Install Instructions 1 URL)

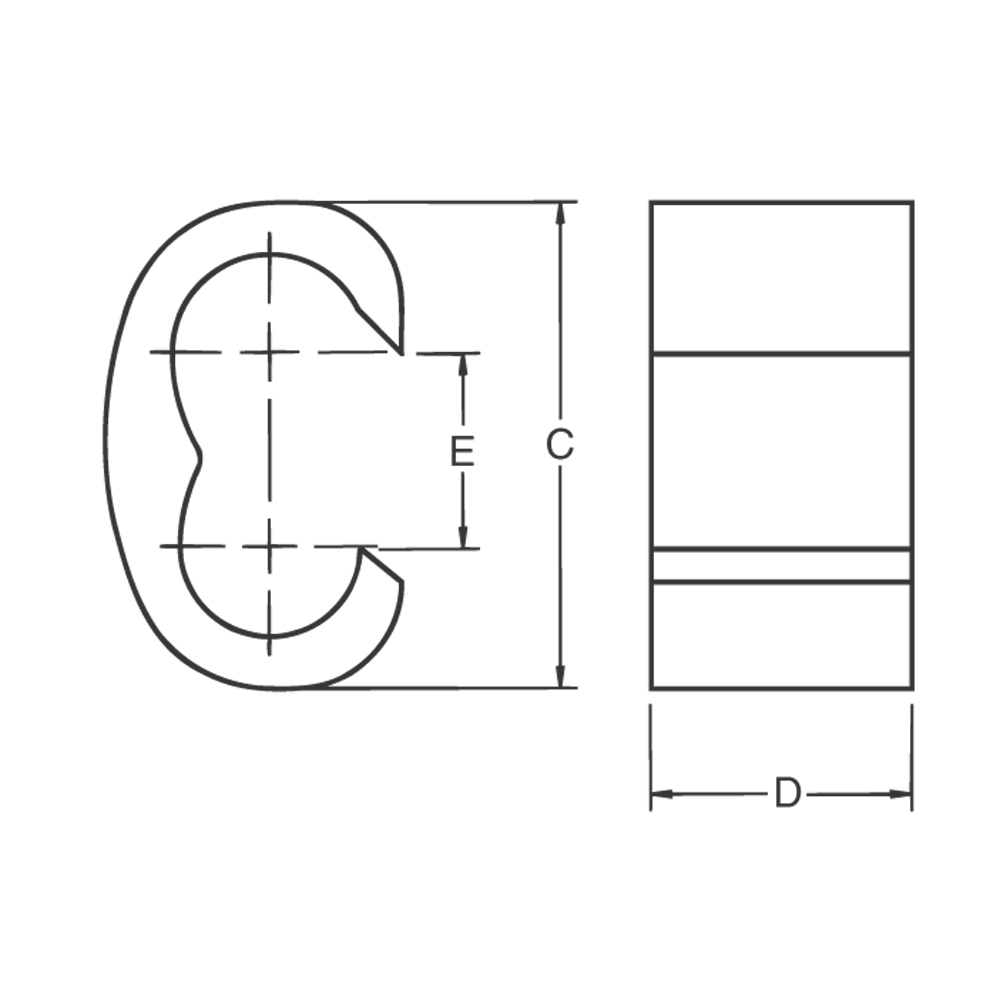

- Line Drawing URL - 54755_ck1ld_0(Line Drawing URL)
- ROHS Compliance URL - Color_Keyed_54775_RoHS_Sheet.pdf(ROHS Compliance URL)
- Spec Sheet URL - 12055_RBS24JKCIGZU1DXF.pdf(Spec Sheet URL)
- Features
| More economical than other taps and split bolts in terms of purchase, inventory, installation time, insulation and maintenance. |
| More economical than other taps and split bolts in terms of purchase, inventory, installation time, insulation and maintenance |
| Color coded for easy matching with proper die |
| Barely larger than conductor insulation once installed |
| 6 AWG branch must be doubled |
| Recommended for TBM15I application tools |
| 250 kcmil, 300 kcmil, 350 kcmil, 400 kcmil, 450 kcmil, 500 kcmil main wire size |
| 250 kcmil, 300 kcmil - 3/0 AWG, 350 kcmil - 1/0 AWG, 300 kcmil - 2 AWG, 250 kcmil - 4 AWG, 250 kcmil - 6 AWG tap size |
| 20 pieces |
