3M™ QI Series Splice Cold Shrink Quick Insulator, 0.4 in Min Dia, 1.45 in Max Diameter, 4-1/4 in L, 1400 psi Tensile
Heat Shrink Tubing Connector Insulators
900561
MFG #: QI-10/37-270
3M™
57.10000
/ ea
- Alternate Catalog Number: QI-10/37-270
- ARRA Compliant: X
- Buy American Compliant: X
- Catalog Number: QI-10/37-270
- Color: Black
- Construction: environmental seal of mastic plus reliability of 3M cold shrink
- Country of Origin: US
- Currency: USD
- Dielectric Strength: 365 V/mil
- Elongation: 7.5
- EU RoHS Indicator: Y
- Expiry|Spoilage Date Applicable Indicator: Y
- Gross Weight Per Pack: 6.4000 lb
- Gross Weight per Pack Metric: 2.90
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8546900000
- Height: 6.70 in
- Height [Metric]: 17.0180 cm
- Length [Metric]: 41.8084 cm
- Material Composition Declaration: RoHS 2011/65/EU compliant without exemption
- Returnable: Y
- Series: QI Series
- Size: 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil; 600 kcmil; 650 kcmil; 700 kcmil; 750 kcmil
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C119.1
- Type: Splice
- UNSPSC: 31270000
- UPC 11: 05112857698
- UPC 12: 051128576984
- Voltage Rating: 1k V
- Width: 11.88 in
- Width [Metric]: 30.1752 cm
- Stock Status: NONSTOCK
- Brand: 3M™
- Manufacturer: 3M™
- Length: 16.46 in
- Material: EPDM
- Maximum Diameter: 1.45 in
- Minimum Diameter: 0.4 in
- Tensile Strength: 1400 psi

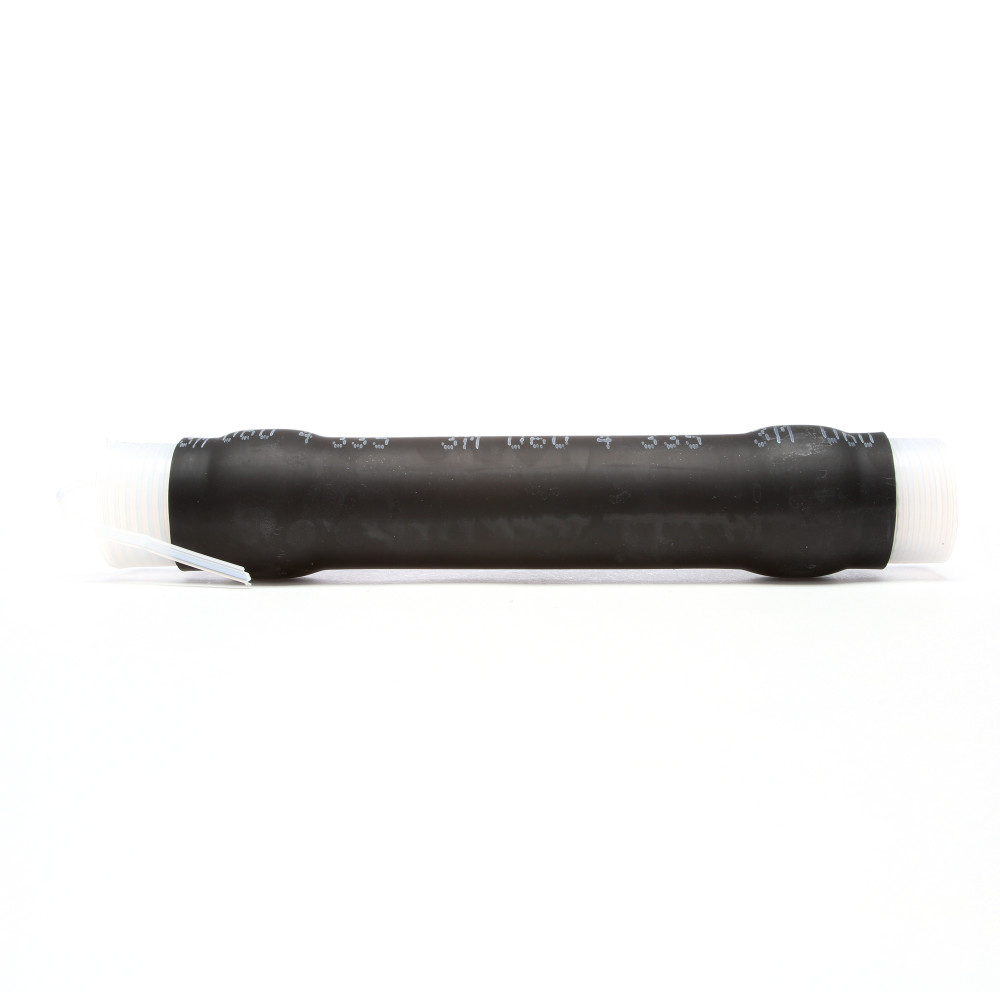

3M™ Cold Shrink Quick Insulator QI Series are open-ended tubular rubber sleeves with sealing mastic on each end that are factory expanded and assembled onto a removable core. The core is removed by pulling from one end after the QI insulator has been positioned over an inline connector, allowing the ends of the tube to shrink and form a water-resistant seal. Sizing of the core and tube, along with the sealing mastic on each end, provides a broader application range without degrading the seal and insulating characteristics of the EPDM rubber tube. Five diameter sizes will cover a range of 1000 volts or less cable from 8 AWG through 3000 kcmil, copper and aluminum conductors with crimped connectors.
- http://www.3m.com(Seller Home Page URL)
- Install Instructions 1 URL - 11579_6BI78JUV39ODS2C0.pdf(Install Instructions 1 URL)
- Install Instructions URL - 3m-cold-shrink-quick-insulator-qi-series-demo-sheet.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - r76wg2zfyxi6psttfdxb.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 11579_YSPZCL07HOFK4RBN.pdf(Spec Sheet URL)
- Tech Drawing URL - 11579_6ZG42I19S7UVY5WK.pdf(Tech Drawing URL)
- Features
| Low voltage single conductor insulated cable |
| 1 kV voltage rating |
| Simple hand installation- no tools required |
| No heat source - heat guns or torches - required |
| Accommodates wide range of cable sizes, including street lighting |
| Excellent wet electrical properties |
| Good thermal stability during storage and shipping |
| Seals tight, retains resiliency and pressure, even after years of aging and exposure |
| Resists acids and alkali |
| Water resistant |
| 2 AWG - 750 kcmil (Cu), 2 AWG - 500 kcmil (Al) conductor size |
| 0.4 - 1.45 in cable insulation outer Dia |
