AL XP FITTING- TECK CABLE- 1/2 IN
Armored/Metal Clad Cable Connectors
765539
MFG #: STX050-462
T&B® (Thomas & Betts)
17571.55000
/ ea
- Alternate Catalog Number: 7TBA051140R0016
- Application: For hazardous locations
- ARRA Compliant: C
- Buy American Compliant: C
- Cable Type: JMC/TECK
- Catalog Number: STX050-462
- Color: Red/Silver
- Connection Type: NPT
- Country of Origin: CA
- Currency: USD
- Dimensions: 1.63 in Dia x 2.5 in L
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.2400 lb
- Gross Weight per Pack Metric: 2.18
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 7609000000
- Height: 4.10 in
- Height [Metric]: 10.4140 cm
- Item Group: 05114
- Item Group 2: 051
- Length: 21.60 in
- Length [Metric]: 54.8640 cm
- Returnable: Y
- Series: STX
- Size: 1/2 INCH
- Standard: UL E82038, CSA 23086
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E82038UL File No. E38947CSA 23086CSA 4484CSA File No. LR23086Class I Division 2, Class II Division 2
- Sub Brand: Star Teck
- Type: Teck Cable Fittings
- UNSPSC: 39121311
- UPC 11: 78621090476
- UPC 12: 786210904764
- Width: 8.80 in
- Width [Metric]: 22.3520 cm
- Stock Status: NONSTOCK
- Brand: T&B® (Thomas & Betts)
- Manufacturer: Thomas & Betts
- Cable Openings: 0.525 to 0.65 in
- Material: Aluminum
- Trade Size: 1/2 in
For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.
- Catalog URL - T&B_Fittings_STED075_Catalog_1.pdf(Catalog URL)
- http://www.TNB.com(Seller Home Page URL)
- Install Instructions 1 URL - TA01047-TB2.pdf(Install Instructions 1 URL)

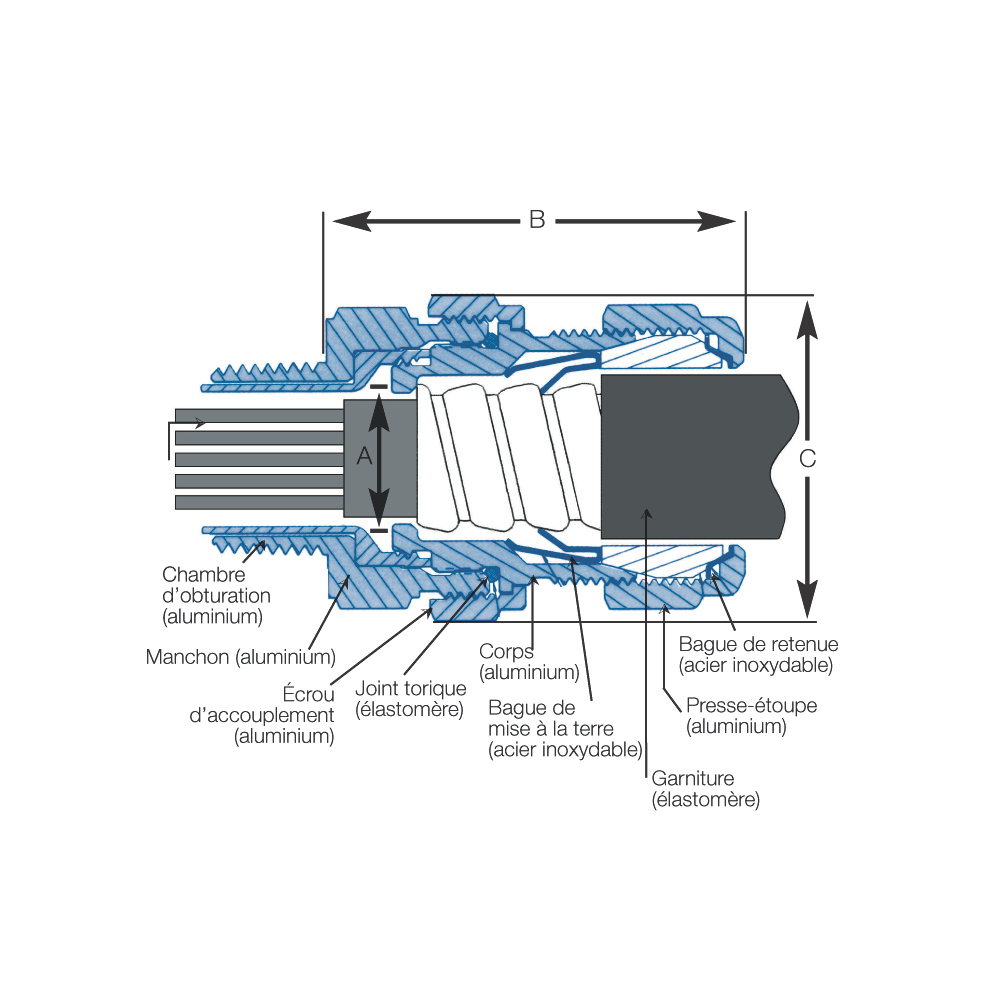

- Line Drawing URL - stx_ca2ld_en(Line Drawing URL)
- ROHS Compliance URL - T&B_STX050_462_RoHS_Sheet.pdf(ROHS Compliance URL)
- Spec Sheet URL - 051_CAT2_E122-3.pdf(Spec Sheet URL)
- Tech Drawing URL - TDS000040.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/QdWn6jpB1fY(Video)
- Applications
- Features
| For Hazardous Locations |
| Sealing chamber is easier to fill, requires less sealing compound, saves time and material |
| Flame path is optimally designed to allow for easy insertion into hub, quick turn lock |
| Union features twist-on action, red color for high visibility |
| Exclusive power grip, provides grip that is high up on cable armor non-magnetic stainless steel power grip grounding ring |
| Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas |
| Low profile gland nut |
| Form a mechanical grip and water and/or oil resistant seal for cord |
| Provide grounding continuity of cable armor |
| 1-1/4 in L strip |
| 300 in-lb gland torque |
| 0.415 to 0.57 in cable range over armor |
| 0.395 in Dia throat without end stop |
